2.0L AWD

  1. Remove ABS power relay. See ABS POWER RELAY  under REMOVAL & INSTALLATION. Disconnect relay connector. Using a DVOM, check for continuity between terminals No. 1 and 3. See Fig 1 . If continuity exists, replace relay.
  2. If no continuity exists, check for continuity between terminals No. 2 and 4. If continuity exists, go to next step. If no continuity exists, replace relay.
  3. Apply battery voltage to terminal No. 2, and ground terminal No. 4. Check for continuity between terminals No. 1 and 3. If continuity exists, relay is okay. If continuity does not exist, replace relay.

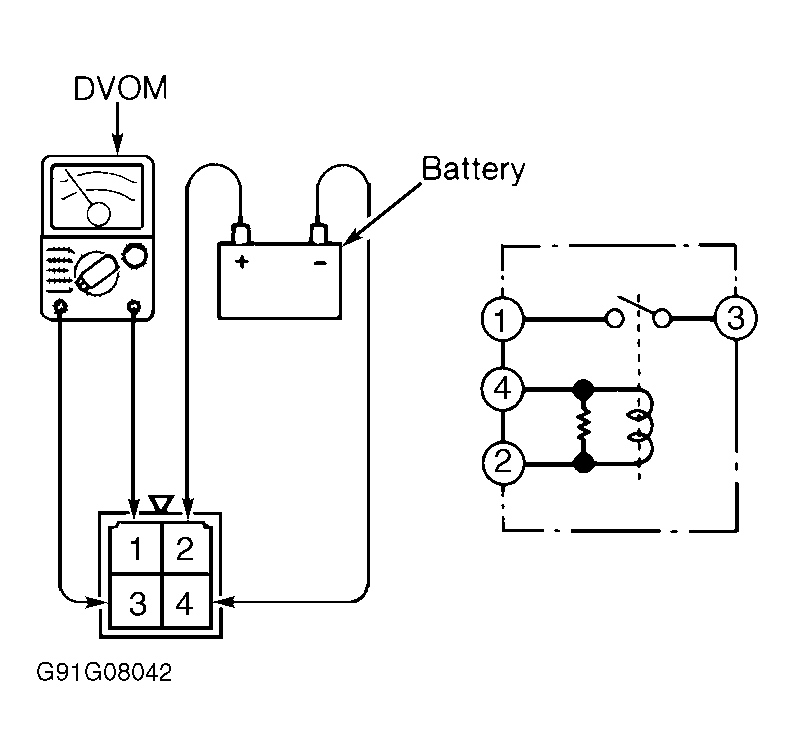

Fig 1: Testing ABS Relay (2.0L AWD)
G91G08042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
