Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

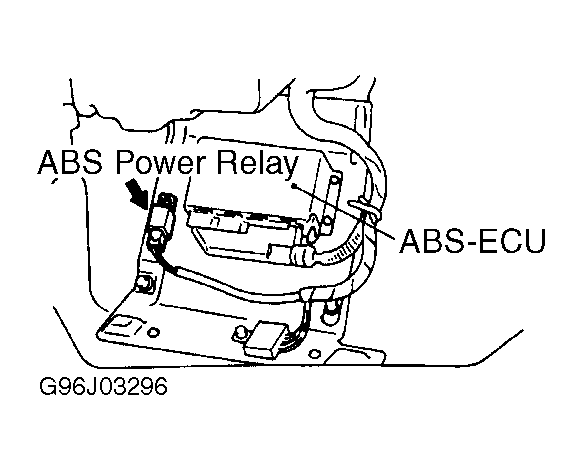

| ABS ECU | Behind left side of glove box. See Figure . |

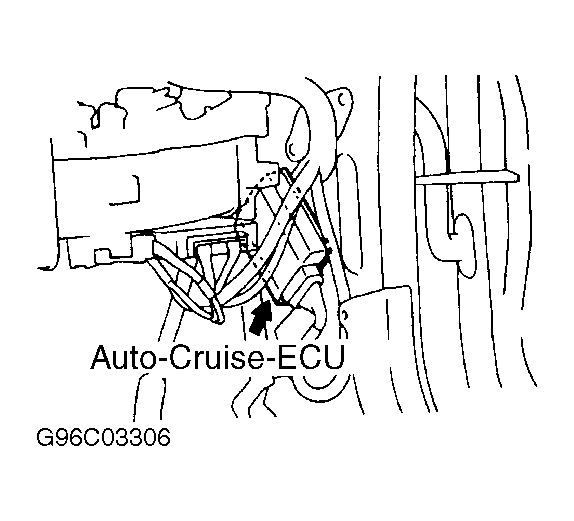

| Auto-Cruise-ECU | Behind right side of glove box. See Figure . |

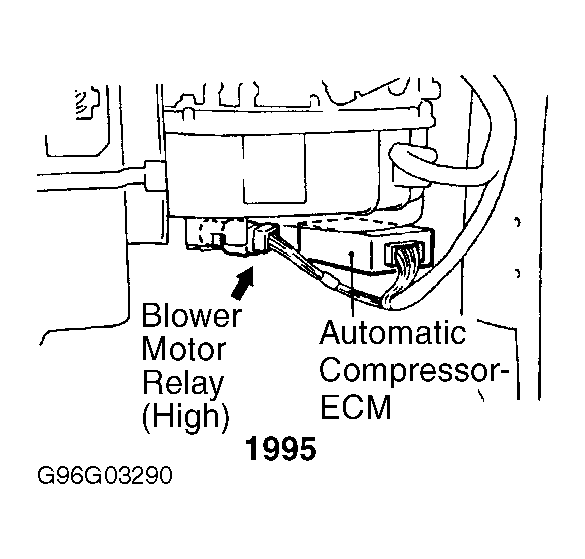

| Automatic Compressor-ECM (1995) | Behind glove box. See Figure . |

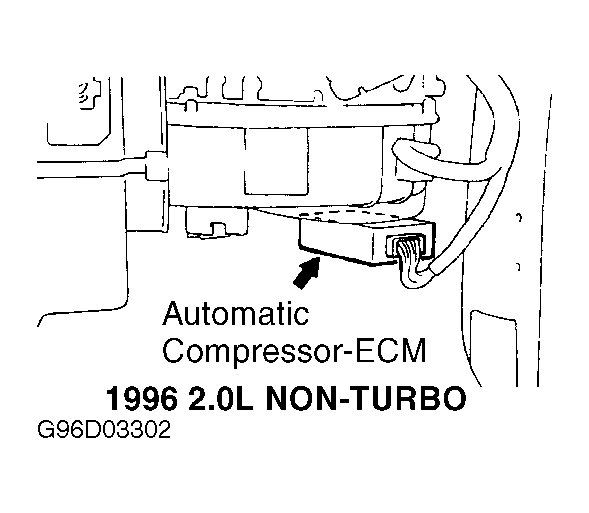

| Automatic Compressor-ECM (1996 2.0L Non-Turbo) | Behind glove box. See Figure . |

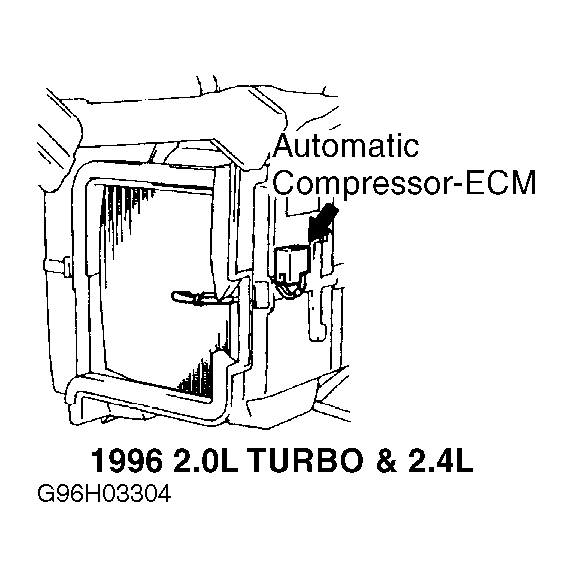

| Automatic Compressor-ECM (1996 2.0L Turbo & 2.4L) | Behind left side of glove box. See Figure . |

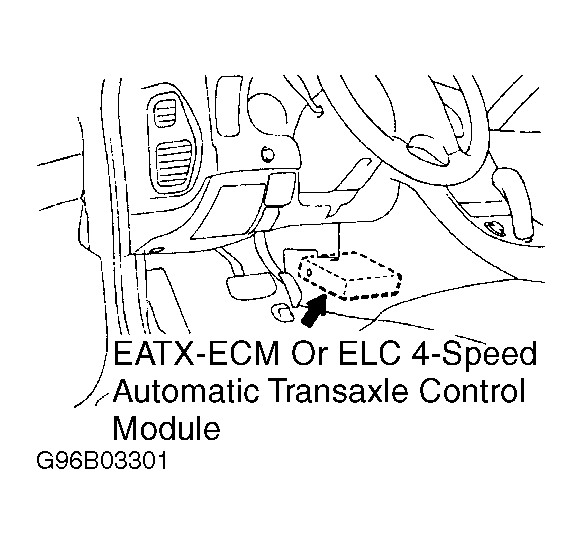

| ELC 4-Speed Automatic Transaxle Control Module (2.0L Turbo & 2.4L) | Behind center of dash. See Figure . |
| Engine Control Module (1995 2.0L Non-Turbo) | Left side of engine compartment. See Figure . |

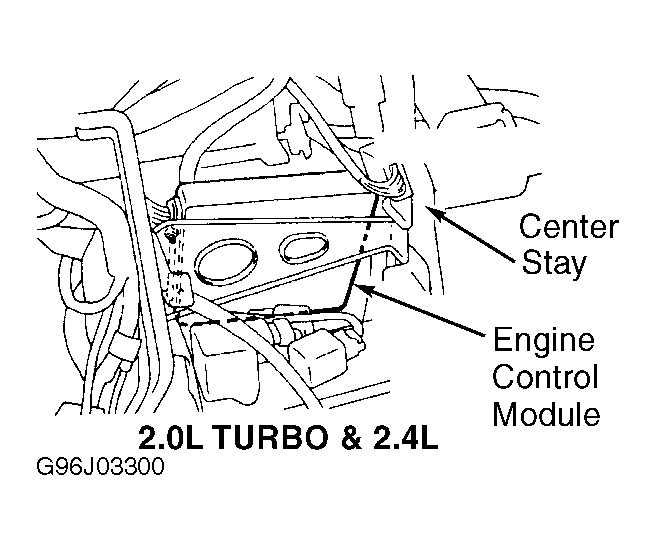

| Engine Control Module (2.0L Turbo & 2.4L) | Behind center of dash. See Figure . |

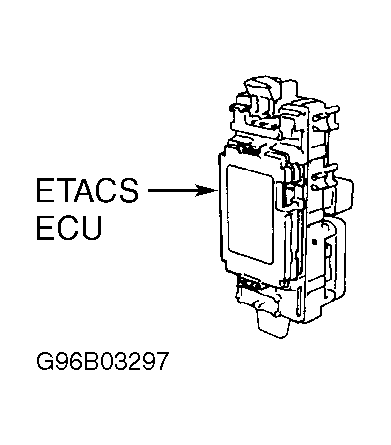

| ETACS-ECU | Behind left side of dash, on passenger compartment fuse/relay box. See Figure . |
| EATX-ECM (1995 2.0L Non-Turbo) | Left side of engine compartment. See Figure . |
| EATX-ECM (1996 2.0L Non-Turbo) | Behind center of dash. See Figure . |

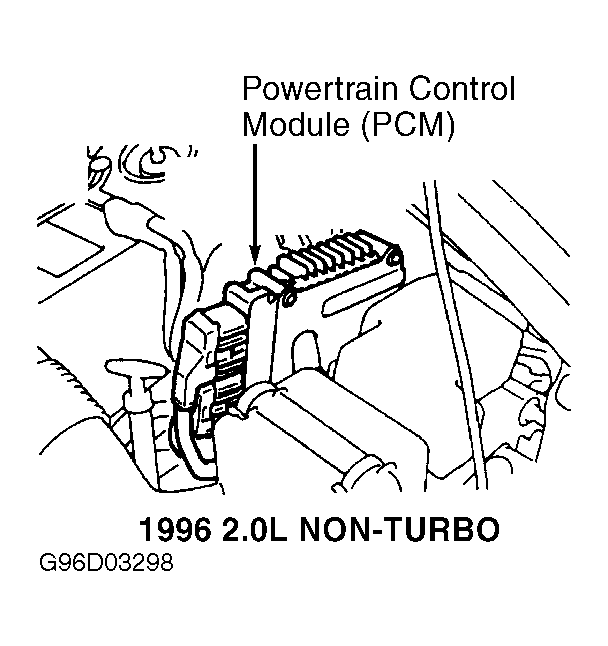

| Powertrain Control Module (PCM) (1996 2.0L Non-Turbo) | Left side of engine compartment. See Figure . |
| SRS Diagnostic Unit (1995) | Below front of console. |

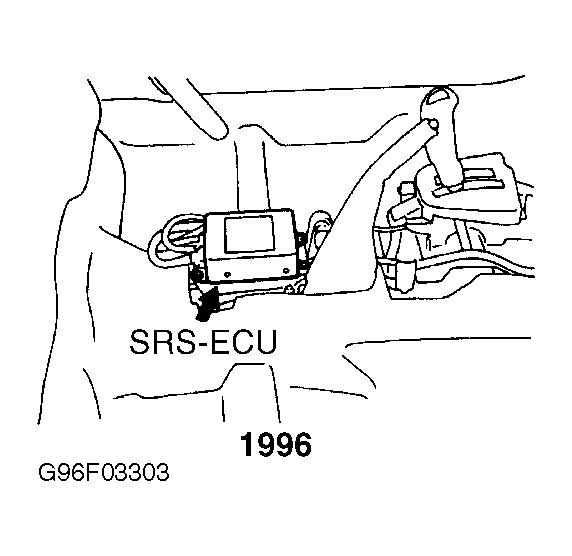

| SRS-ECU (1996) | Below front of console. See Figure . |

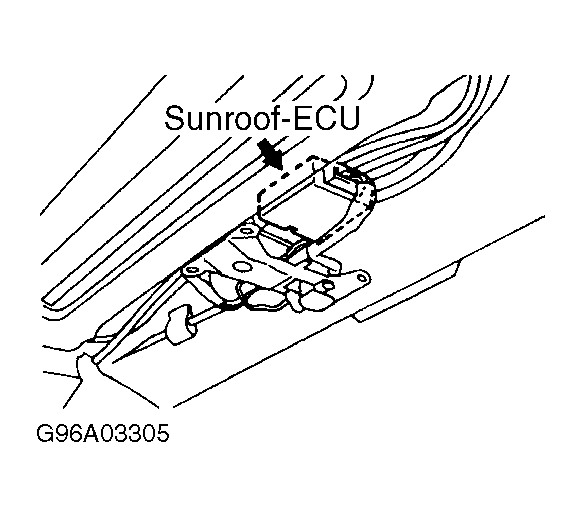

| Sunroof-ECU | Center of windshield header. See Figure . |
