Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

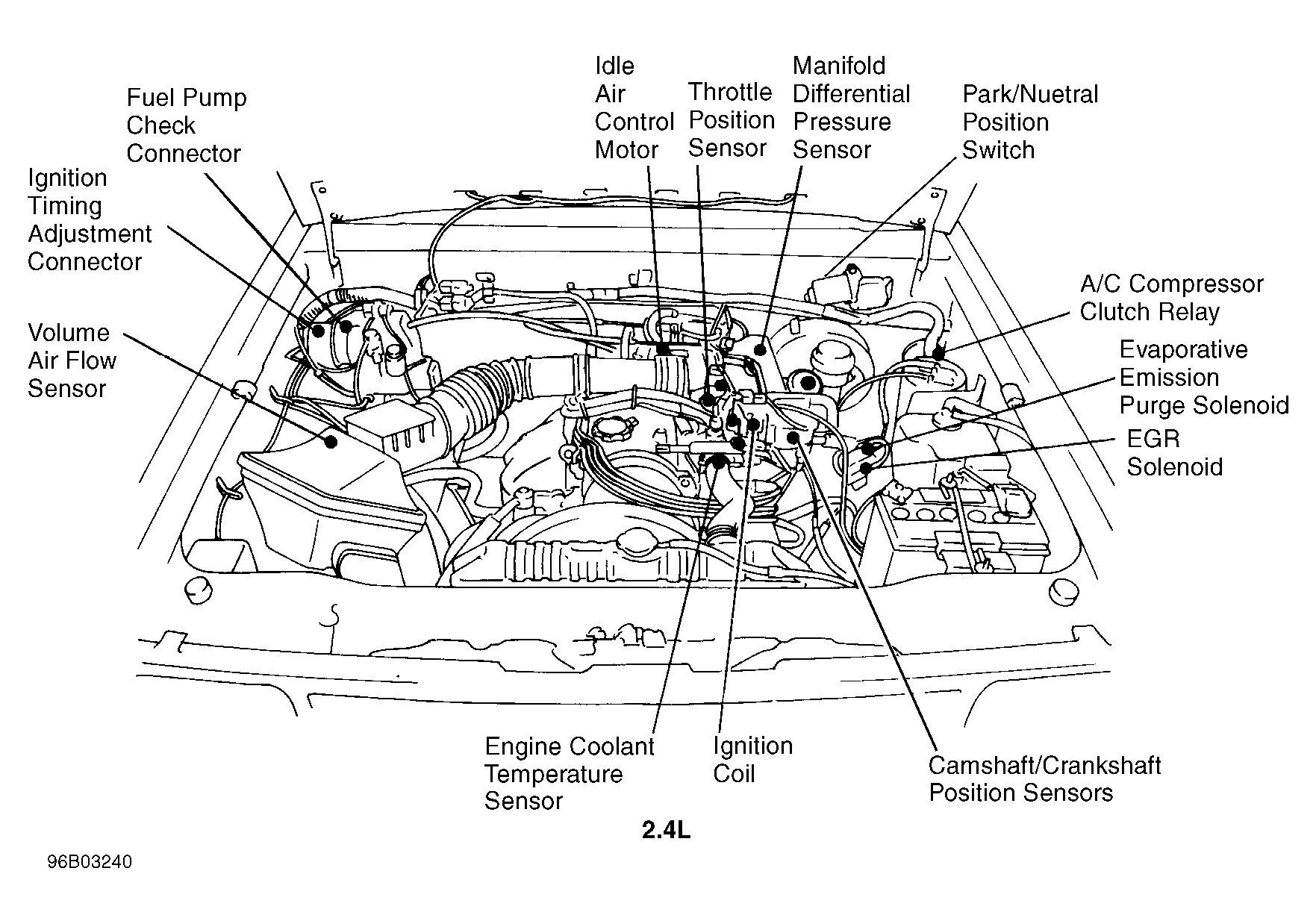

Fig 1: Engine Compartment (2.4L)

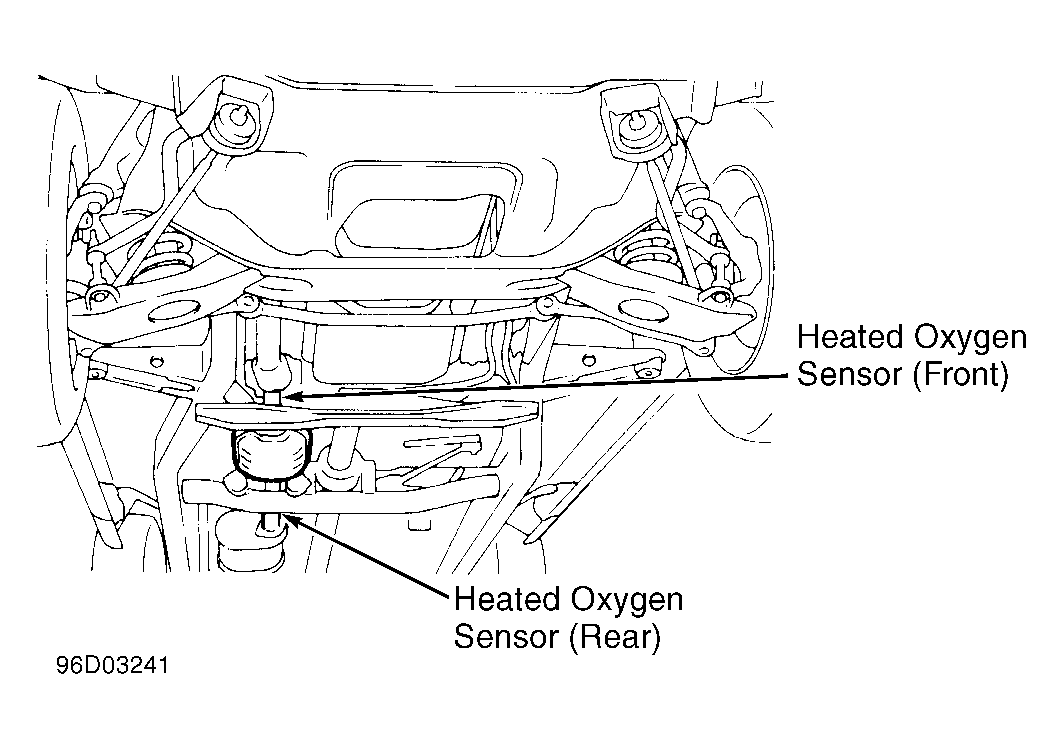

Fig 2: Under Side Of Vehicle

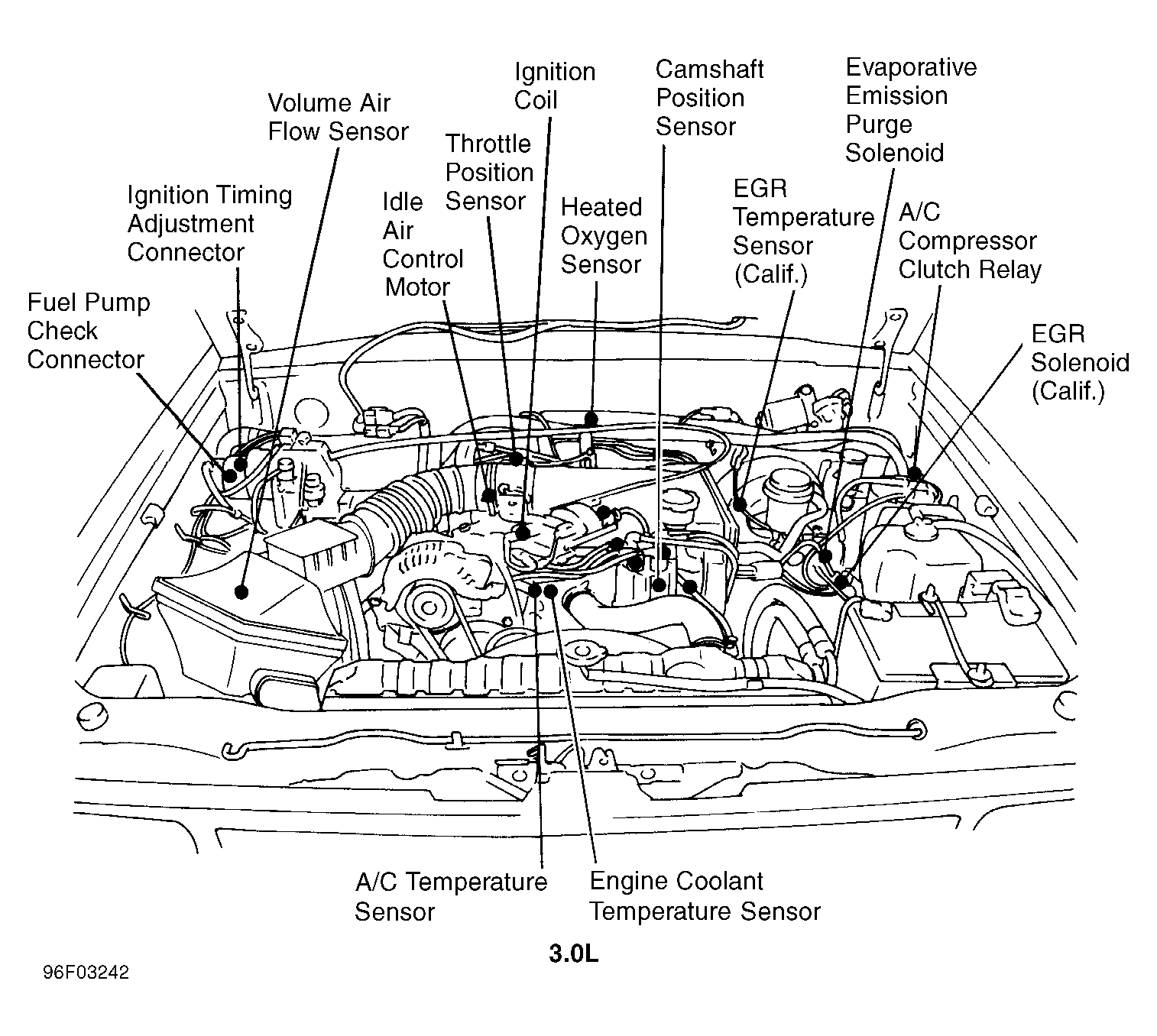

Fig 3: Engine Compartment (3.0L)

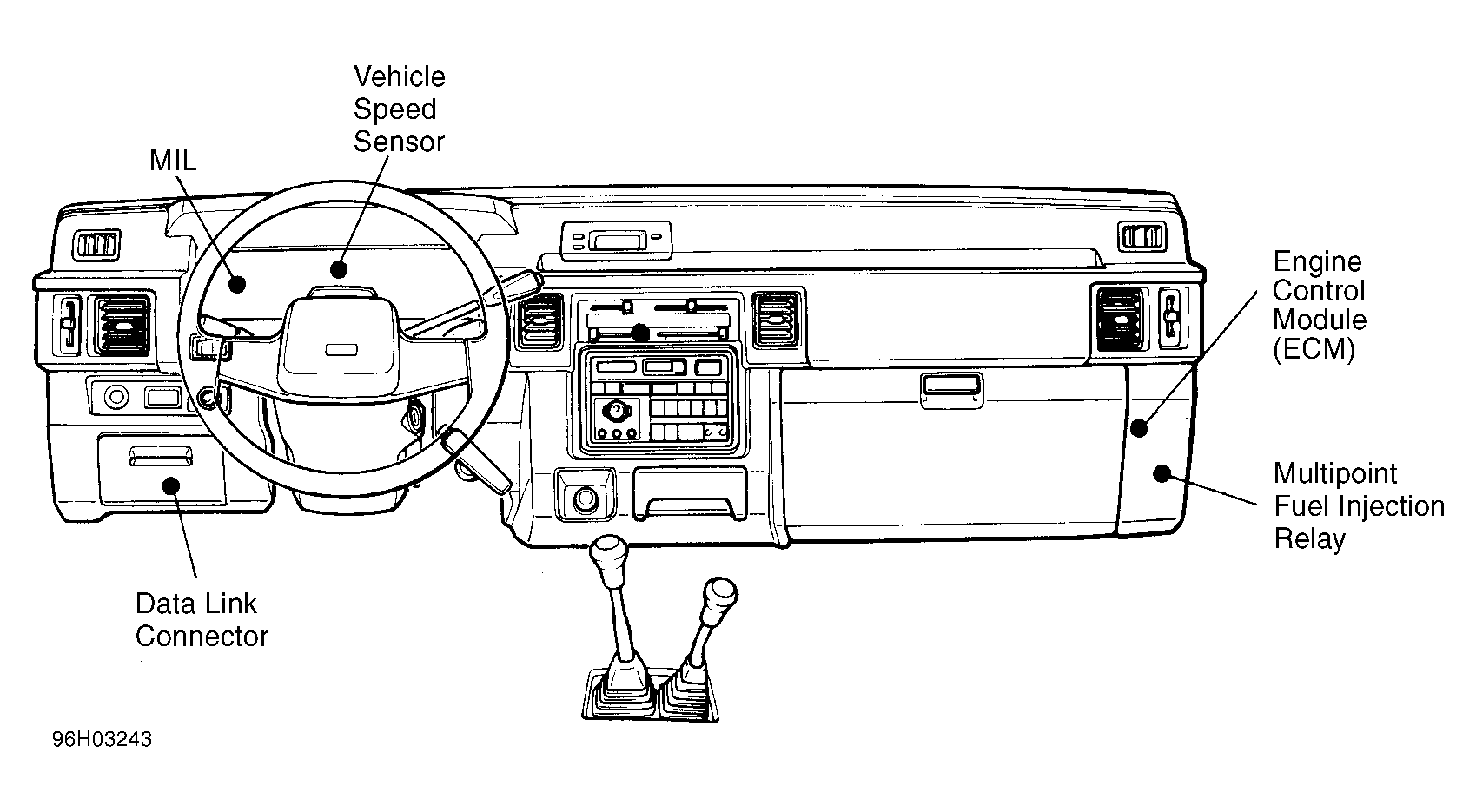

Fig 4: Dash
