Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

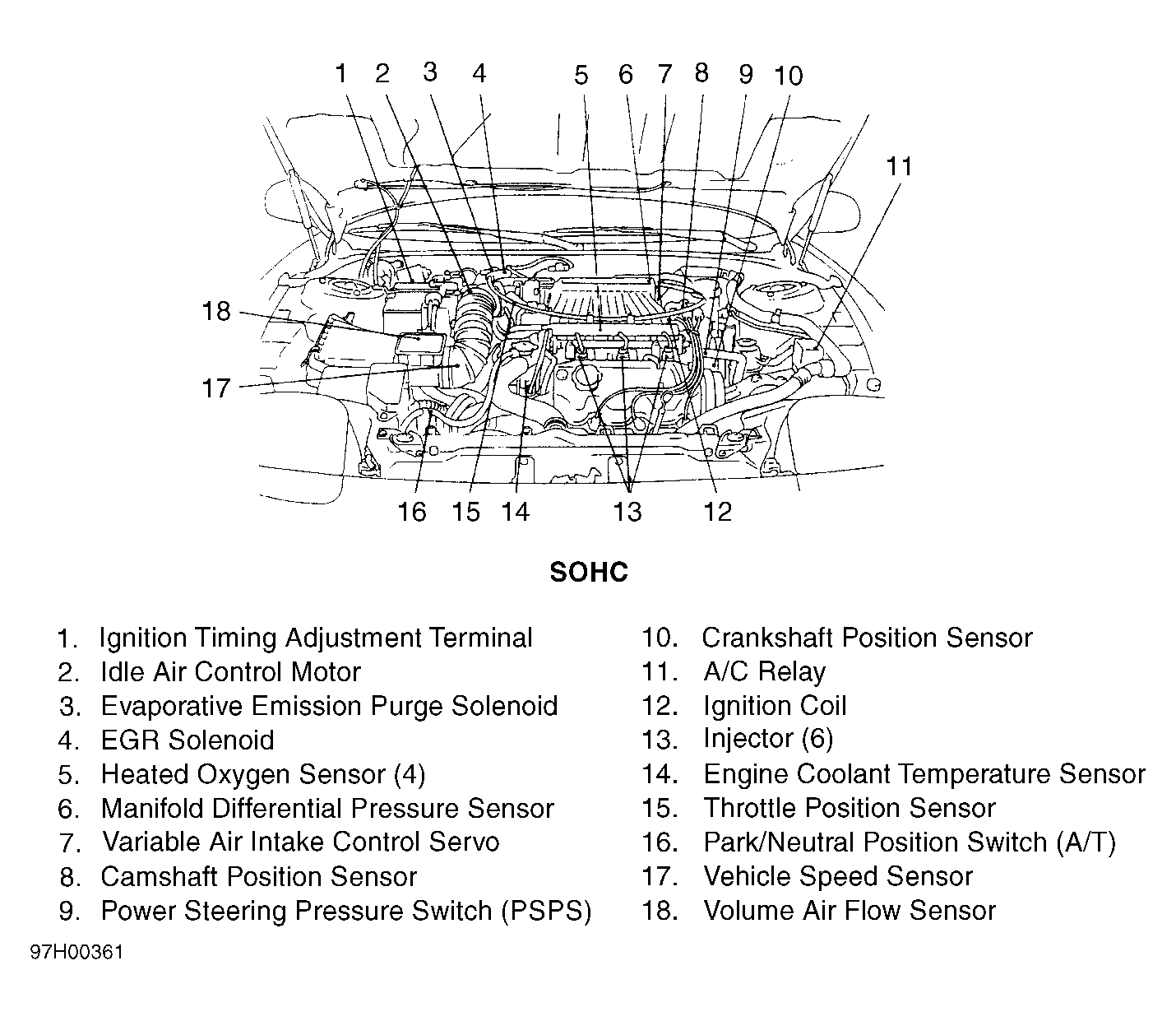

Fig 1: Component Locations (1 Of 3)

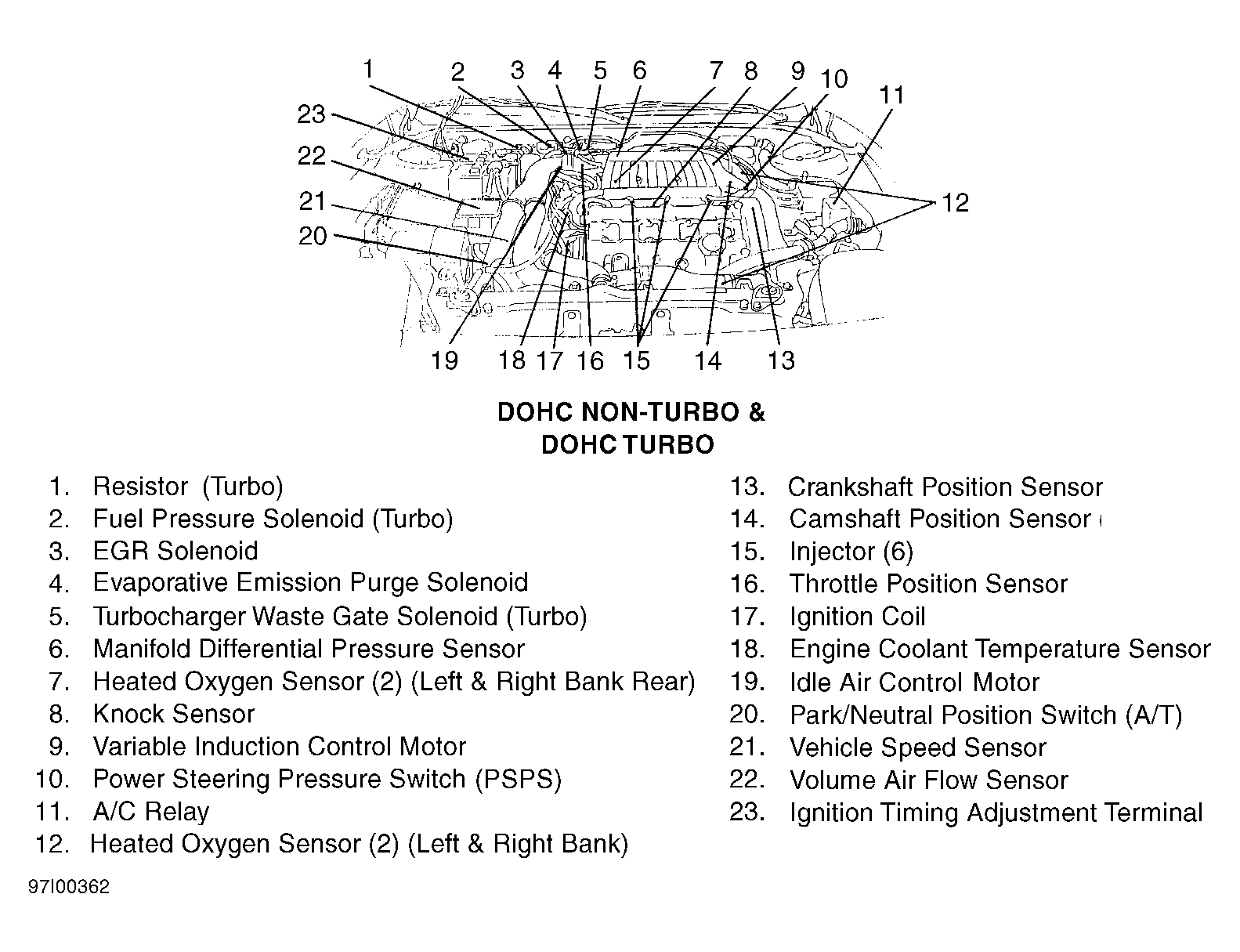

Fig 2: Component Locations (2 Of 3)

Fig 3: Component Locations (3 Of 3)

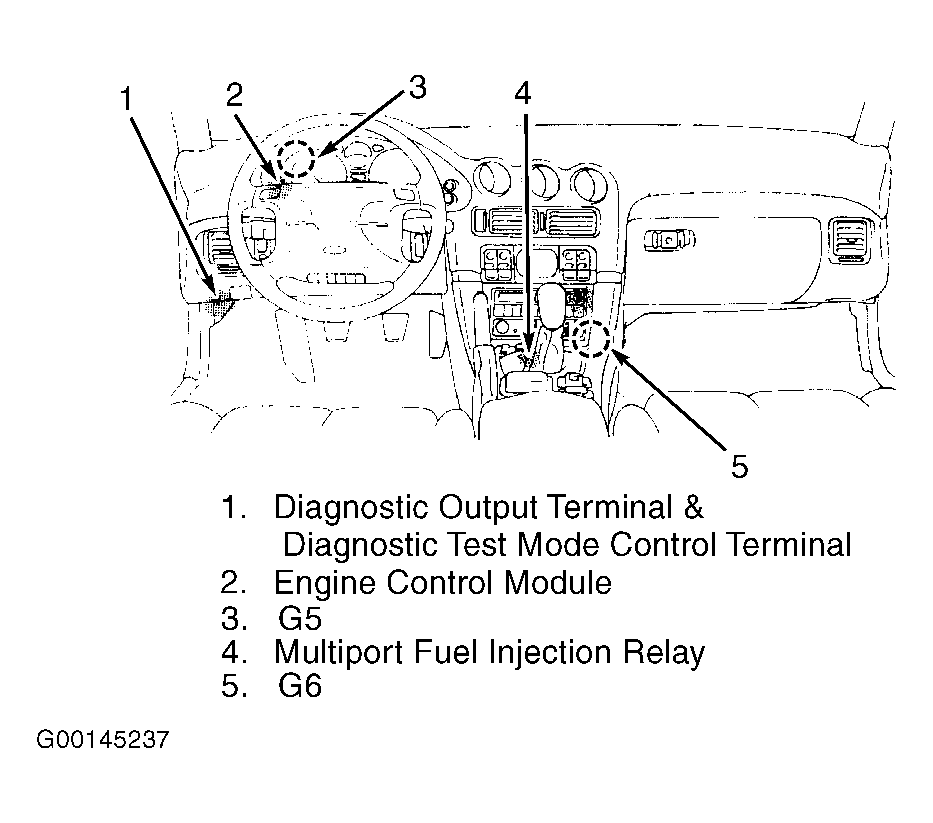

Fig 4: Dash Component Locations

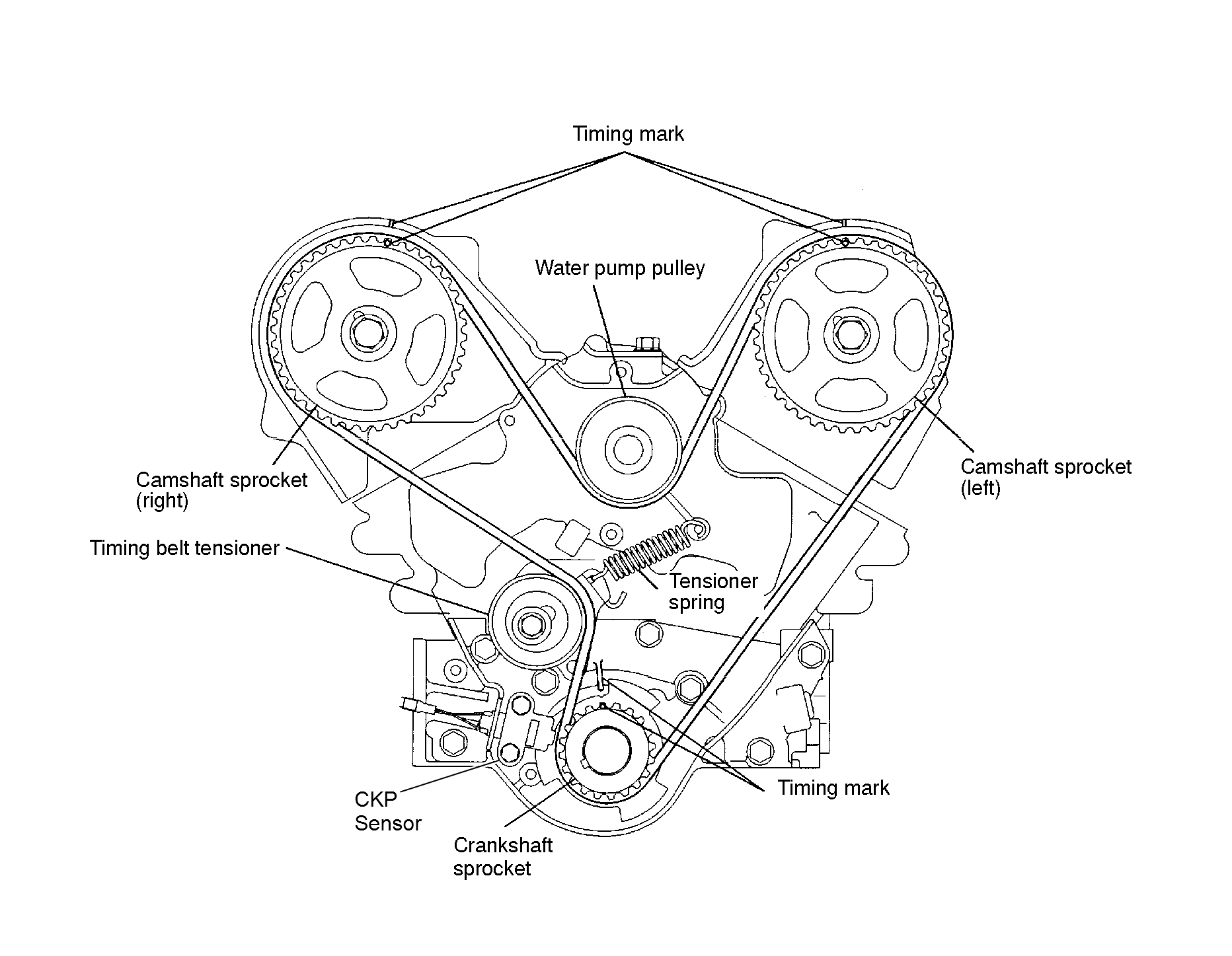

Fig 5: Locating Crankshaft Position Sensor (3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

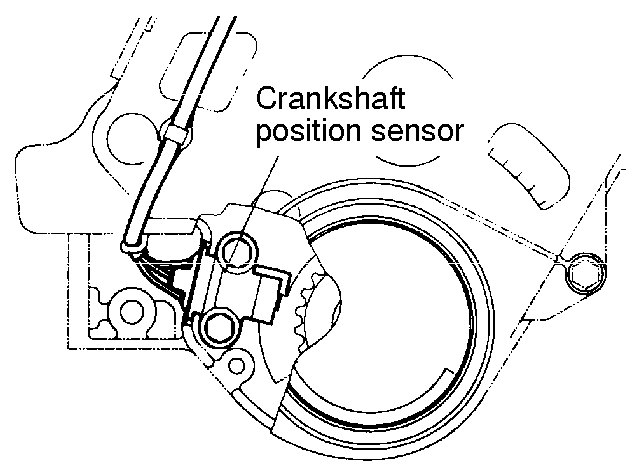

Fig 6: Identifying Crankshaft Position Sensor (3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
