Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Lock Controller | Behind glove compartment. |
| A/C Control Unit | Behind center console. |
| ABS Control Unit | Behind right rear quarter panel. |
| Auto-Cruise Control Unit | Behind right side kick panel. |
| ELC-4 A/T Control Module | Behind center console. |

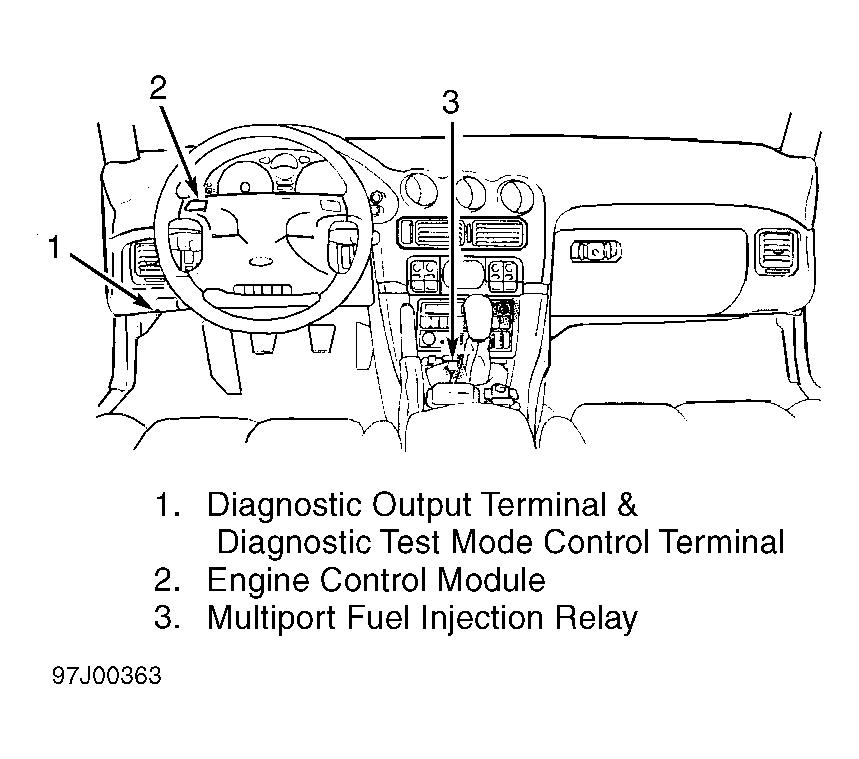

| Engine Control Module | Behind center console. See Figure. |
| ETACS Control Unit | Under left side of dash. |
| Keyless Entry Control Unit | Behind left rear quarter panel. |
| Lamp Automatic Shut-Off Unit | Behind left rear quarter panel. |
| Motor Antenna Control Unit | Behind left rear quarter panel. |
| SRS ECU | Under center console, between front seats. |
| Sunroof Control Unit | On rear underside of ceiling. |
