Shift Lock Cable: 3000GT

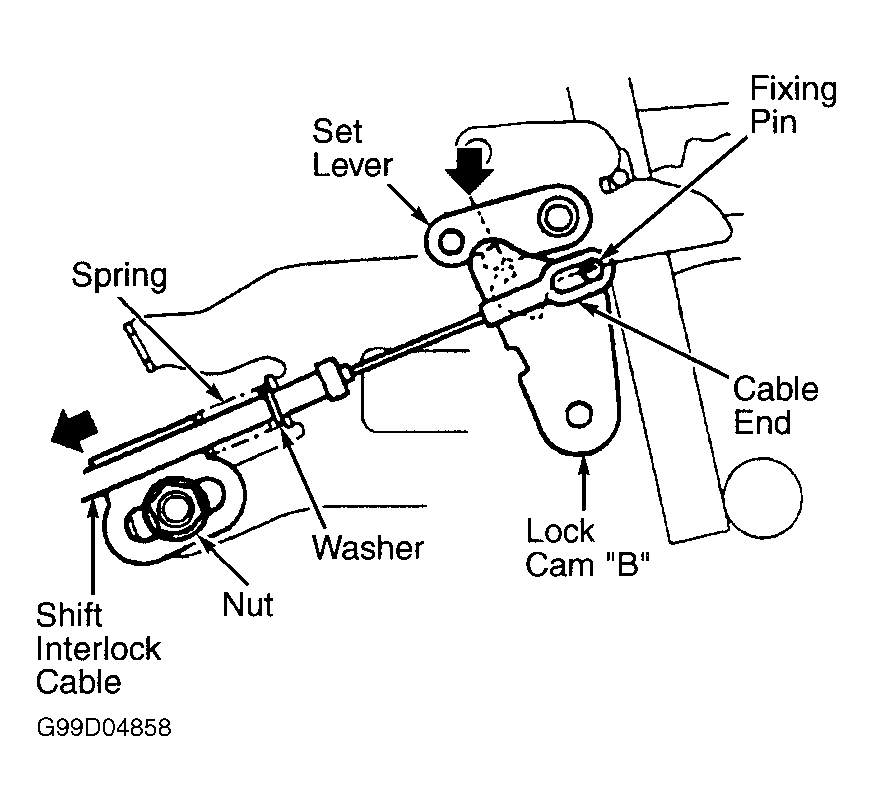

Remove front console assembly. Move selector lever to "P". Loosen nuts securing shift lock cable and remove washer and cotter pin at cable end. Turn lock cam counterclockwise to move set lever upward. Fit cutout in set lever on pin of lock cam "B". Gently press set lever down while pushing cable to take up slack. See Fig 1. Tighten nut to specifications to secure cable. See TORQUE SPECIFICATIONS . Ensure that cable end contacts pin on lock cam, then install washer and cotter pin.
