Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

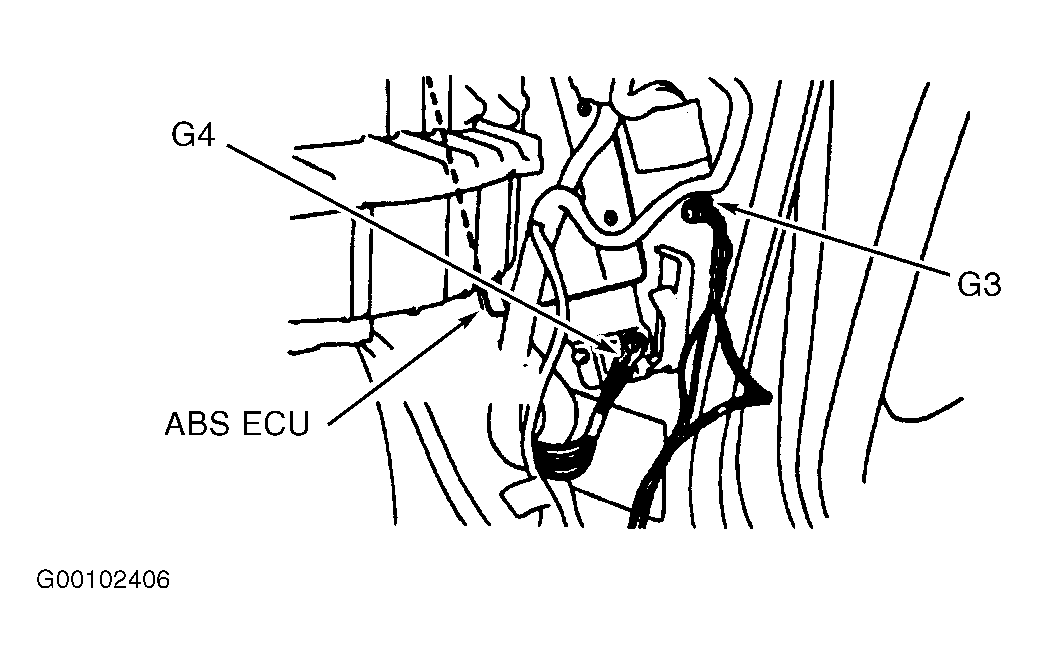

| ABS ECU | Under right side of dash. See Figure . |
| Automatic Compressor ECU | Under right side of dash, on front evaporator case. |

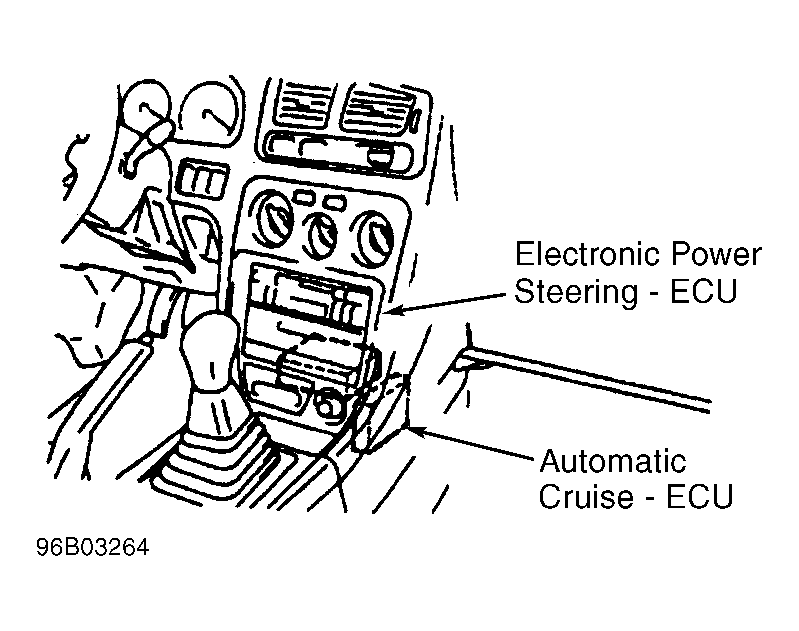

| Automatic Cruise ECU | Behind center console. See Figure . |

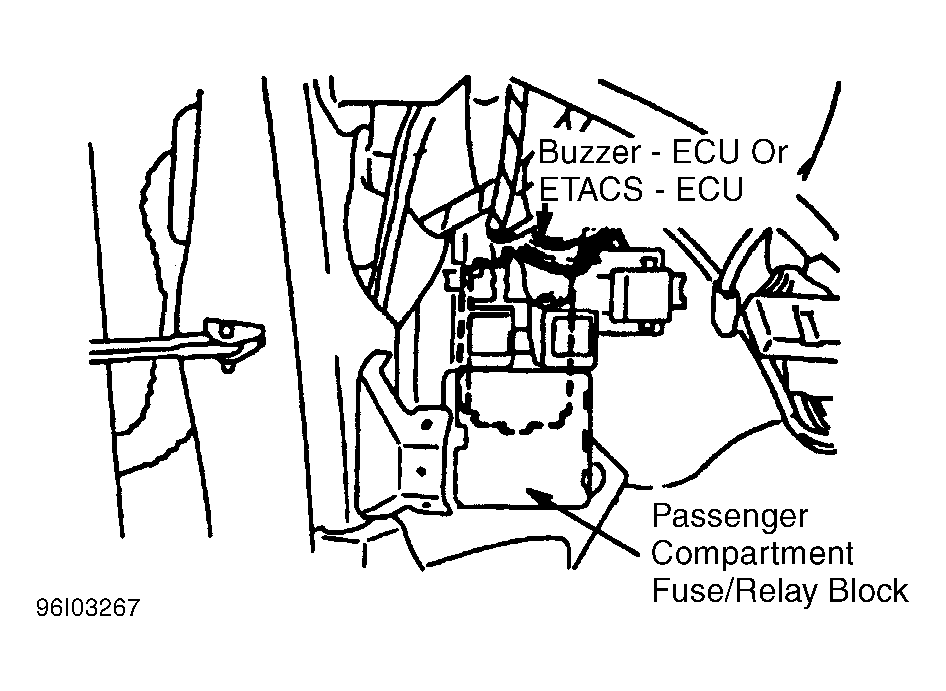

| Buzzer ECU | Behind left side of dash. See Figure . |
| Door Lock ECU | In power window switch assembly, in driver's door. |

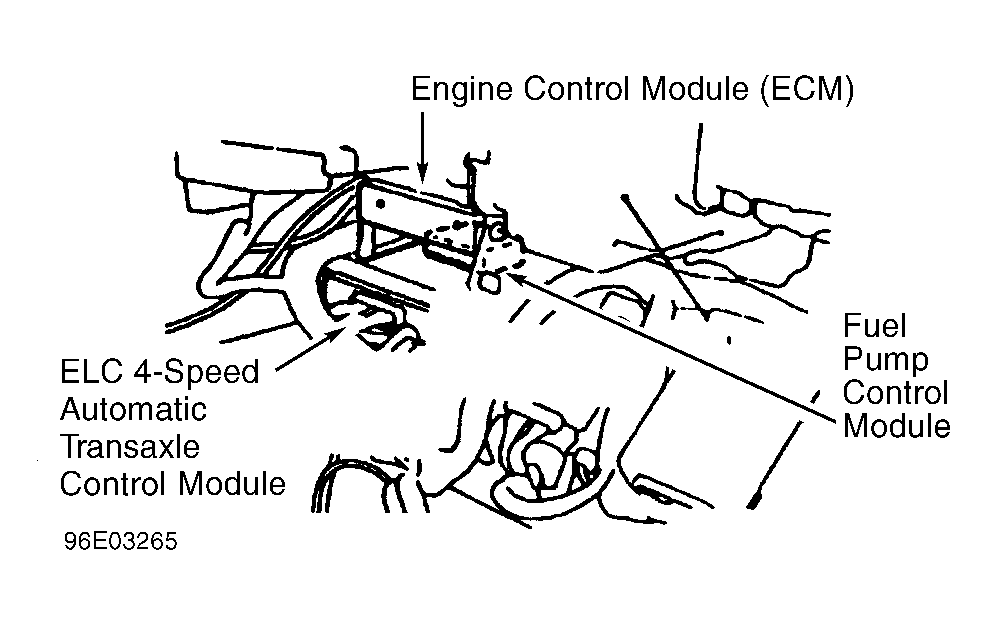

| ELC 4-Speed Automatic Transaxle Control Module | Behind center console. See Figure . |
| Electronic Power Steering ECU | Behind center console. See Figure . |
| Engine Control Module (ECM) | Behind center console. See Figure . |
| ETACS ECU | Behind left side of dash. See Figure . |
| Fuel Pump Control Module | Behind center console. See Figure . |

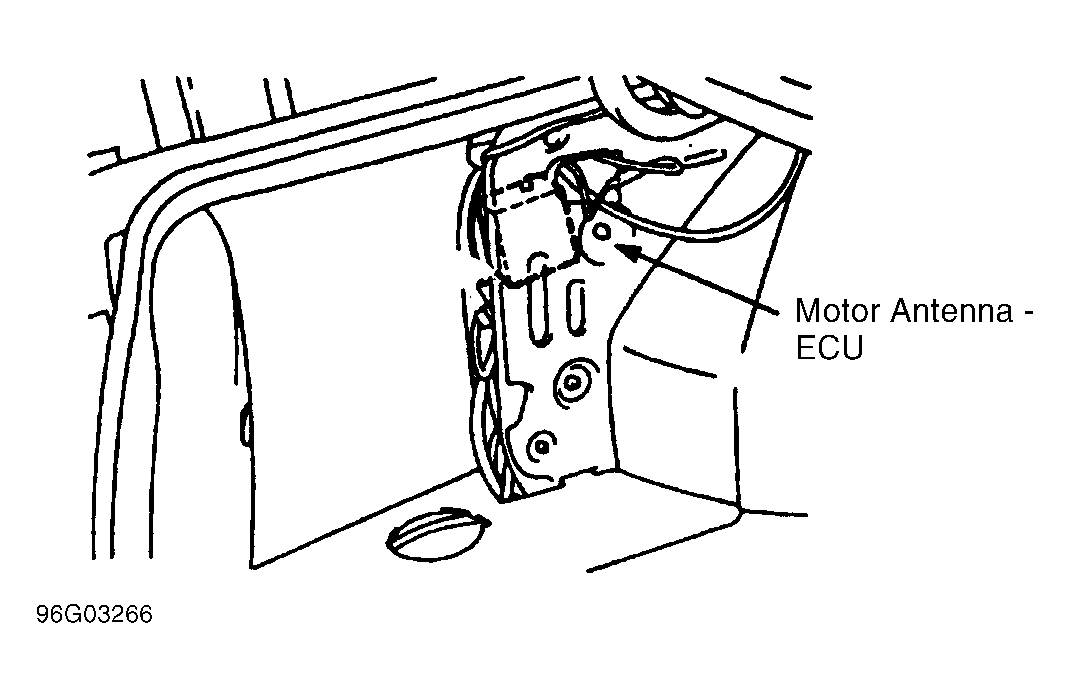

| Motor Antenna ECU | Behind left side of luggage compartment. See Figure . |
| Power Window ECU | In power window switch assembly, in driver's door. |
| SRS ECU | Inside floor console. See Figure . |
| Sunroof ECU | Center of windshield header. |
