Home >> Mitsubishi >> 1997 >> Galant LS >> Repair and Diagnosis >> Engine Performance >> Engine Controls - Specifications >> Ignition System >> Firing Order

Firing Order

WARNING: On many models, improper arrangement of spark plug wires will cause miss firing and surge during high-speed operation. Ensure spark plug wires are routed as shown.

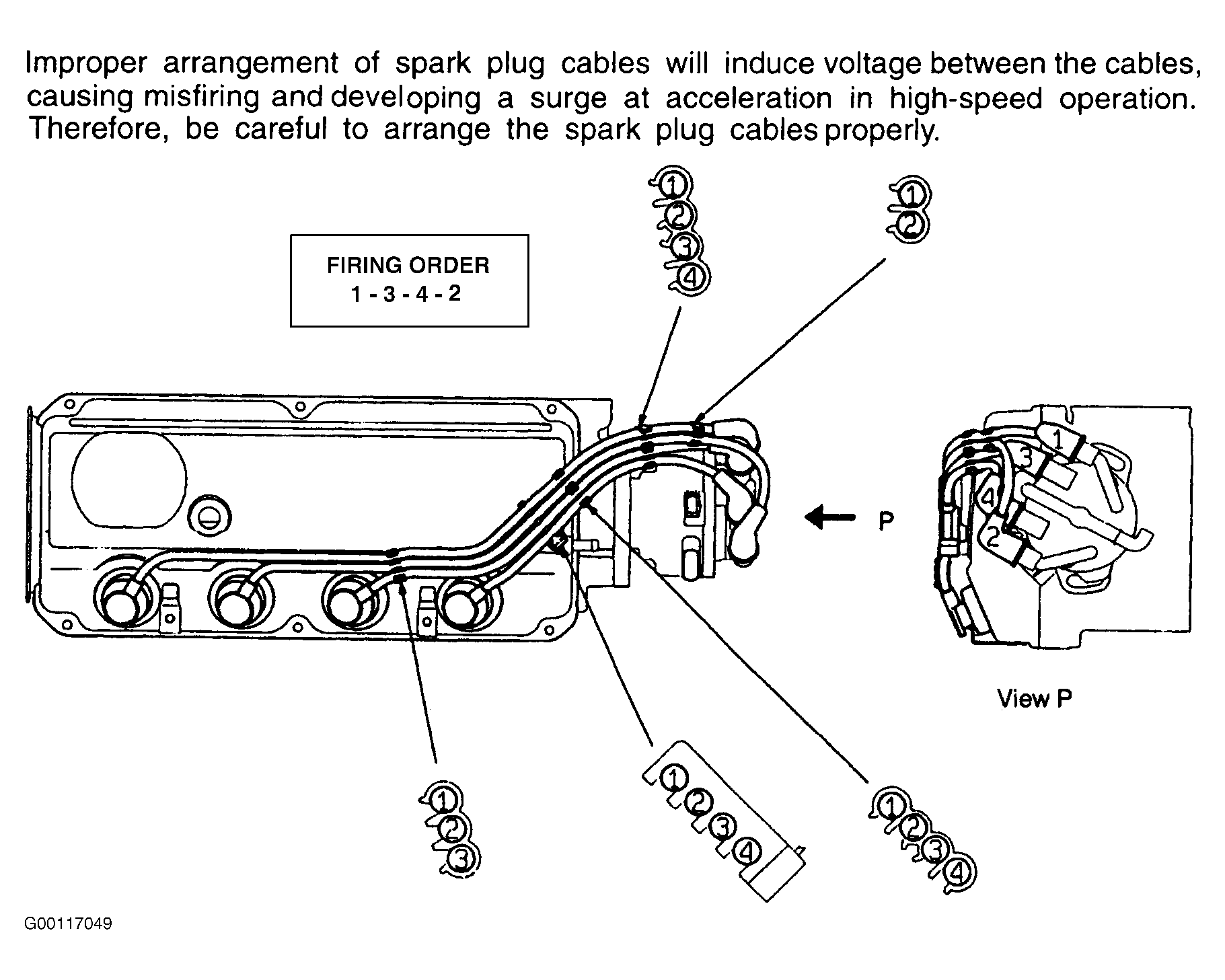

Fig 1: Firing Order & Plug Wire Routing (2.4L)
G00117049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
