Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Mounted on top of right rear wheelwell, under metal plate. |

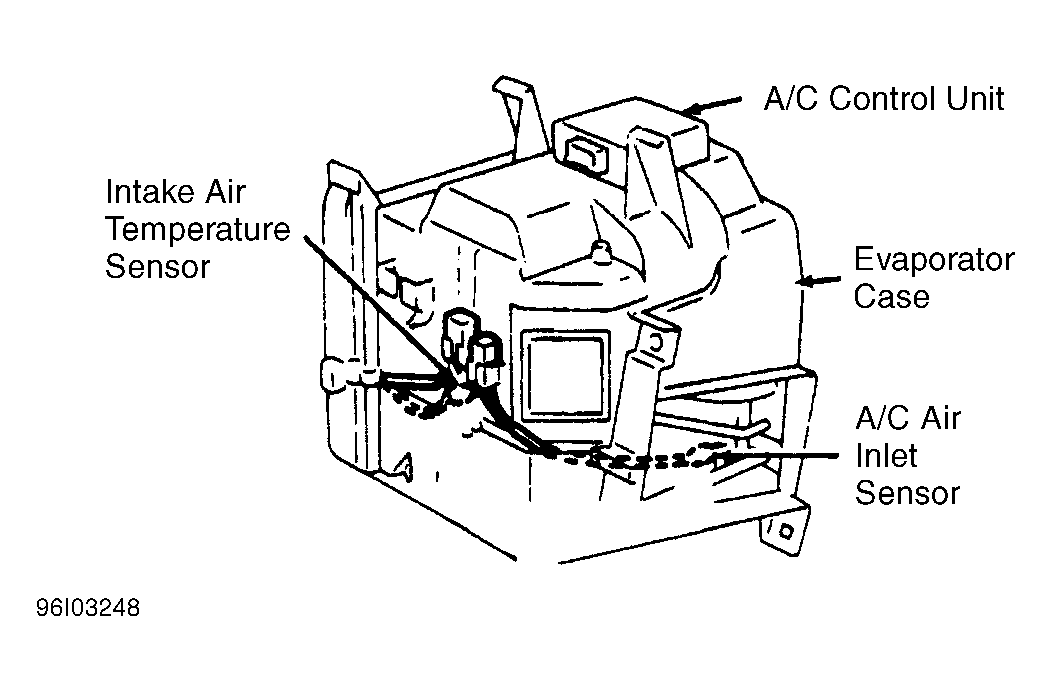

| A/C Control Unit | On top of evaporator case. See Figure . |
| Cruise Control Unit | Behind center console. |
| Door Lock Control Unit | Behind left side of dash. |
| ELC 4-Speed A/T Control Module | Behind left side of dash. |
| Engine Control Module (ECM) | Behind right kick panel. |
| Keyless Entry Control Unit | Behind right side quarter panel. |
| Motor Antenna Control Unit | Behind center console. |
| Rear Differential Lock Control Unit | Mounted on top of rear right wheelwell, under metal plate. |
| SRS Air Bag Control Unit | Behind center console. |
| Sun Roof Control Unit | On center of roof, behind sun roof. |
| Variable Shock Absorber Control Unit | Behind left rear wheelwell, behind quarter panel. |
| 4WD Indicator Control Unit | Behind center of dash. |
