Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

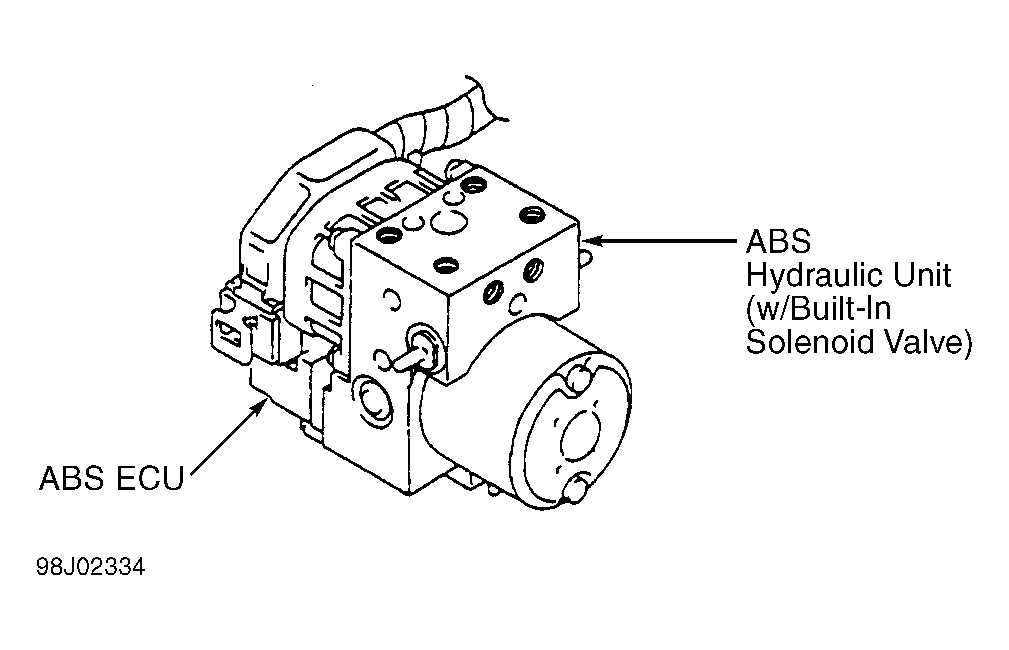

| ABS ECU | Left front corner of engine compartment, on hydraulic unit. See Figure. |
| Auto-Cruise ECU | Behind right side of glove box. See Figure. |
| Automatic Compressor ECM (2.0L Non-Turbo) | Behind right side of dash. See Figure. |
| Automatic Compressor ECM (2.0L Turbo & 2.4L) | Behind left side of glove box. See Figure. |
| Convertible Top Control Module | In front of luggage compartment. See Figure. |
| EATX-ECM (2.0L Non-Turbo) | Behind center of dash. See Figure. |
| ELC 4-Speed Automatic Transaxle Control Module (2.0L Turbo & 2.4L) | Behind center of dash. See Figure. |
| Engine Control Module (2.0L Turbo & 2.4L) | Behind center of dash. See Figure. |
| ETACS ECU | Behind left side of dash, on junction block. See Figure. |
| Fuel Pump Relay Module (2.4L) | Behind center console. See Figure. |
| Powertrain Control Module (PCM) (2.0L Non-Turbo) | Left side of engine compartment. See Figure. |
| Receiver (Convertible) | In front of luggage compartment. See Figure. |
| Receiver (Coupe) | Behind left rear quarterpanel trim. See Figure. |
| SRS ECU | Below front of console. See Figure. |

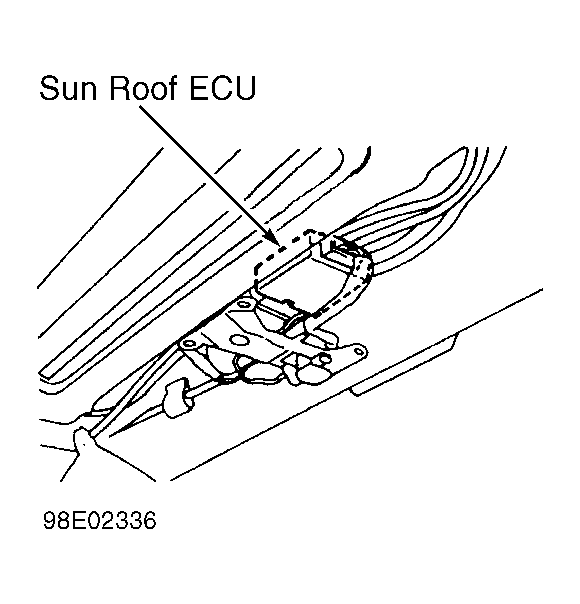

| Sun Roof ECU | Center of windshield header. See Figure. |
