Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

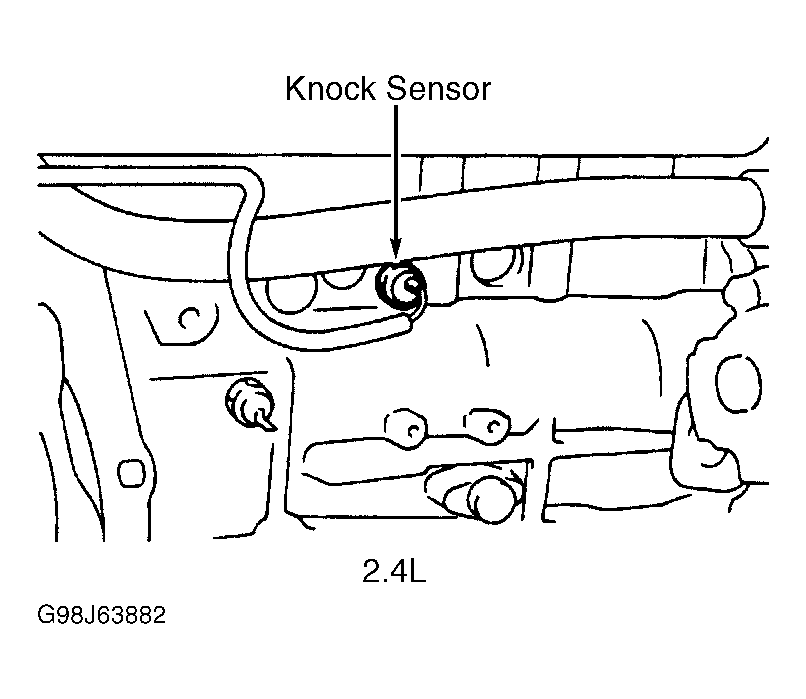

Fig 1: Side Of Engine Block (2.4L)

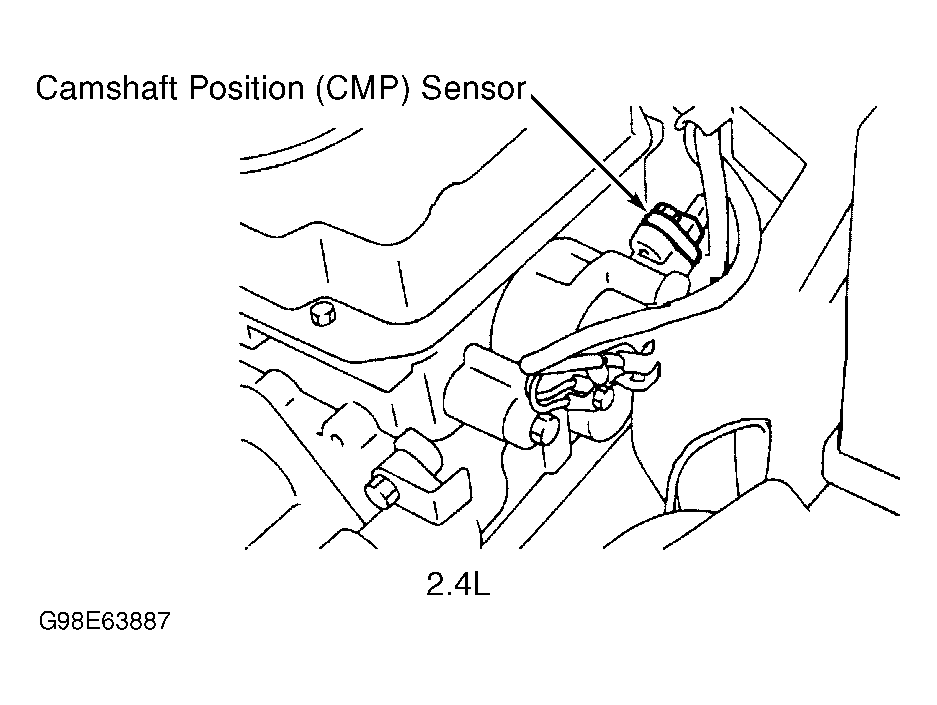

Fig 2: Rear Of Engine (2.4L)

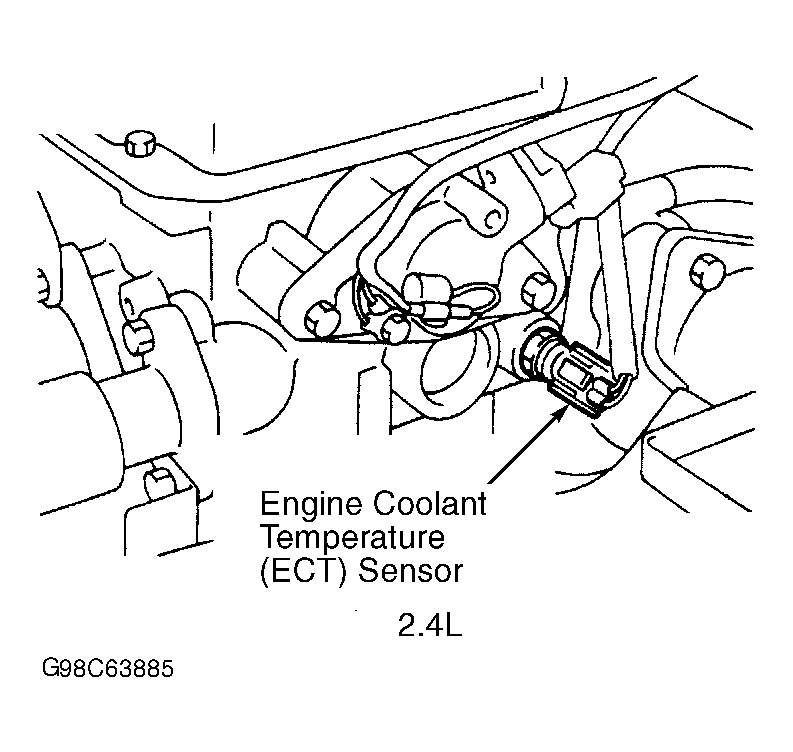

Fig 3: Right Front Of Engine (2.4L)

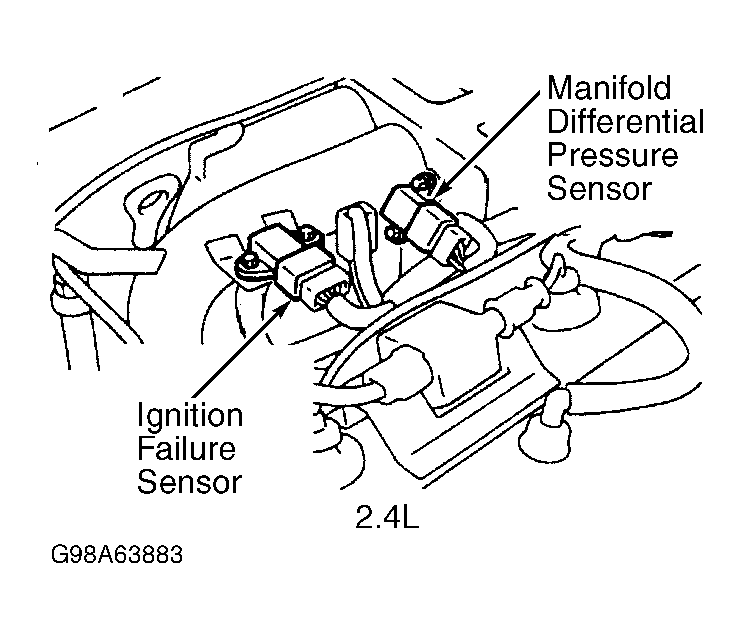

Fig 4: Center Of Engine (2.4L)

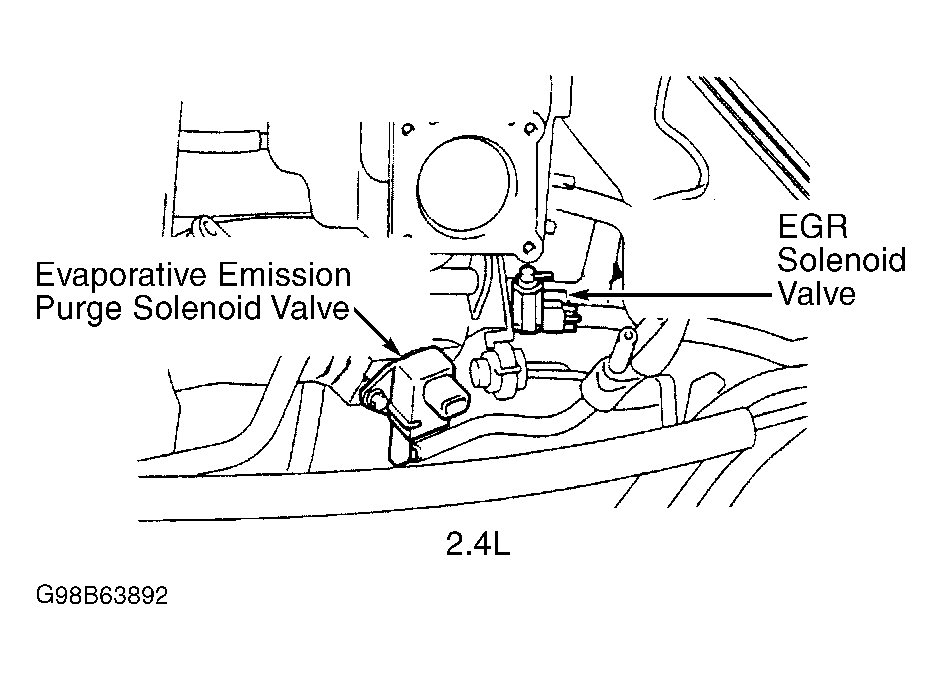

Fig 5: Rear Of Engine (2.4L)

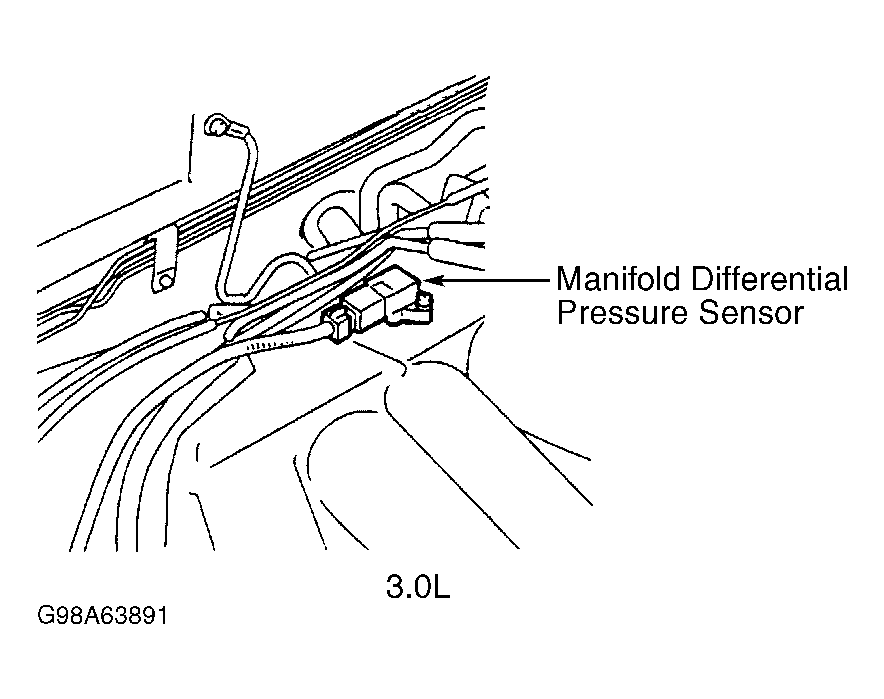

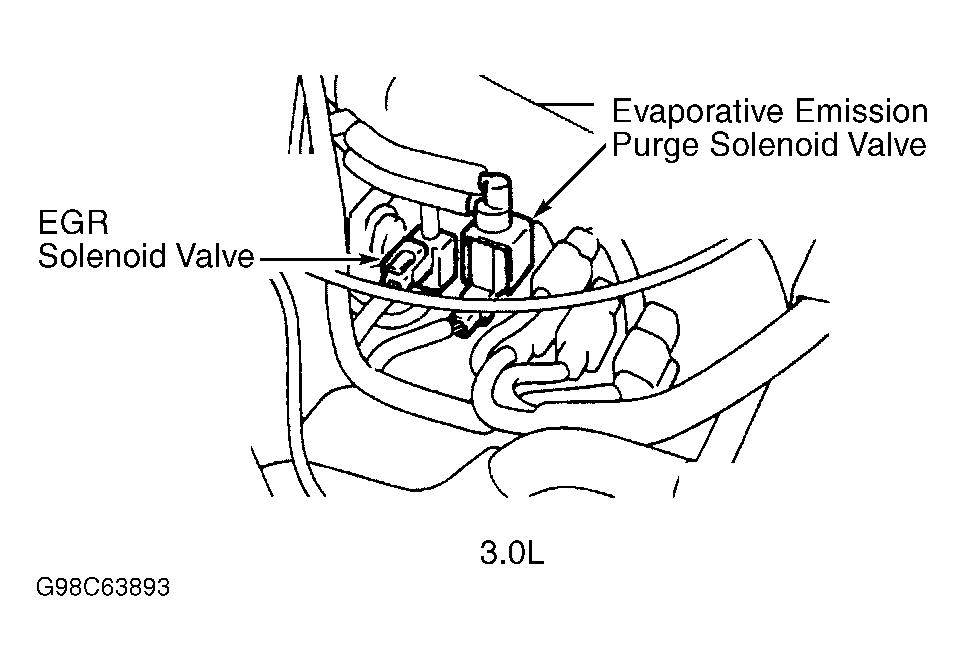

Fig 6: Top Center Of Engine (3.0L)

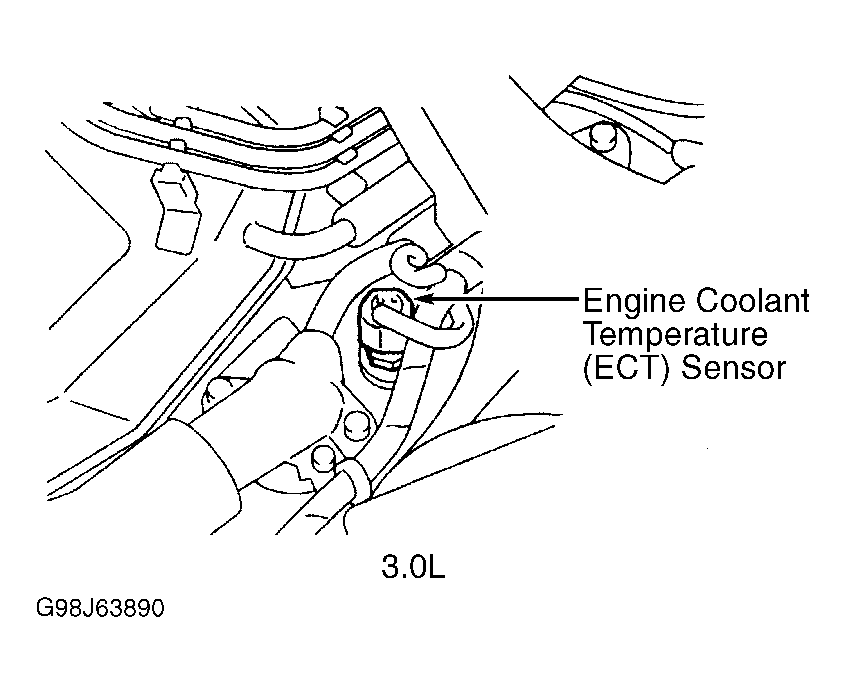

Fig 7: Rear Of Engine (3.0L)

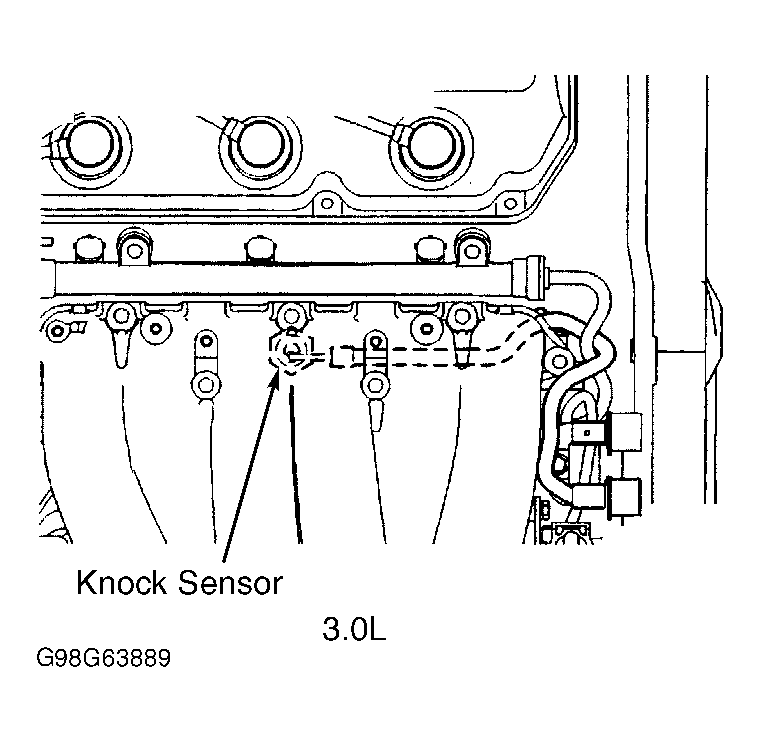

Fig 8: Right Side Of Intake Manifold

Fig 9: Right Rear Of Engine Compartment (3.0L)

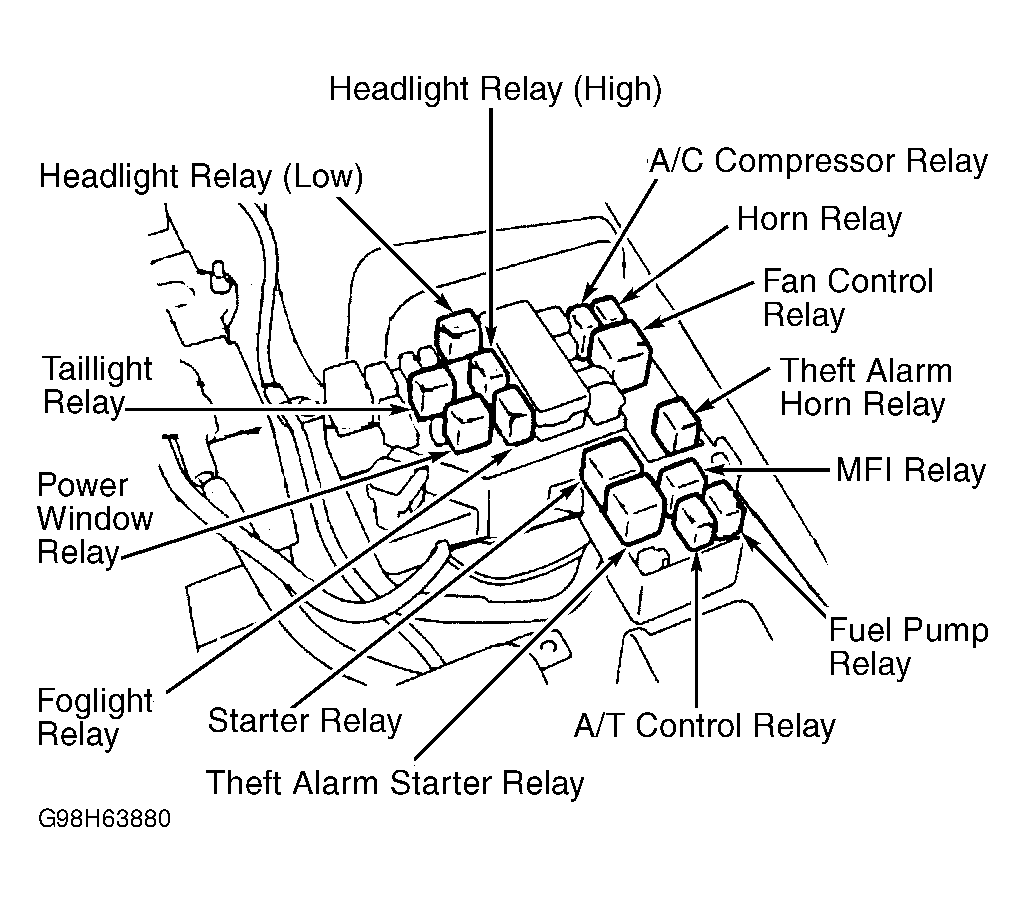

Fig 10: Let Side Of Engine Compartment

Fig 11: Left End Of Dash

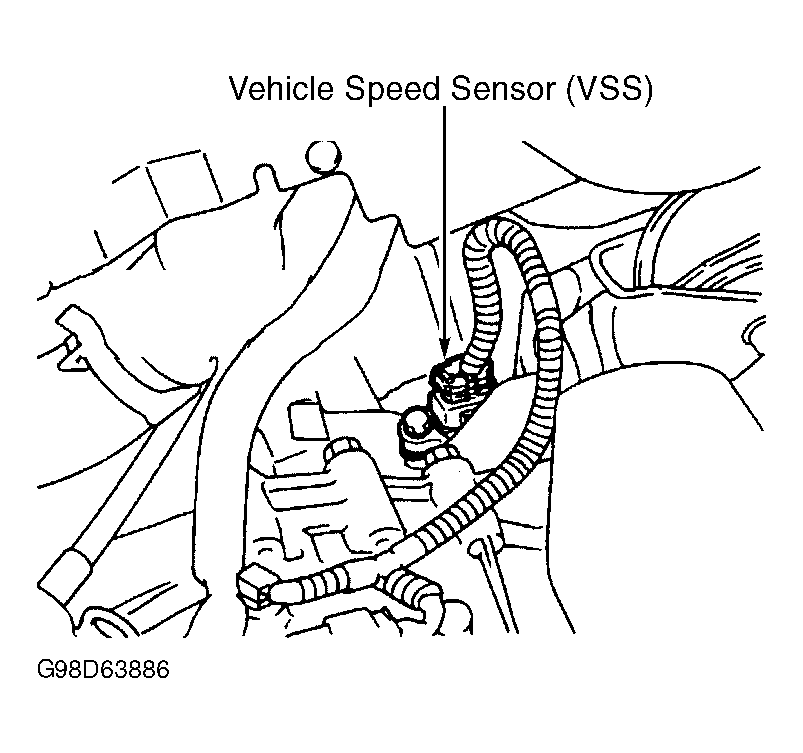

Fig 12: Top Of Transaxle

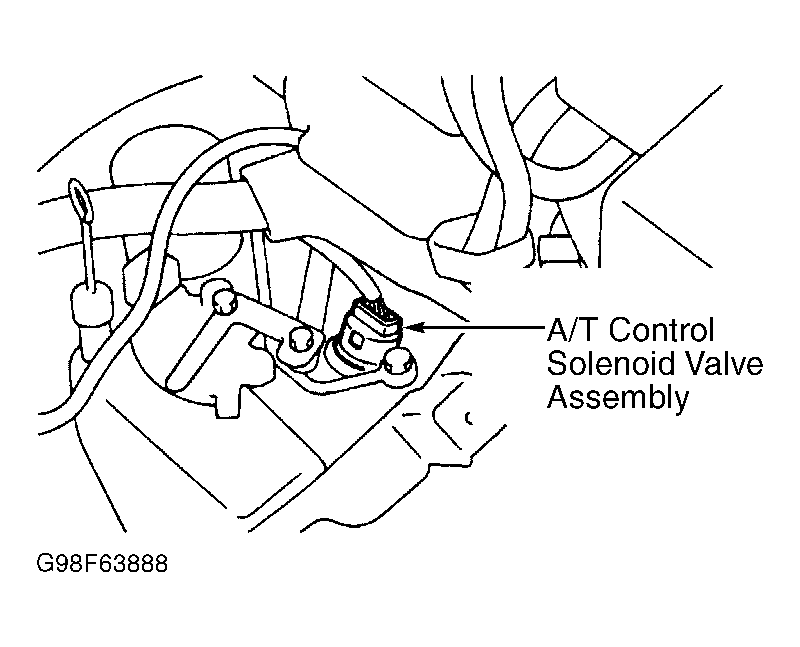

Fig 13: Right Front Of Transaxle

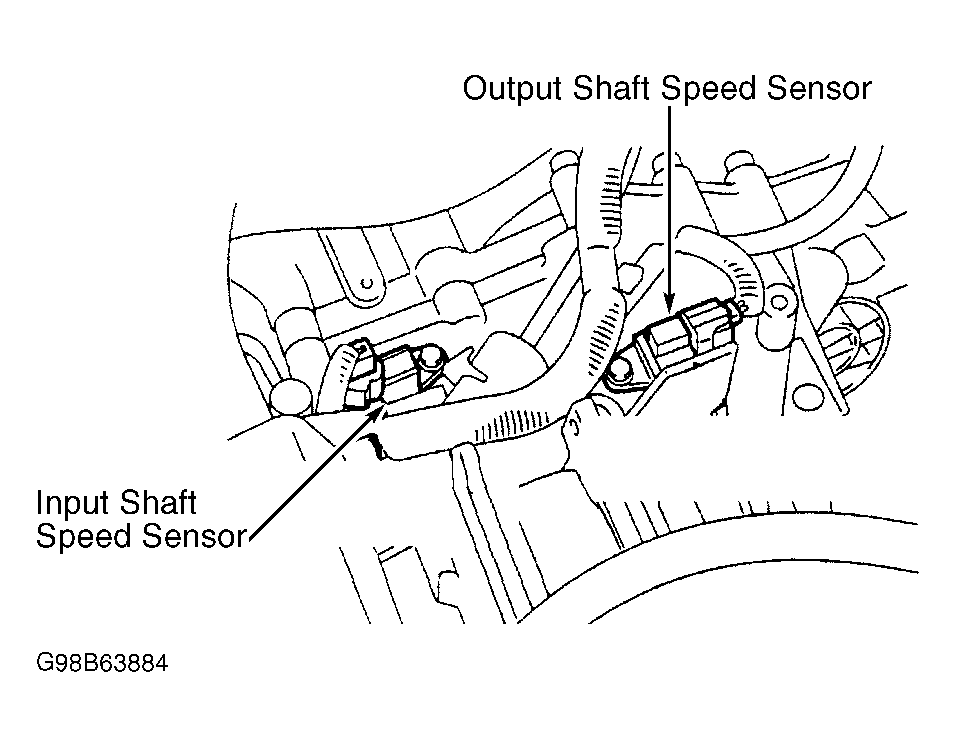

Fig 14: Top Of Transaxle
