Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

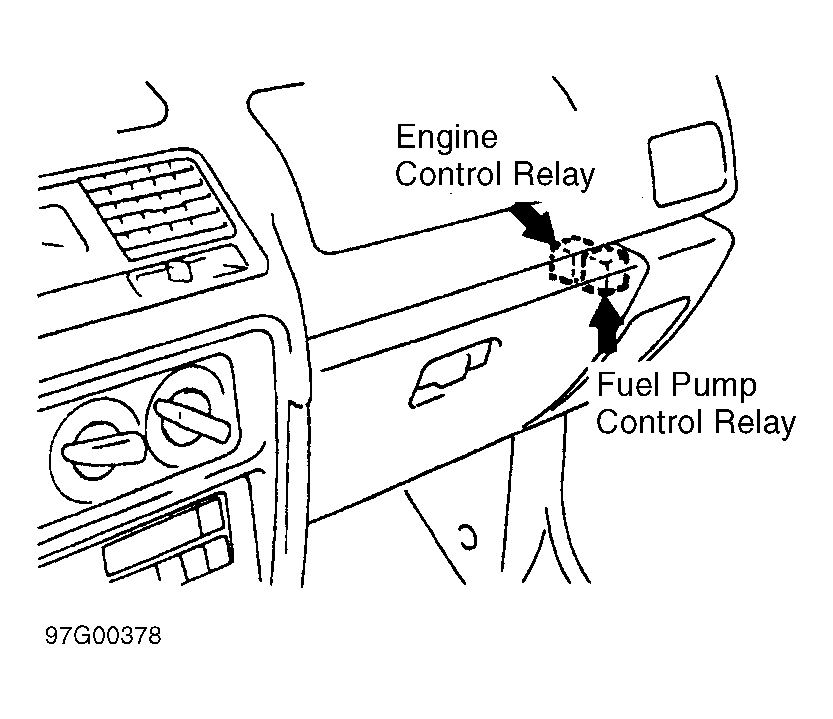

Fig 1: Behind Left Side Of Dash

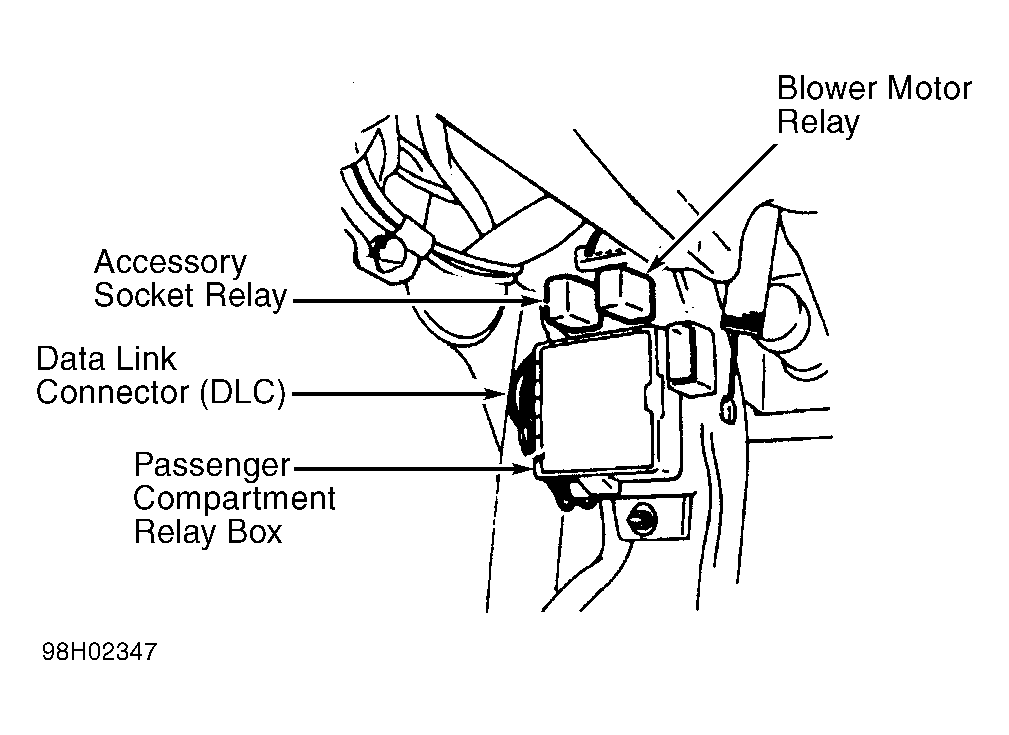

Fig 2: Left Side Of Engine Compartment

Fig 3: Right Rear Of Engine Compartment

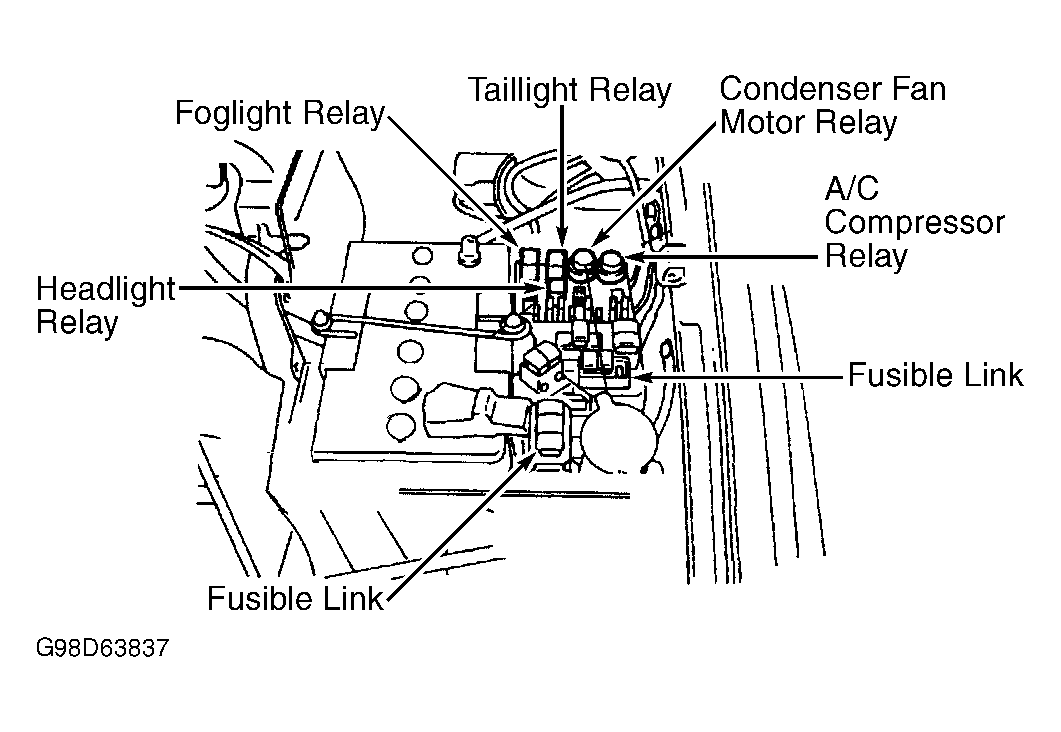

Fig 4: Behind Left Side Of Dash

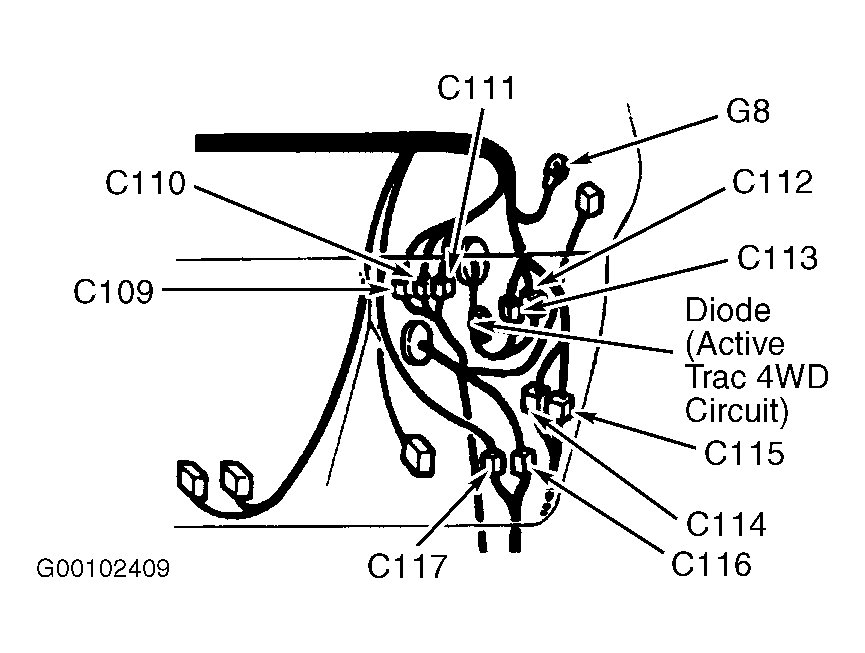

Fig 5: Behind Center Of Dash

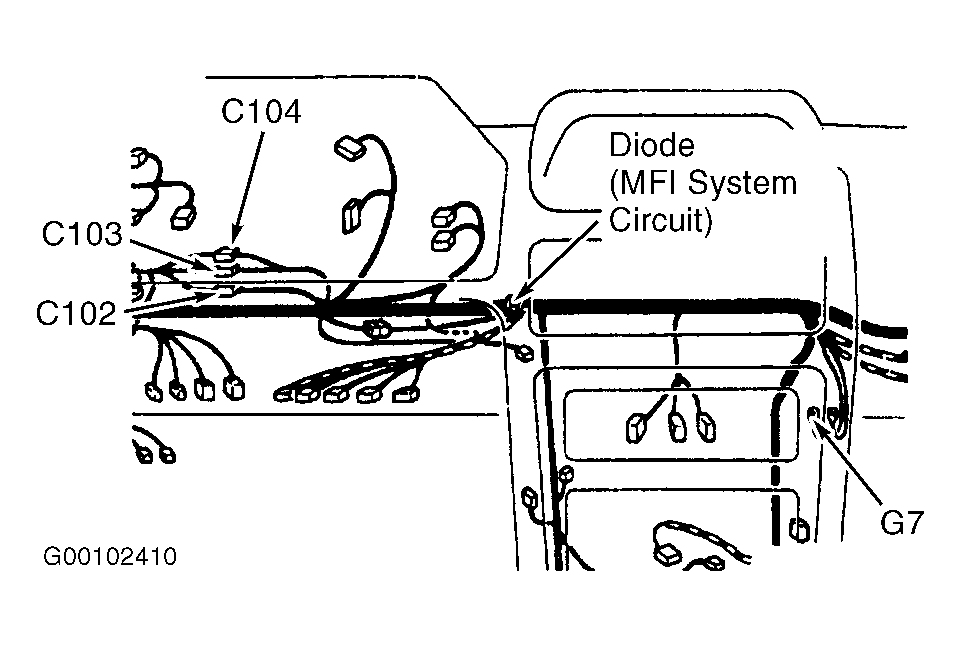

Fig 6: Behind Left Side Of Dash

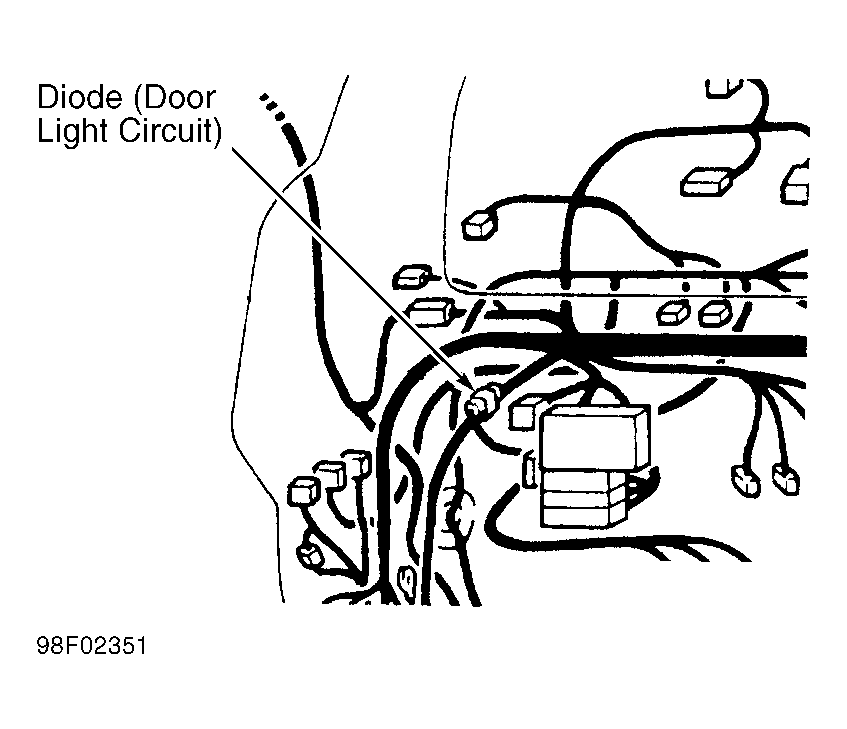

Fig 7: Behind Right Side Of Dash

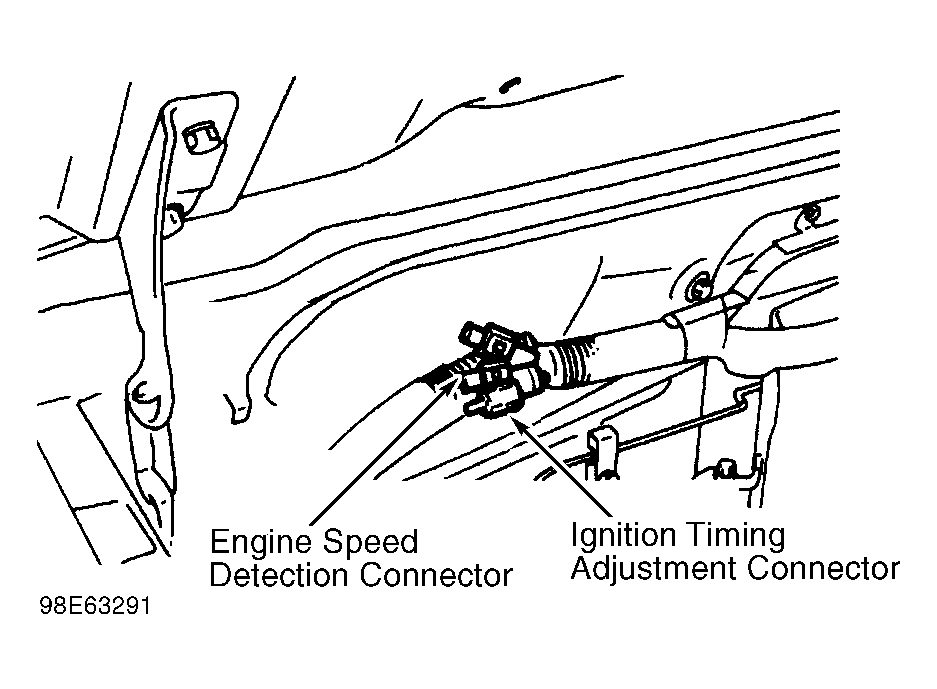

Fig 8: Behind Right Side Of Dash
