Powertrain Control Module Location
Powertrain Control Module Location

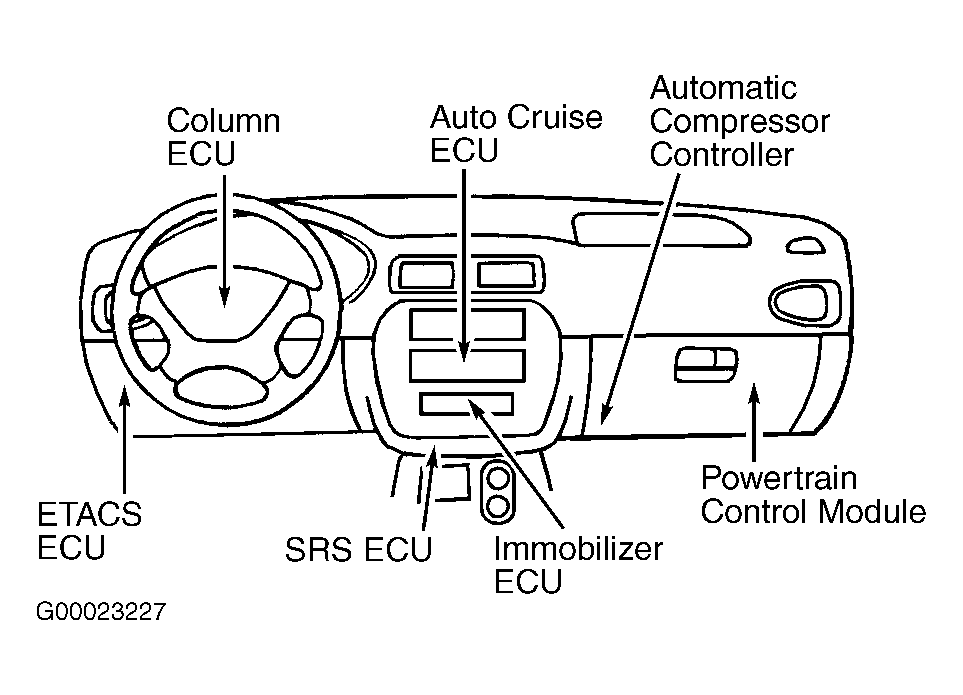

Fig 1: Locating Electronic Control Units Behind Instrument Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

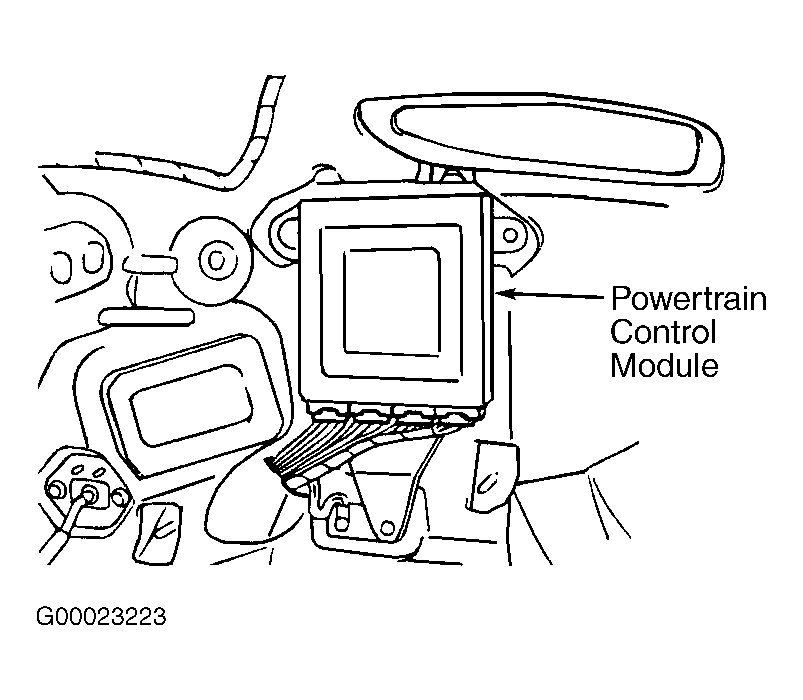

Fig 2: Locating Powertrain Control Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
