Home >> Mitsubishi >> 2001 >> Galant LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Valve Body >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

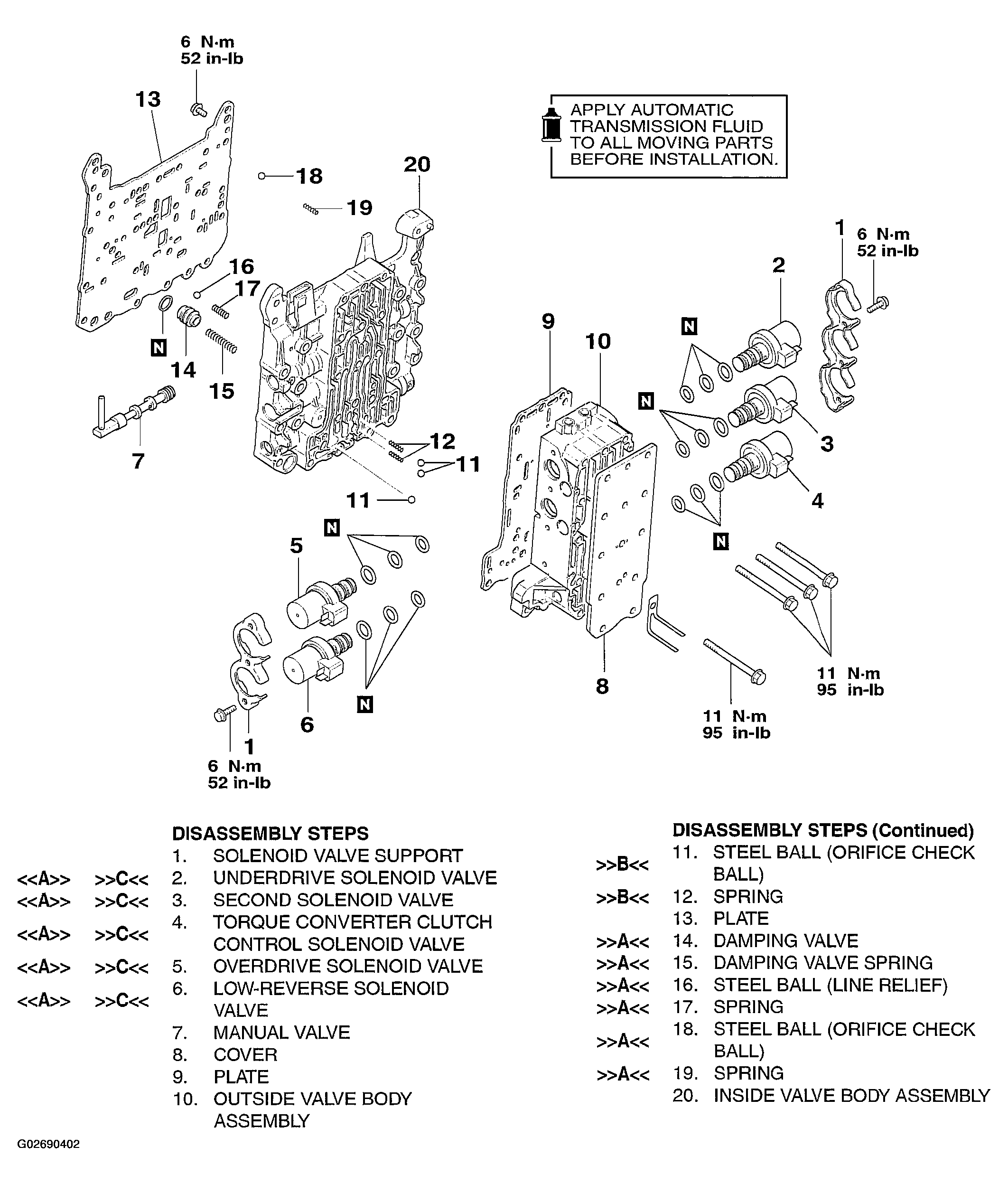

Fig 1: Exploded View Of Valve Body Assembly Components (1 Of 3)
G02690402

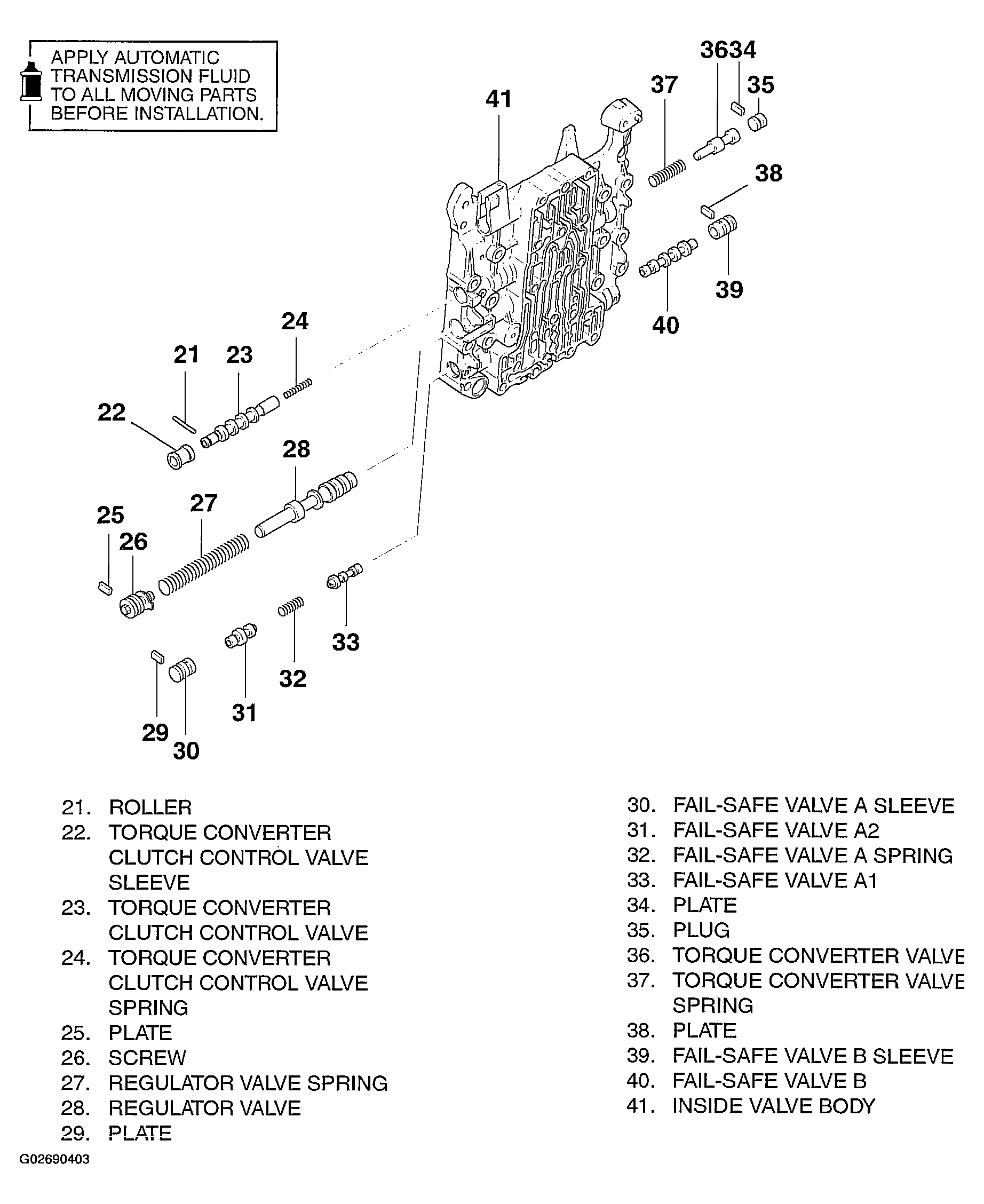

Fig 2: Exploded View Of Valve Body Assembly Components (2 Of 3)
G02690403

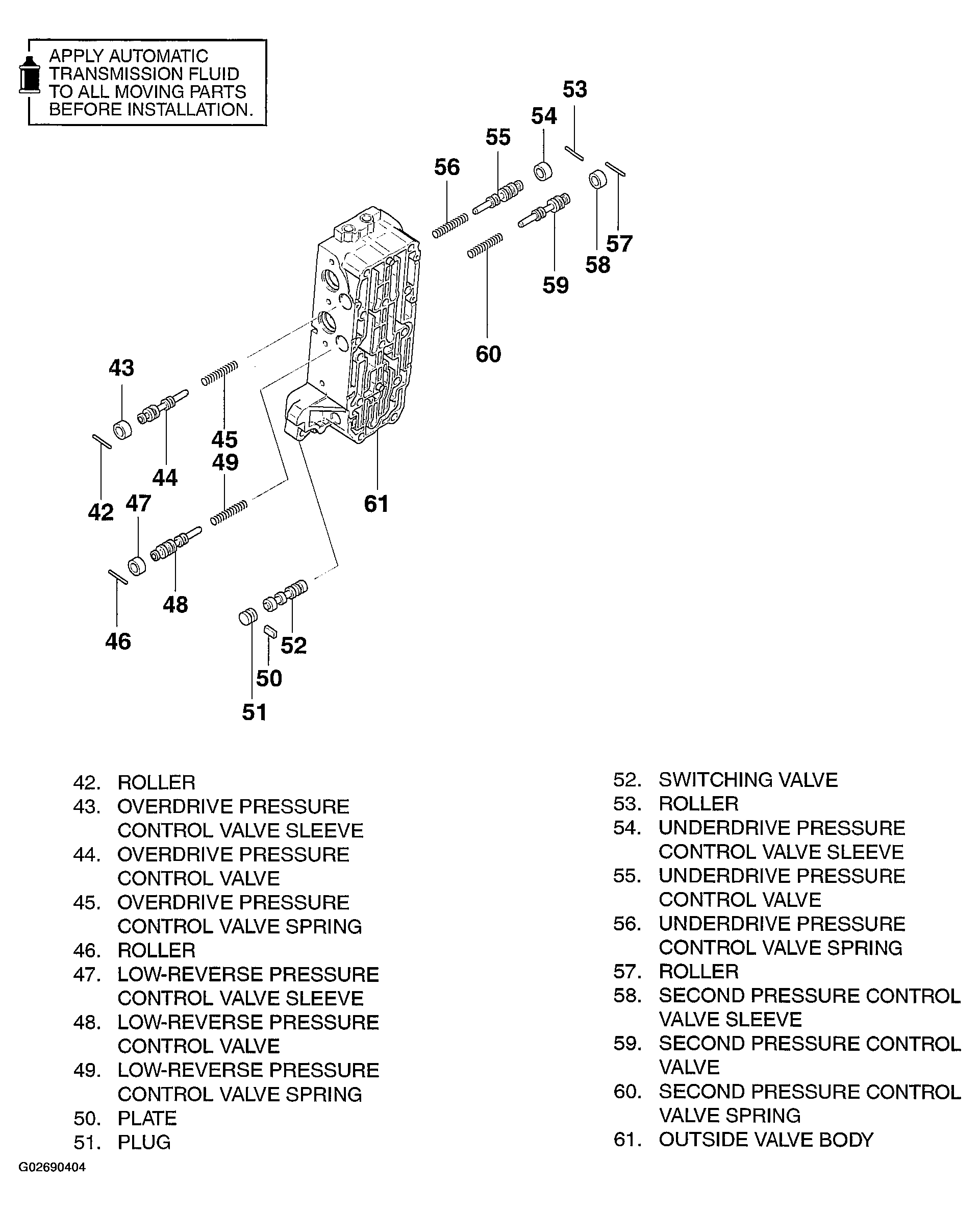

Fig 3: Exploded View Of Valve Body Assembly Components (3 Of 3)
G02690404
