Electronic Control Module Location

CAUTION: If vehicle has anti-theft radio, obtain radio anti-theft code before disconnecting battery. ECM/PCM memory will be erased if battery is disconnected. If ECM/PCM is replaced, the immobilizer ECU should be replaced with it. ECM/PCM has specific individual information that will need to be registered in immobilizer ECU.

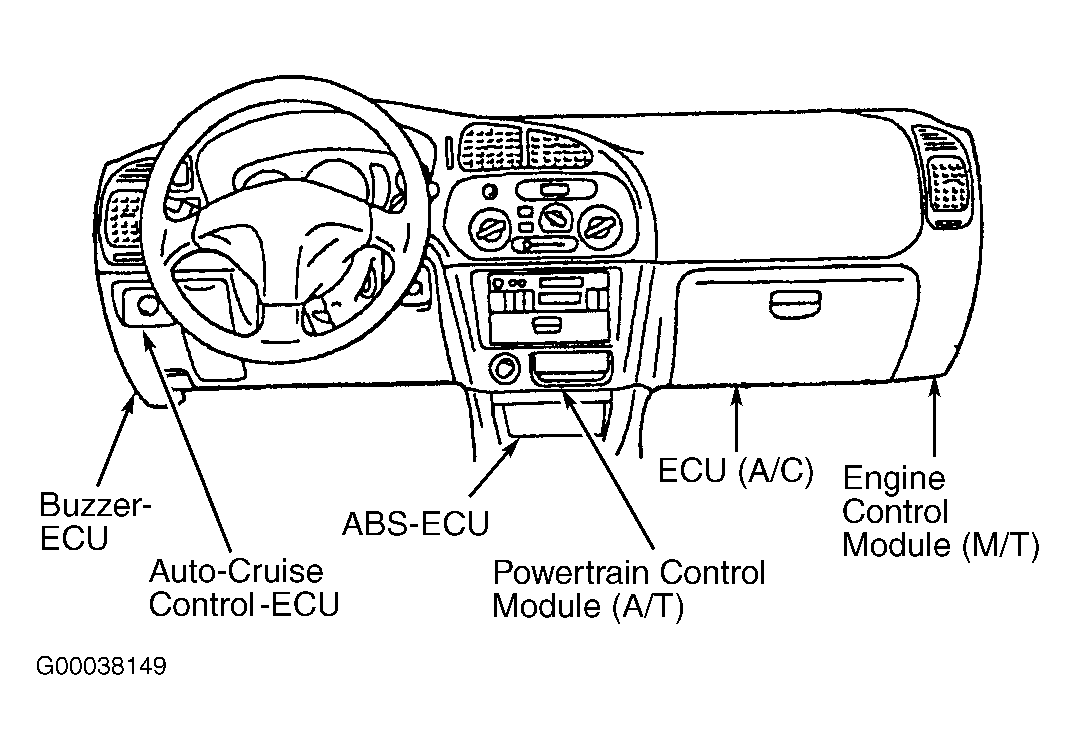

Fig 1: Locating ECUs Behind Instrument Panel

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

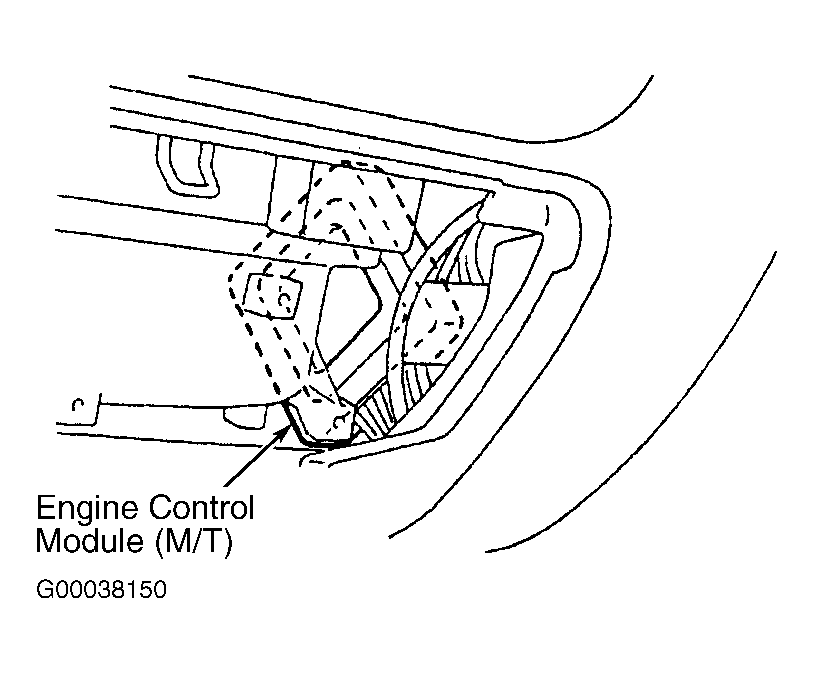

Fig 2: Locating Engine Control Module (M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

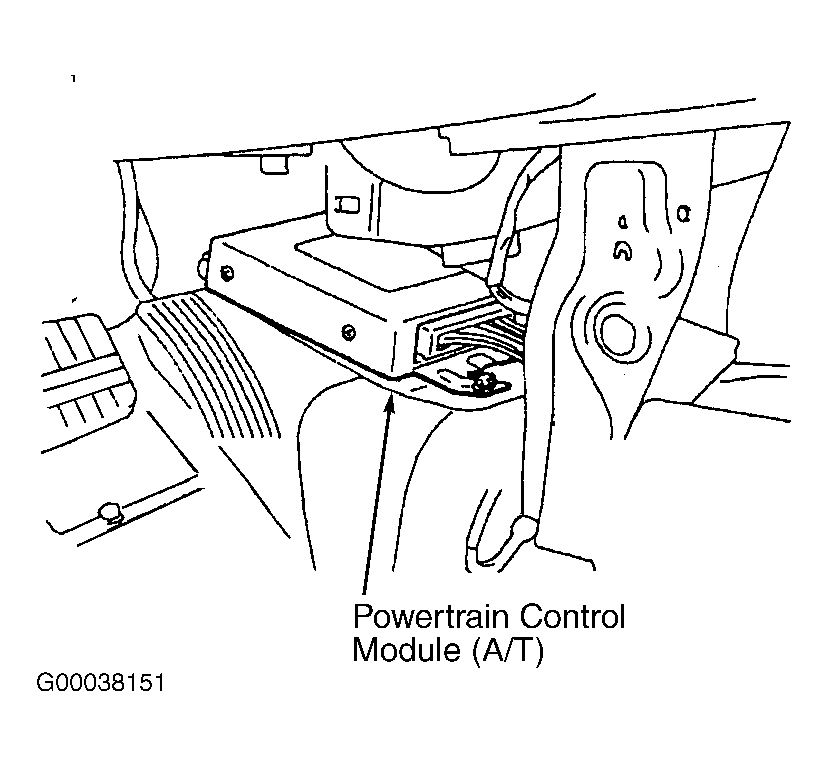

Fig 3: Locating Powertrain Control Module (A/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating MFI Relay & Fuel Pump Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

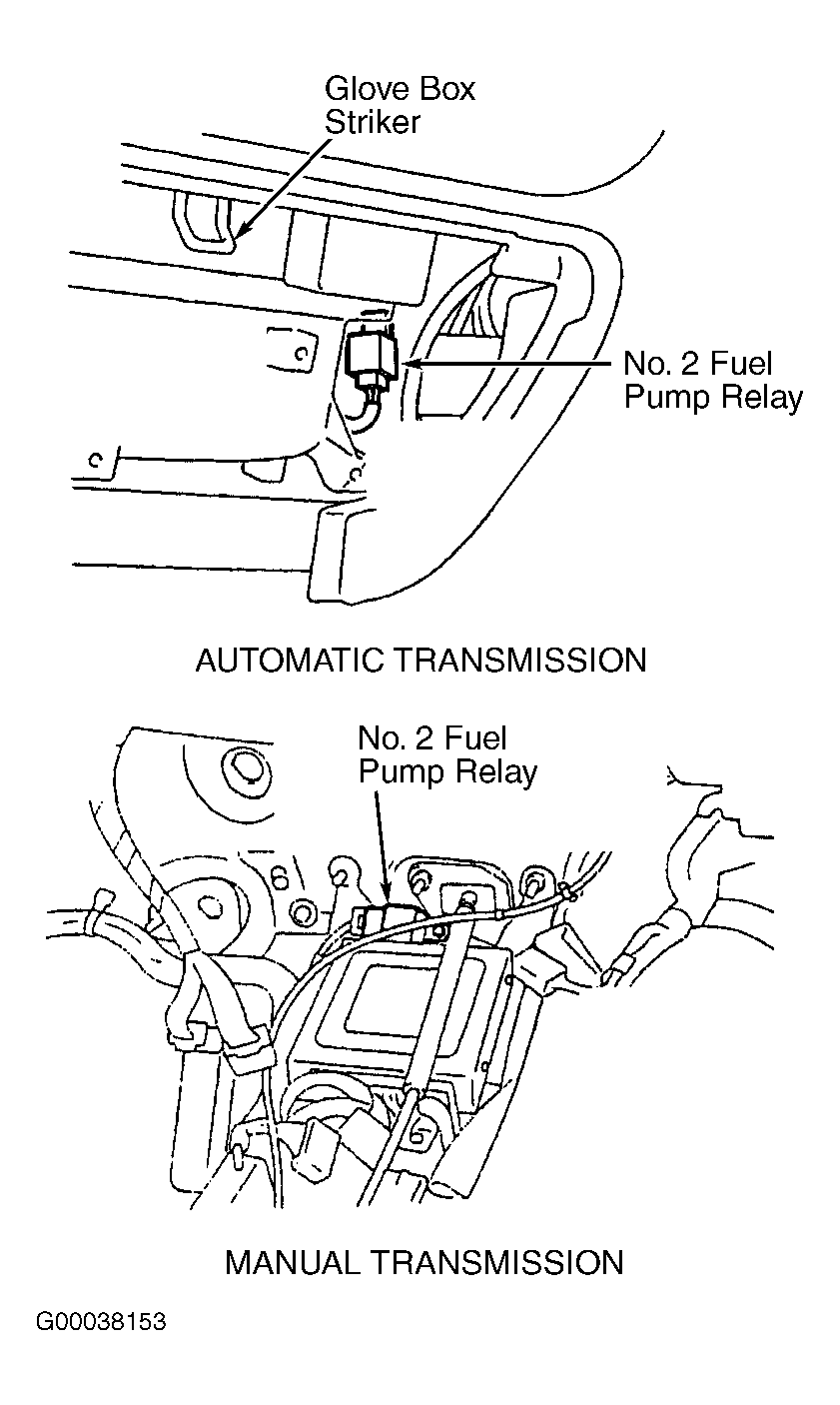

Fig 5: Locating No. 2 Fuel Pump Relays (M/T & A/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
