Terminal Identification

NOTE: The following terminal illustrations are shown as viewed from component side of connector.

TERMINAL IDENTIFICATION DIRECTORY

Connector	Illustration
Camshaft Position (CMP) Sensor	Fig 1
Combination Meter	Fig 2
Crankshaft Position (CKP) Sensor	Fig 3
Distributor Assembly	Fig 4
EGR Solenoid	Fig 5
Engine Control Module (ECM)	Fig 6
Engine Coolant Temperature (ECT) Sensor	Fig 7
Fuel Injector	Fig 8
Fuel Tank Differential Pressure (FTDP) Sensor	Fig 9
FTDP Sensor Intermediate Connector E22	Fig 10
Intermediate Connector B36	Fig 11
Fuel Pump Relay	Fig 12
Heated Oxygen Sensor (HO2S)	Fig 13
Generator Field	Fig 14
Idle Air Control (IAC) Motor	Fig 15
Manifold Absolute Pressure (MAP) Sensor	Fig 16
Manifold Differential Pressure (MDP) Sensor	Fig 17
MFI Relay	Fig 12
OBD-II DLC	Fig 18
Purge Solenoid	Fig 19
Throttle Position (TP) Sensor	Fig 20
Vehicle Speed Sensor (VSS)	Fig 21
Ventilation Solenoid	Fig 22
Volume Airflow (VAF) Sensor	Fig 23

Fig 1: Identifying Camshaft Position (CMP) Sensor Connector Terminals (1.8L)

G97D07041

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Combination Meter Connector B07 Terminals

G00005814

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Crankshaft Position (CKP) Sensor Connector Terminals (1.5L)

G95H31135

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Distributor Assembly Connector Terminals

G99J52612

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Identifying EGR Solenoid Connector Terminals

G98A12419

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Identifying ECM Connector Terminals

G00038147

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Identifying Engine Coolant Temperature (ECT) Sensor Connector Terminals

G00005803

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Identifying Fuel Injector Connector Terminals

G99D52616

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Identifying Fuel Tank Differential Pressure (FTDP) Sensor Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Identifying FTDP Sensor Intermediate Connector E22 Terminals

G00005838

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

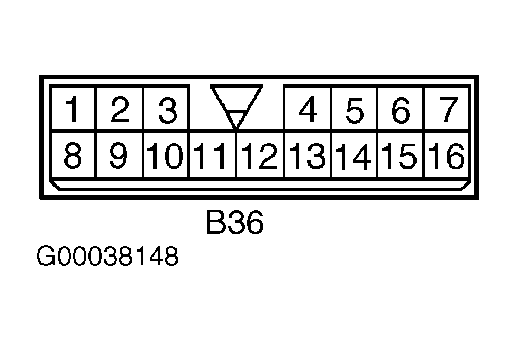

Fig 11: Identifying Intermediate Connector B36 Terminals

G00038148

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Identifying MFI Relay & Fuel Pump Relay Connector Terminals

G00005858

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals

G95G31159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Identifying Generator Field Connector Terminals

G96B09826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Identifying Idle Air Control (IAC) Motor Connector Terminals

G95I31151

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Identifying Manifold Absolute Pressure (MAP) Sensor Connector Terminals (1.5L)

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Identifying Manifold Differential Pressure (MDP) Sensor Connector Terminals (1.8L)

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Identifying OBD-II Data Link Connector (DLC) Terminals

G96G06364

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Identifying Purge Solenoid Connector Terminals

G00005870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Identifying Throttle Position (TP) Sensor Connector Terminals

G95A31534

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Identifying Vehicle Speed Sensor (VSS) Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Identifying Ventilation Solenoid Connector Terminals

G00005870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Identifying Volume Airflow (VAF) Sensor Connector Terminals

G98A12435

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
