Starter Relay: Eclipse

  1. Remove starter relay. See STARTER RELAY LOCATIONS  table. With no power supplied to any terminal, continuity should exist between relay terminals No. 1 and 3. See Fig 1 . See WIRING DIAGRAMS  .
  2. Connect a jumper wire from positive battery terminal to relay terminal No. 3 and another jumper wire from negative battery terminal to relay terminal No. 1. Continuity should exist between relay terminals No. 2 and 5. Replace relay as necessary.

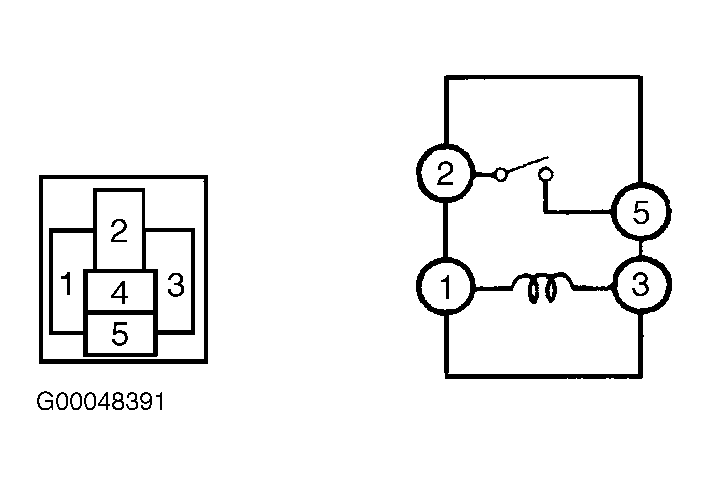

Fig 1: Identifying Starter Relay Terminals (Eclipse)
G00048391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
