Terminal Identification
NOTE:
The following terminal illustrations are shown as viewed from component side of connector.
TERMINAL IDENTIFICATION DIRECTORY
| Connector | Illustration |
|---|---|
| Accelerator Pedal Position Sensor | Fig 1 |
| Assist ECU | Fig 2-Fig 3 |
| Crankshaft Position Sensor | Fig 4 |
| Combination Meter | Fig 5 |
| Distributor Assembly | Fig 6 |
| Fuel Tank Differential Pressure Sensor | Fig 8 |
| Fuel Injector | Fig 9 |
| Fuel Pump Relay | Fig 17 |
| Generator Field | Fig 10 |
| HO2S | Fig 11 |
| IAC Motor | Fig 12 |
| Immobilizer ECU | Fig 13 |
| Instrument Panel ECU | Fig 14-Fig 15 |
| Manifold Differential Pressure Sensor | Fig 16 |
| MFI Relay | Fig 17 |
| OBD-II DLC | Fig 7 |

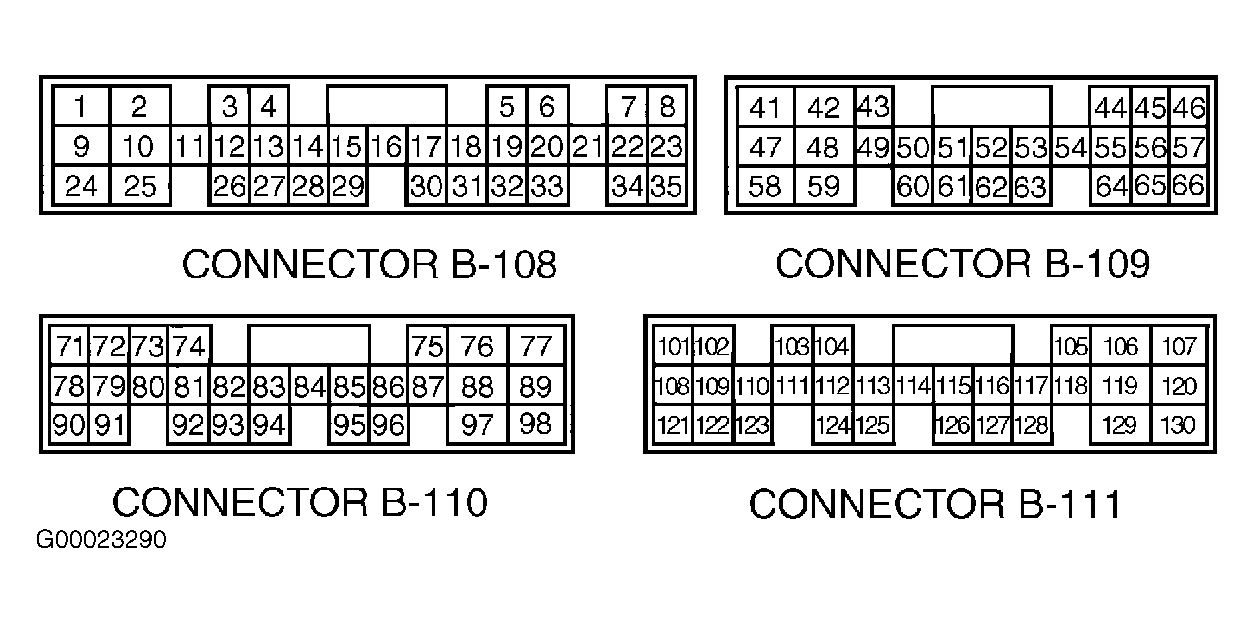

| PCM | Fig 18 |
| Throttle Position Sensor | Fig 19 |
| Volume Airflow Sensor | Fig 20 |
