Component Locations

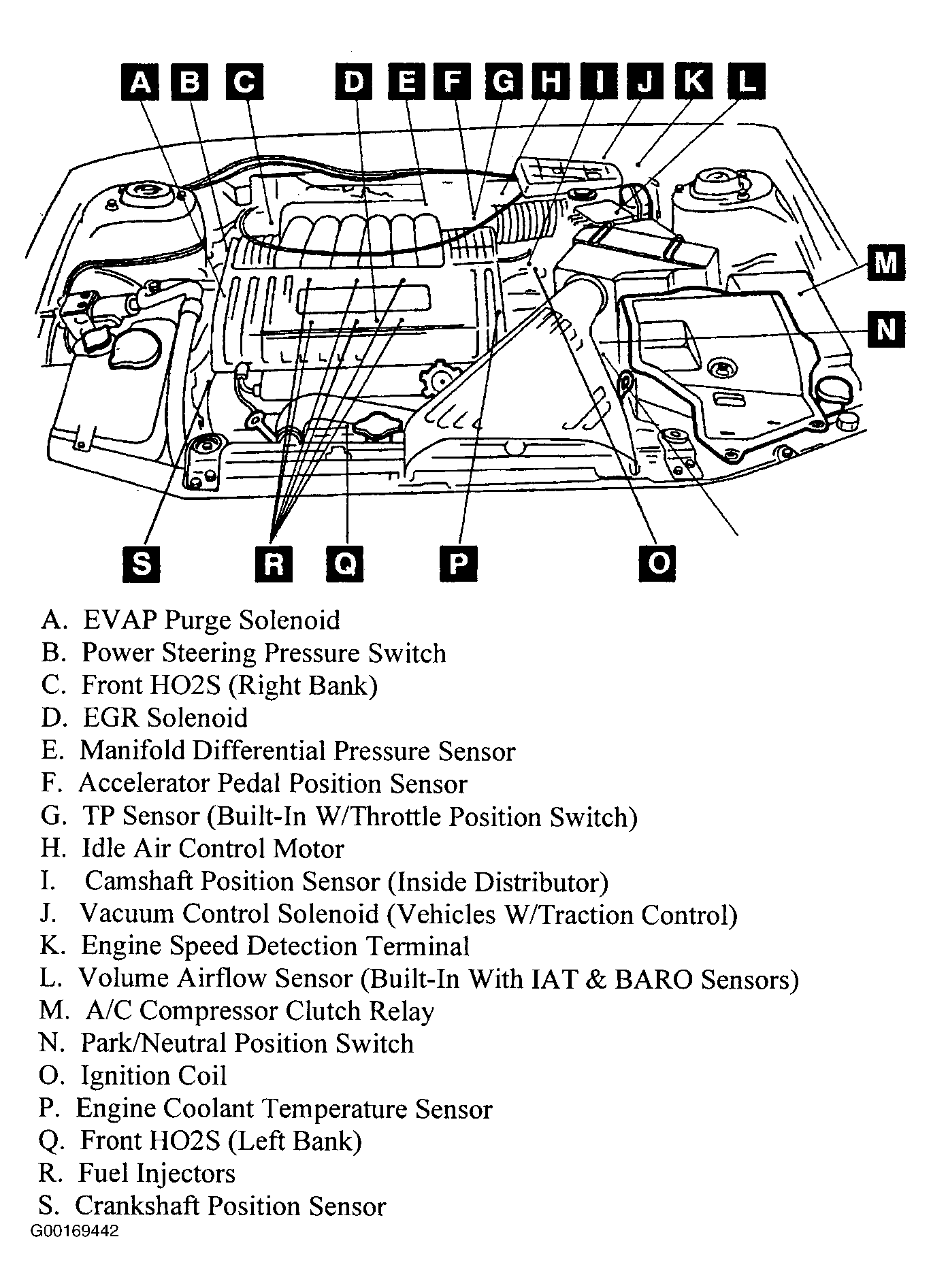

Fig 1: Underhood Component Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

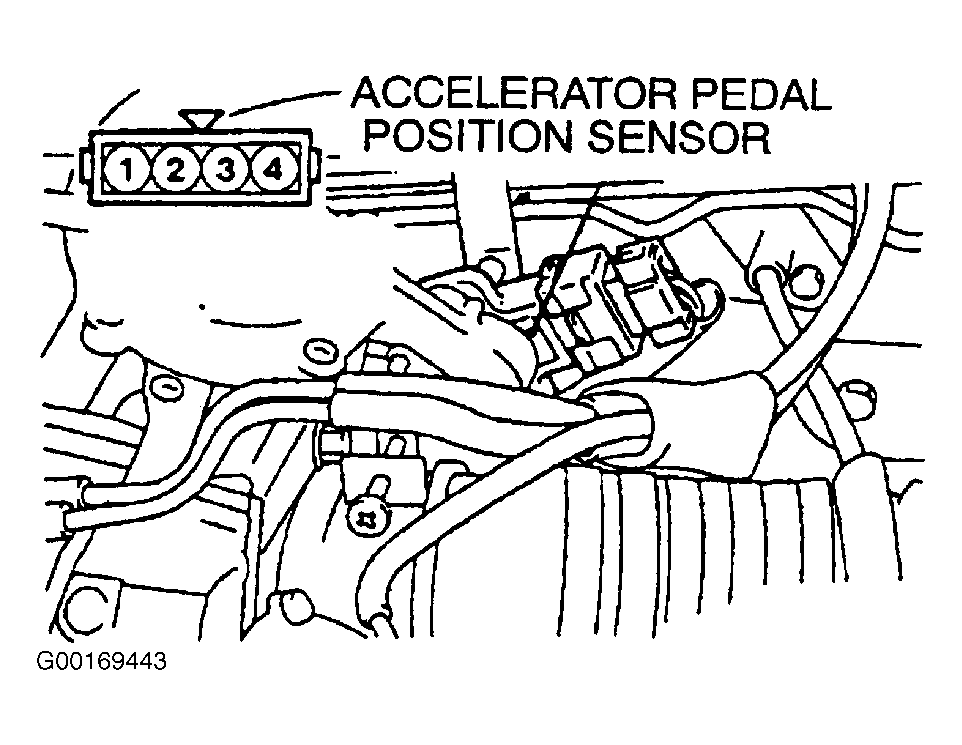

Fig 2: Locating Accelerator Pedal Position Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

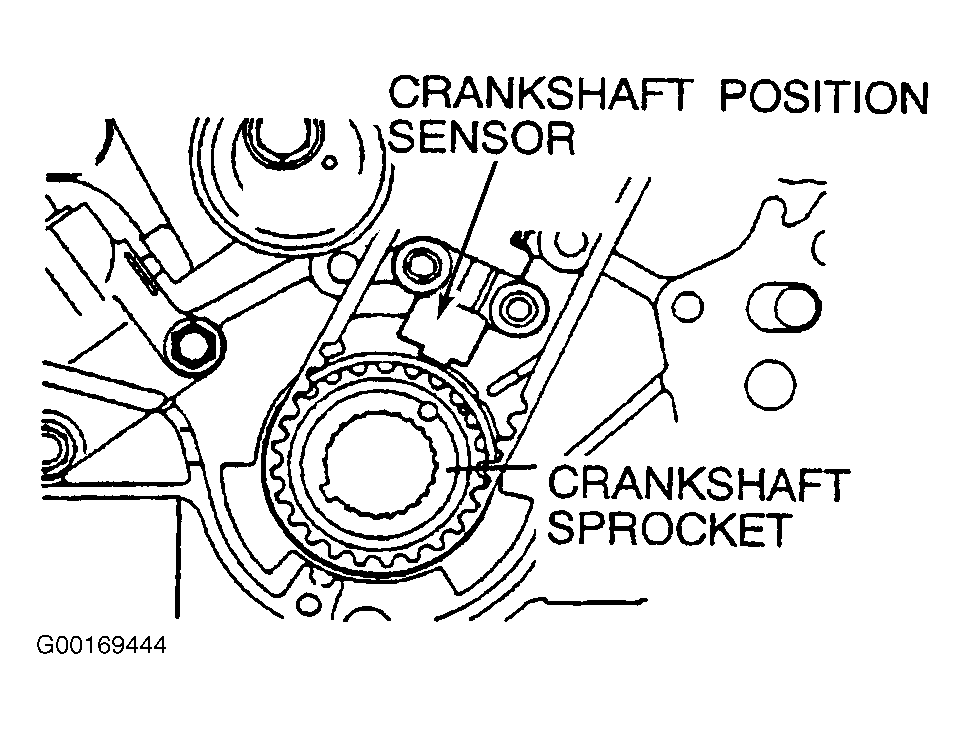

Fig 3: Locating Crankshaft Position Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

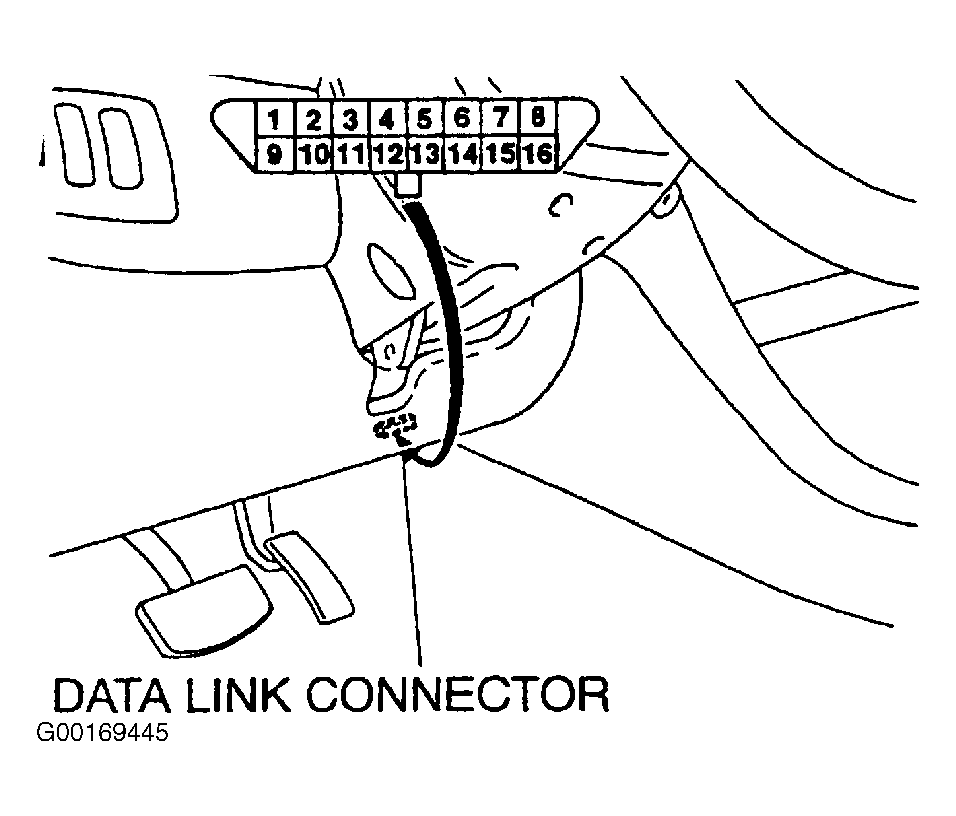

Fig 4: Locating Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

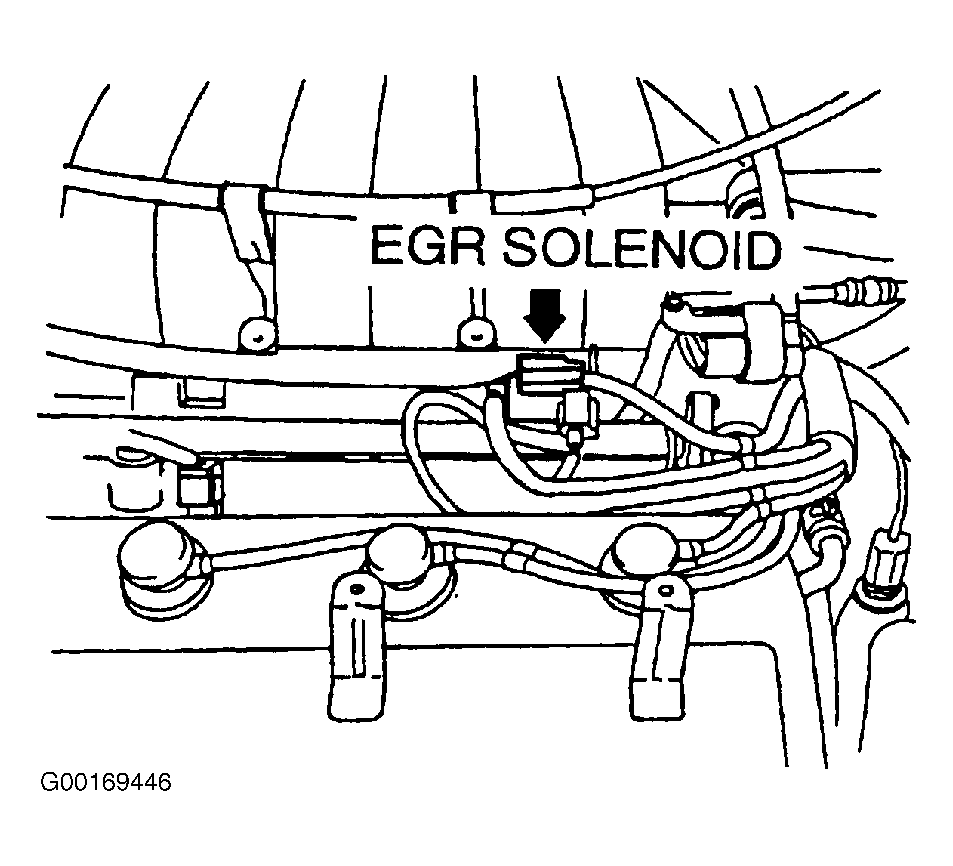

Fig 5: Locating EGR Solenoid

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

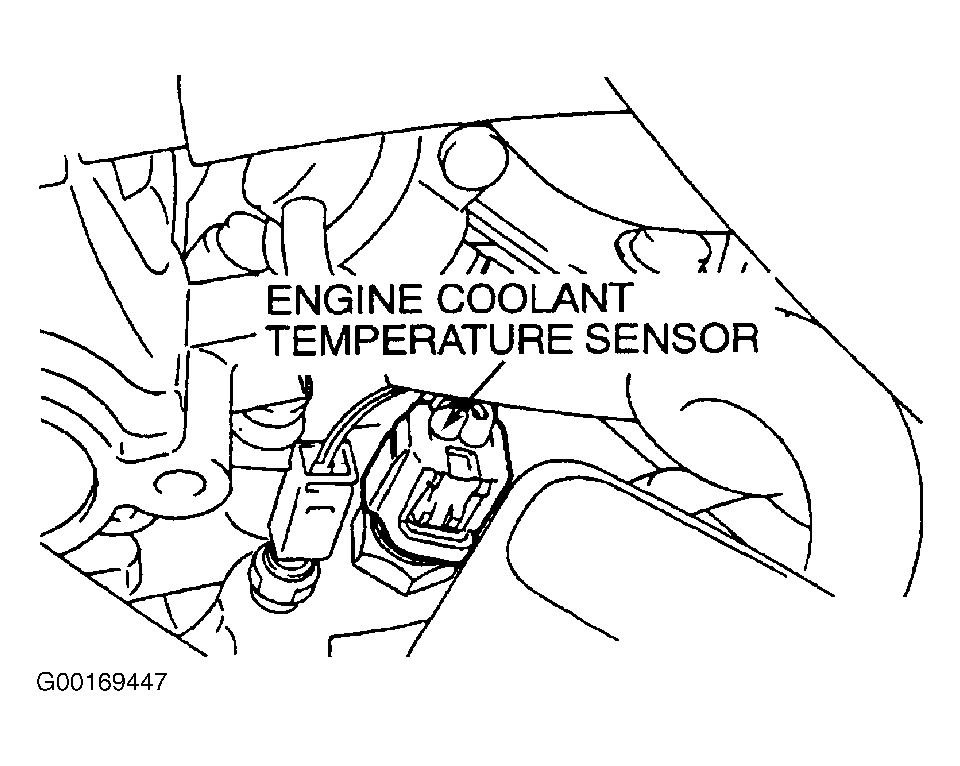

Fig 6: Locating Engine Coolant Temperature Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

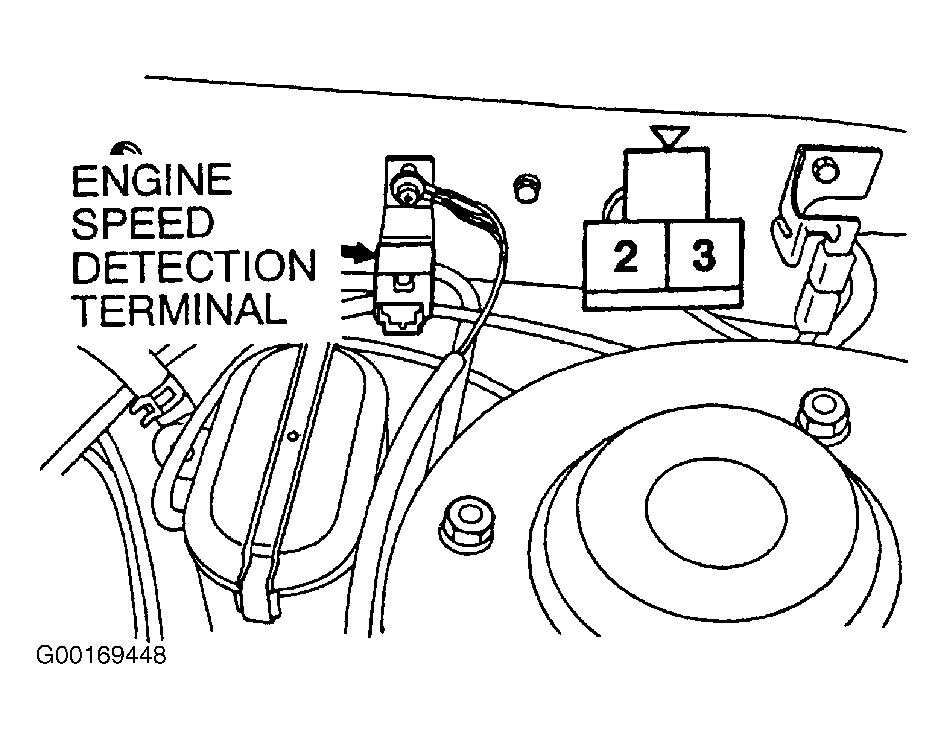

Fig 7: Locating Engine Speed Detection Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

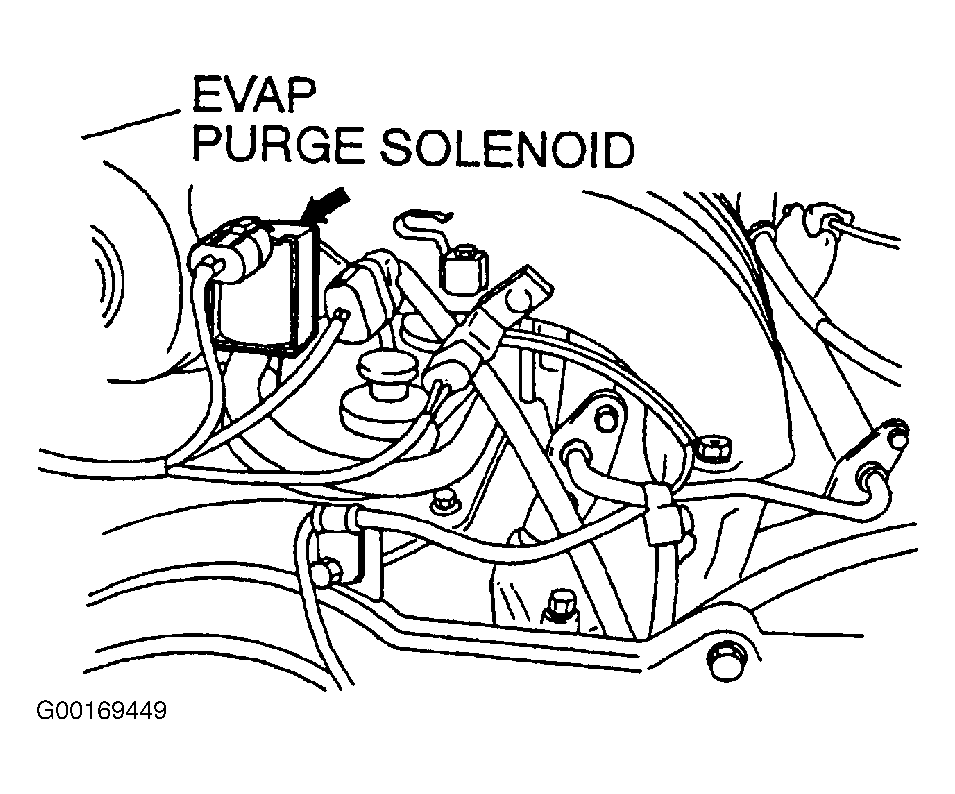

Fig 8: Locating EVAP Purge Solenoid

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

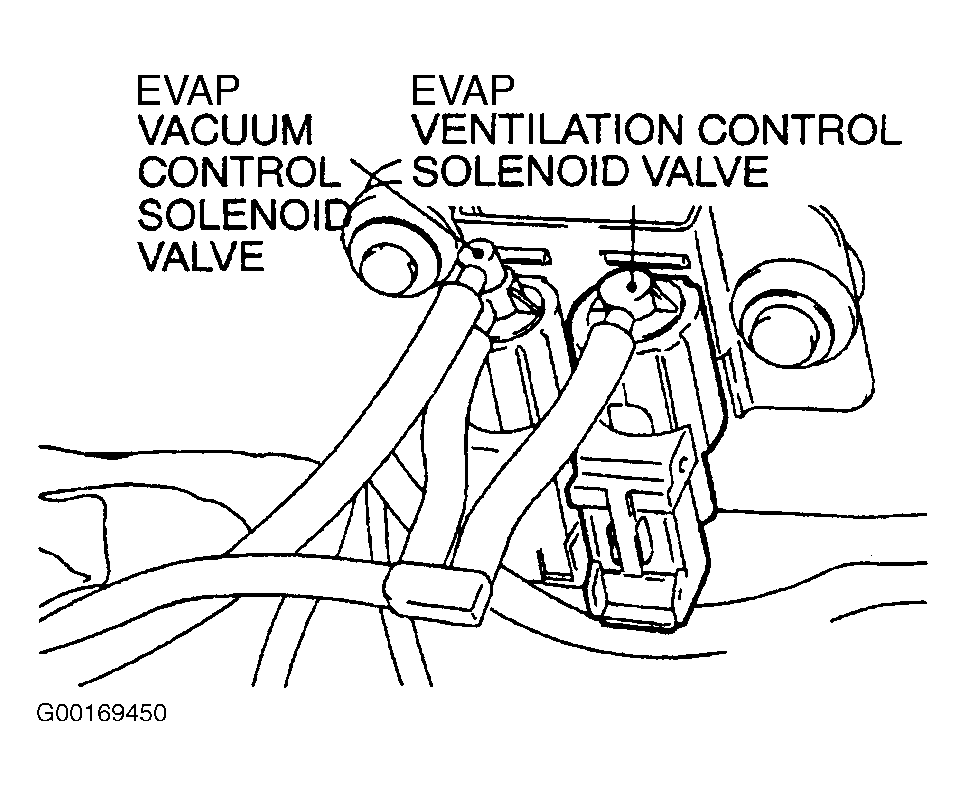

Fig 9: Locating EVAP Vacuum & Ventilation Control Solenoid Valves

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

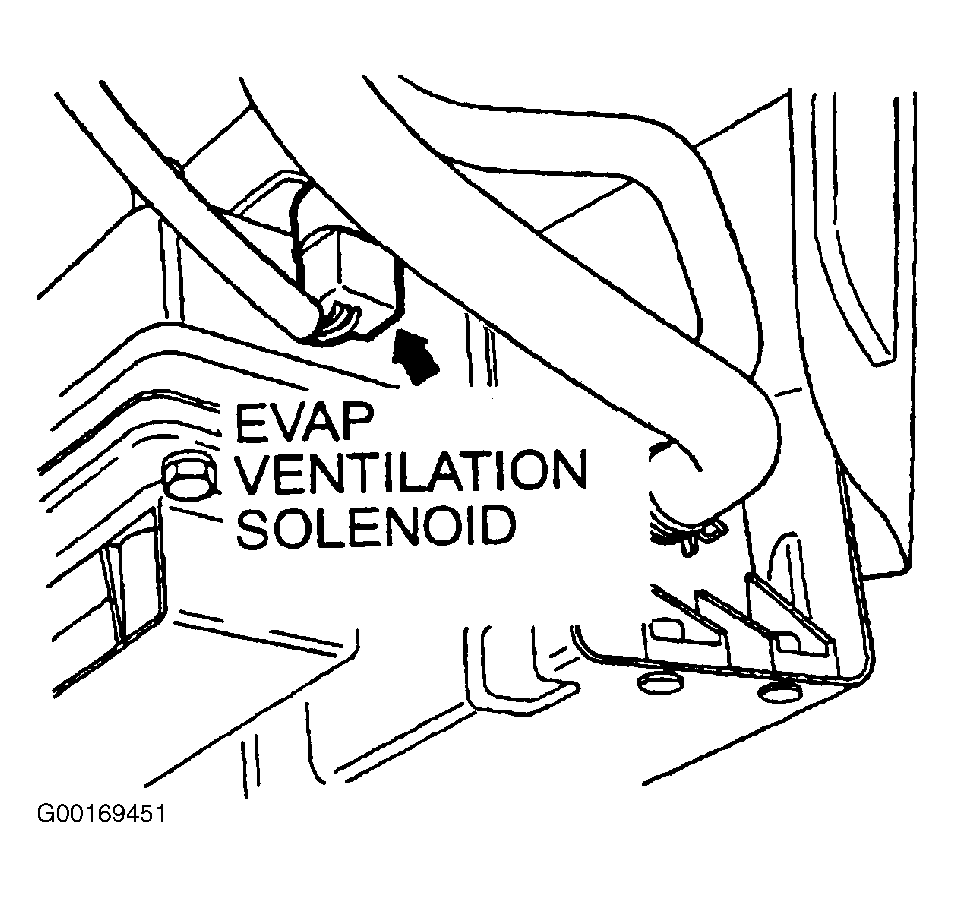

Fig 10: Locating EVAP Ventilation Solenoid

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

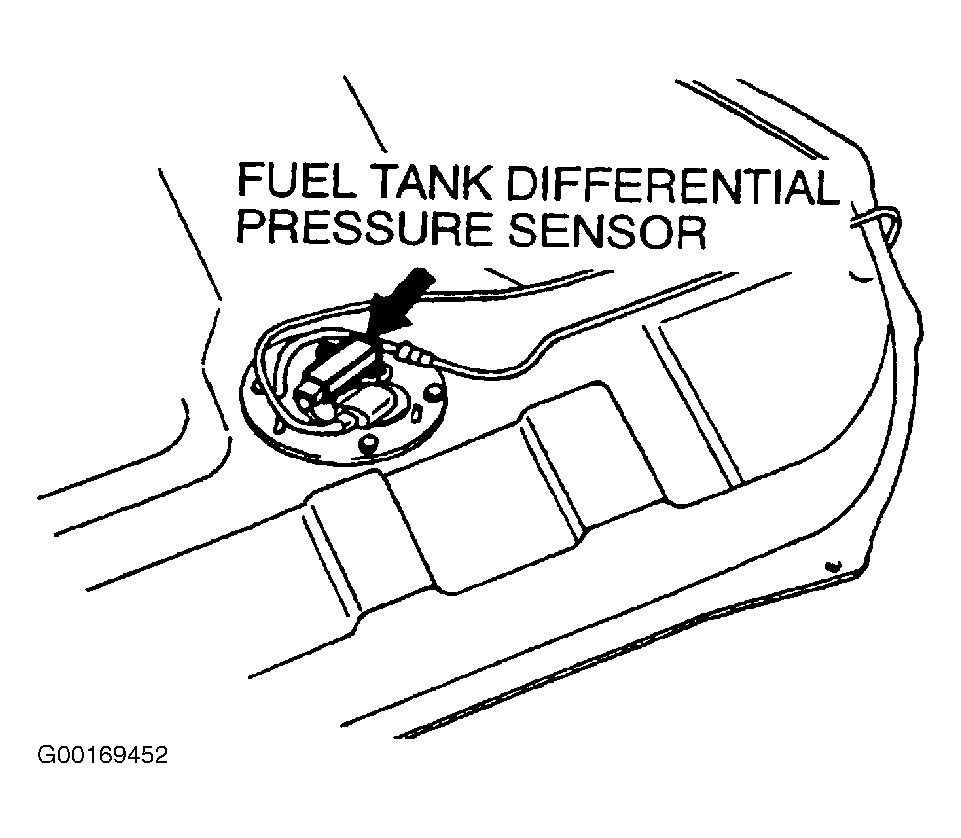

Fig 11: Locating Fuel Tank Differential Pressure Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

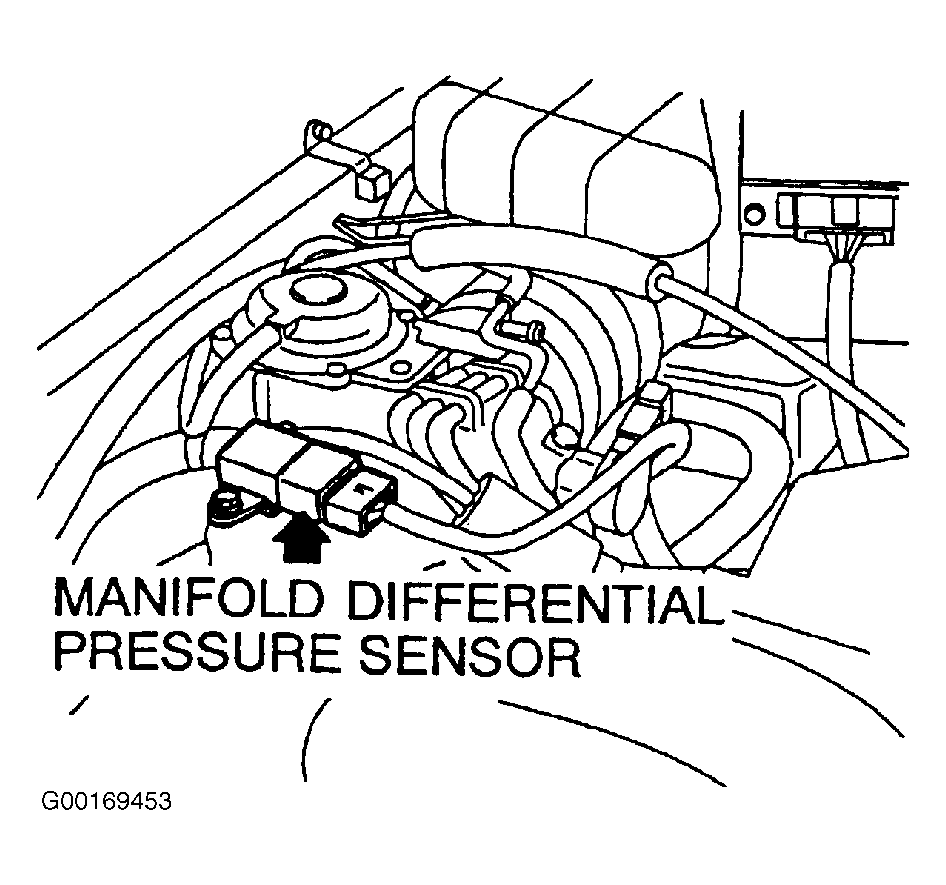

Fig 12: Locating Manifold Differential Pressure Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

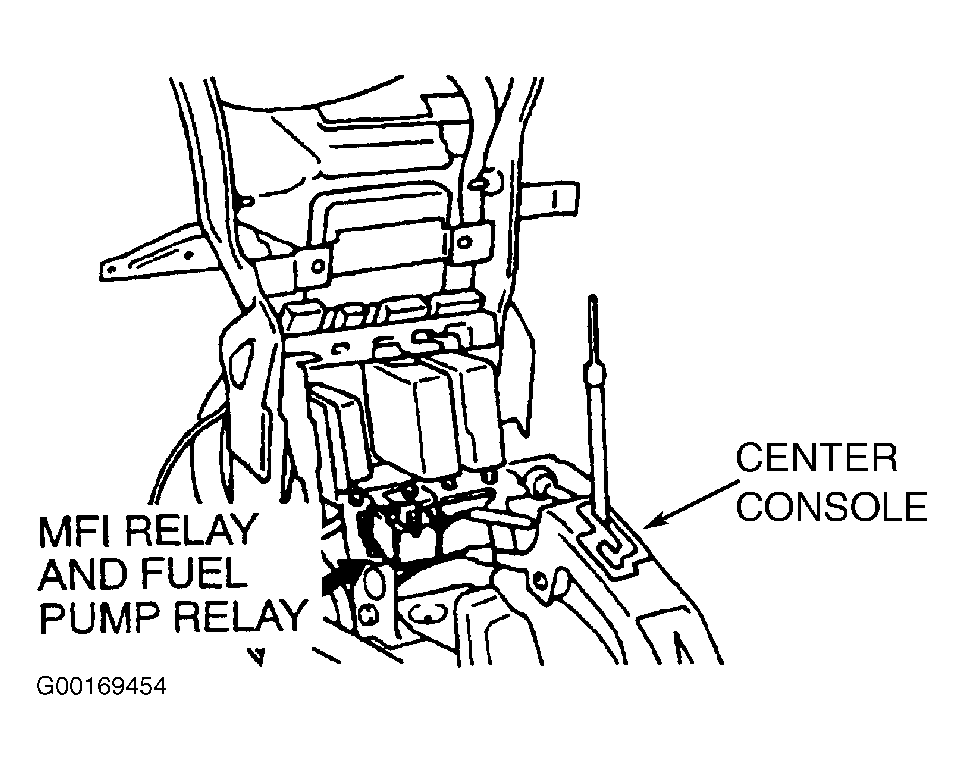

Fig 13: Locating MFI & Fuel Pump Relays

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

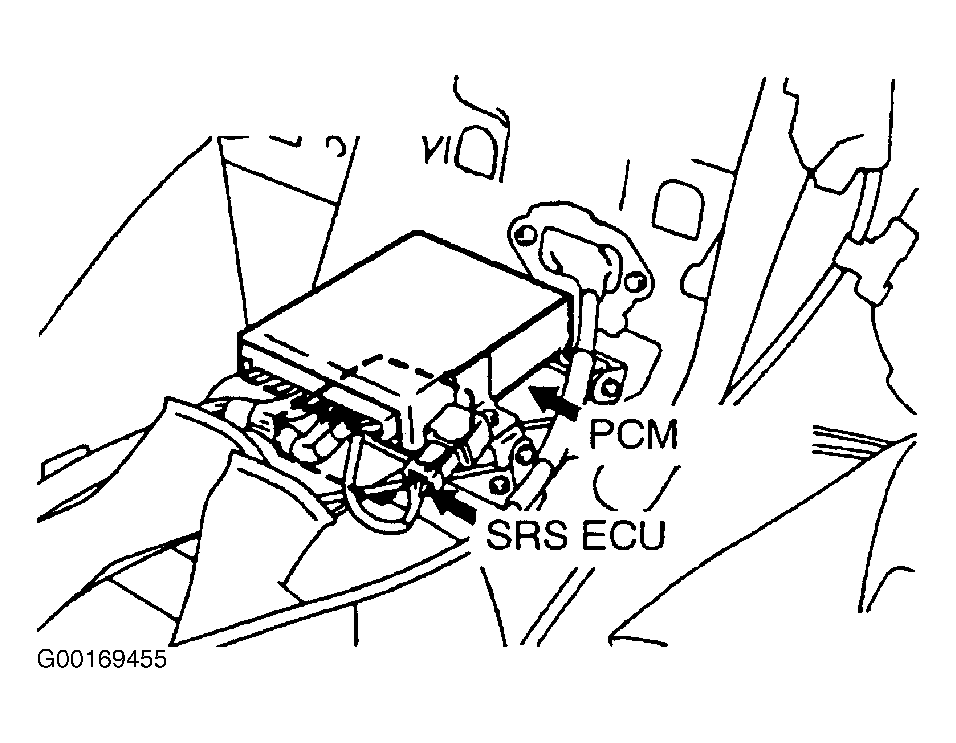

Fig 14: Locating PCM & SRS ECU

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

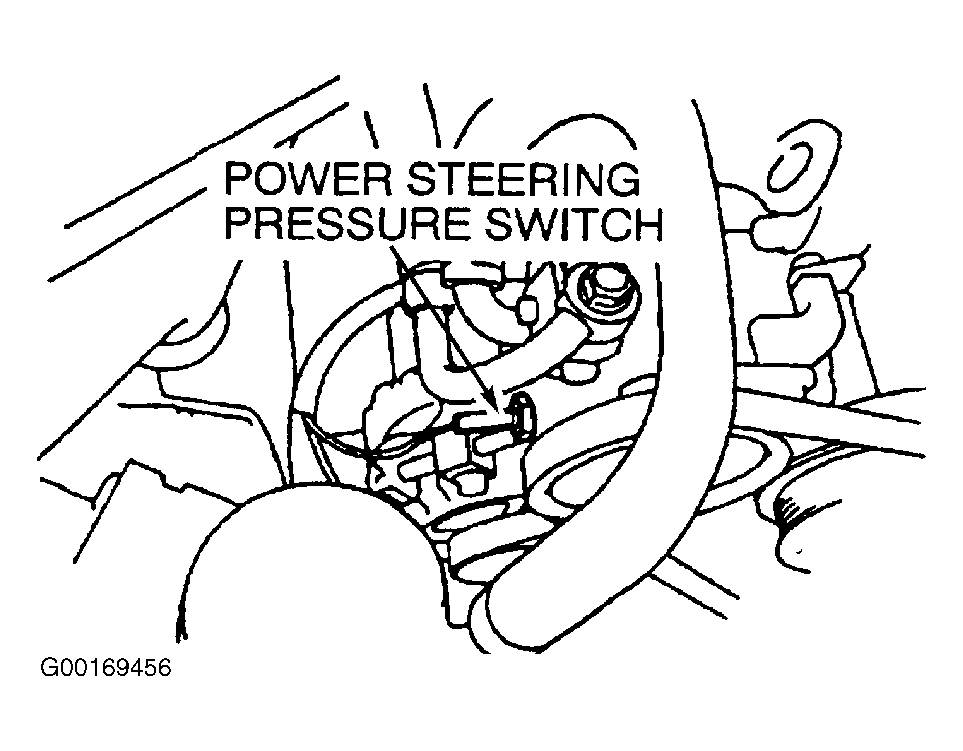

Fig 15: Locating Power Steering Pressure Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

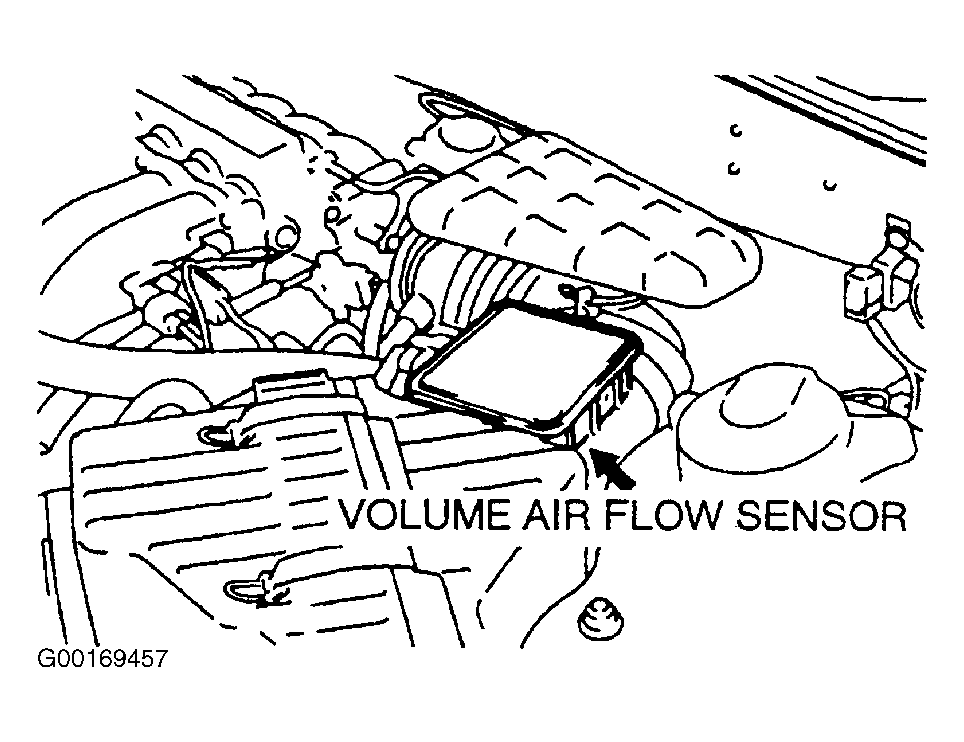

Fig 16: Locating Volume Airflow Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
