Disassembly And Assembly: Notes

For oil pump disassembly procedures, follow numbered steps in illustration. See Fig 1. For oil pump assembly procedures, follow numbers steps in illustration in reverse order. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINTS .

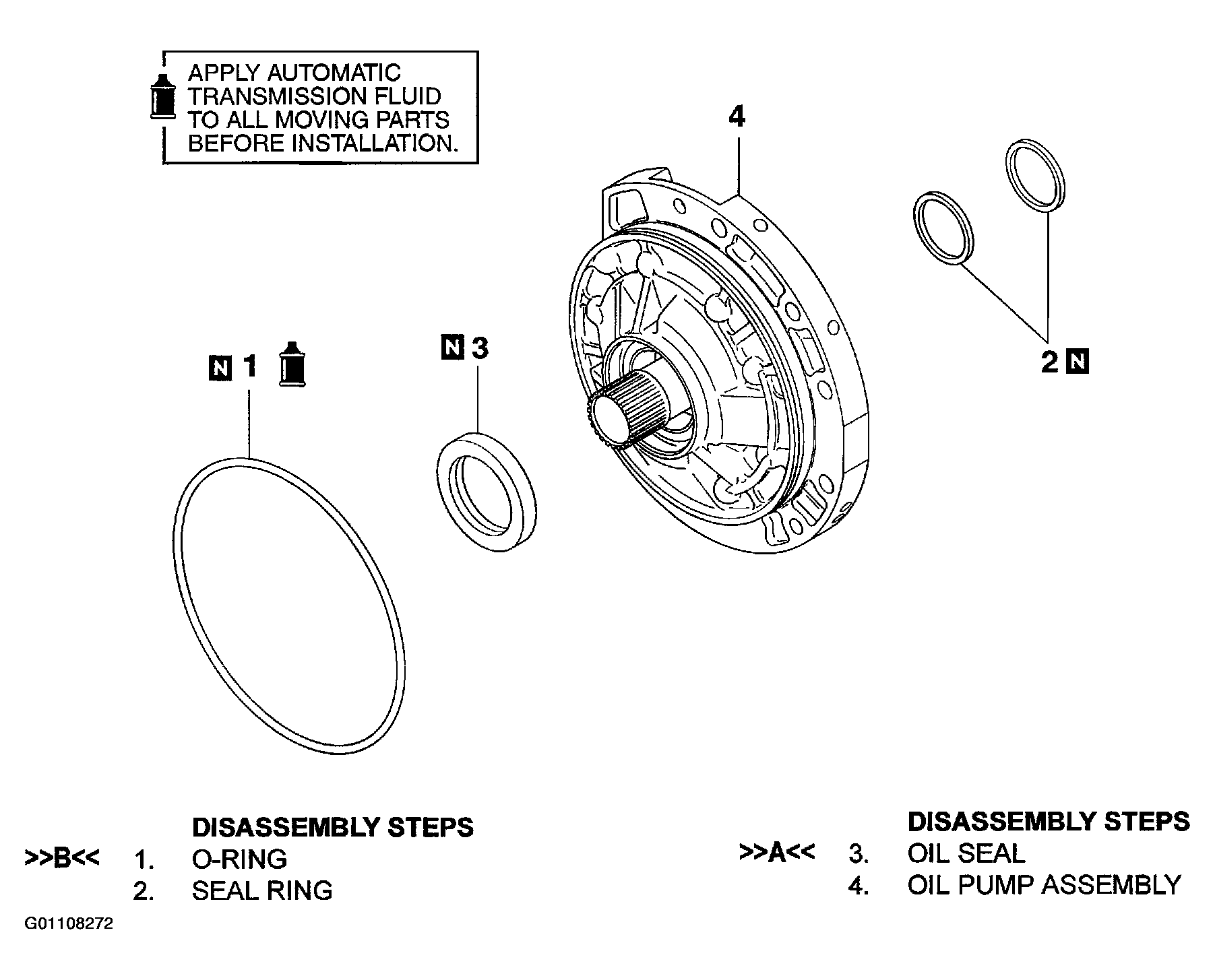

Fig 1: Exploded View Of Oil Pump
G01108272Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
