Home >> Mitsubishi >> 2002 >> Lancer LS >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Inspection >> Power Window Relay Continuity Check

Power Window Relay Continuity Check

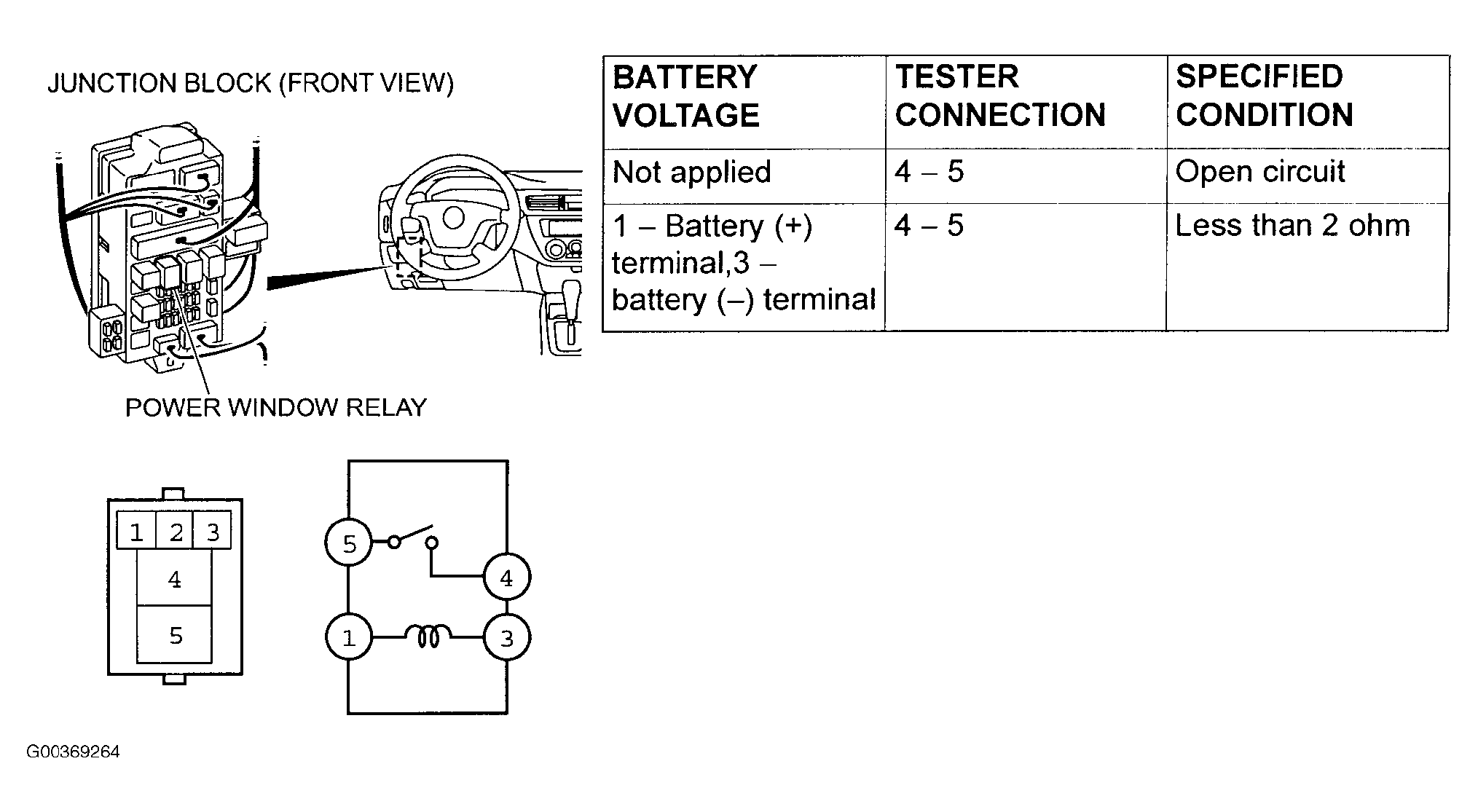

Fig 1: Checking Power Window Relay Continuity

G00369264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
