Abs Warning Light Relay

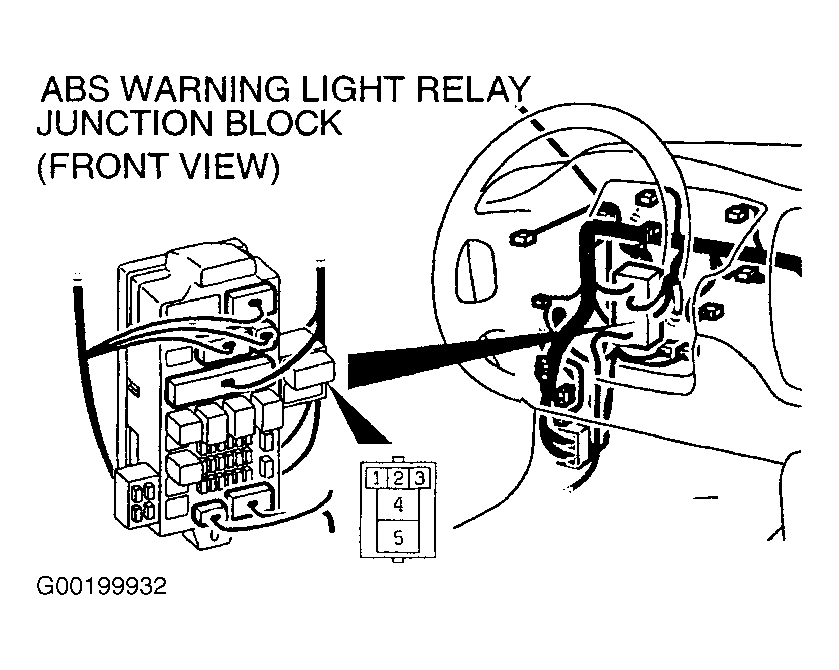

Remove ABS warning light relay from junction box in driver's side kick panel. See Figure . Using a DVOM, check for continuity between relay terminals No. 1 and 3. If continuity does not exist, replace relay. Apply battery positive to terminal No. 1 and battery ground to terminal No. 3. Continuity should exist between terminals No. 2 and No. 5. If continuity does not exist, replace relay.
