Generators & Regulators: Overhaul

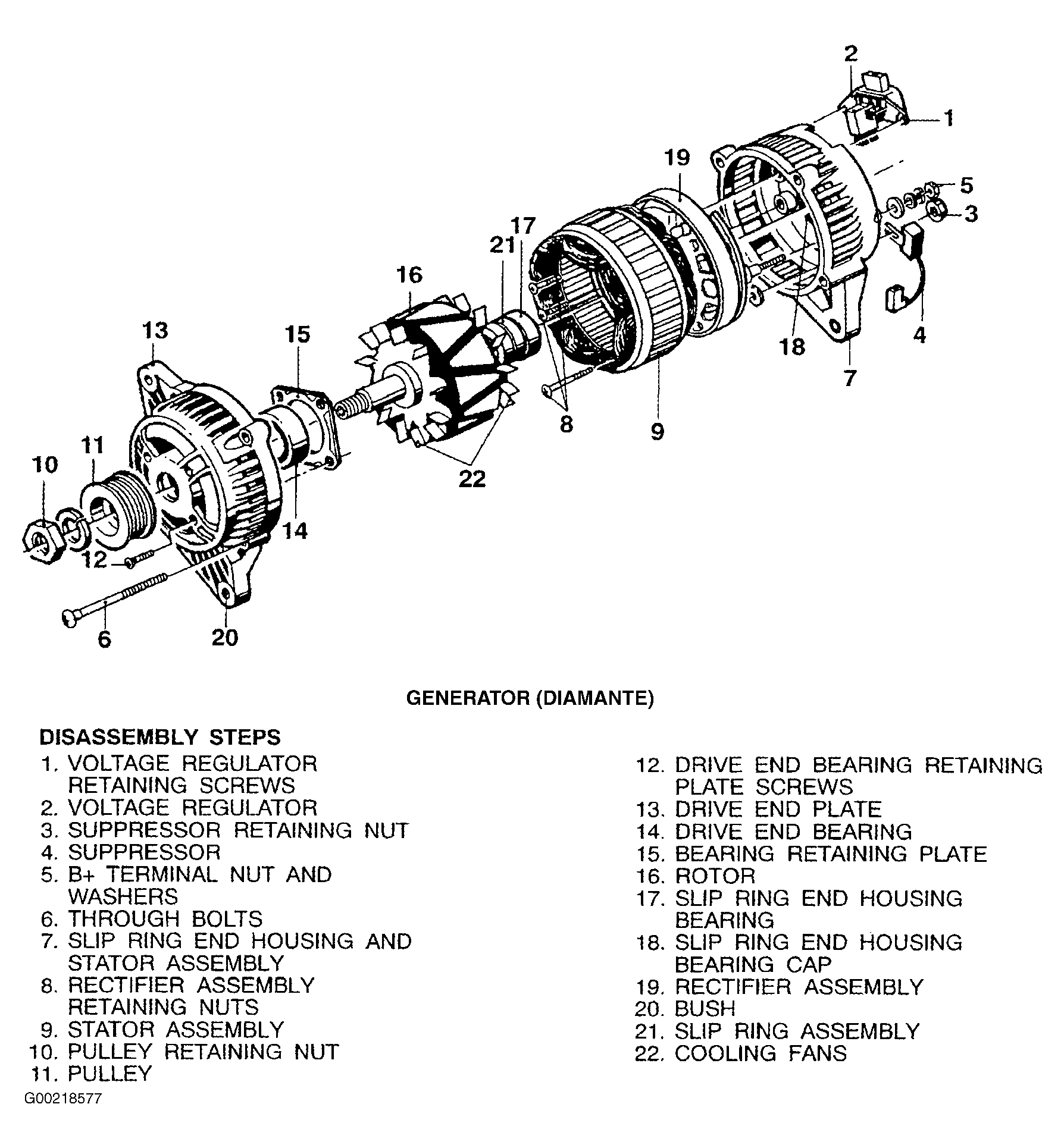

Fig 1: Exploded View Of Disassembly & Assembly (Diamante)
G00218577Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

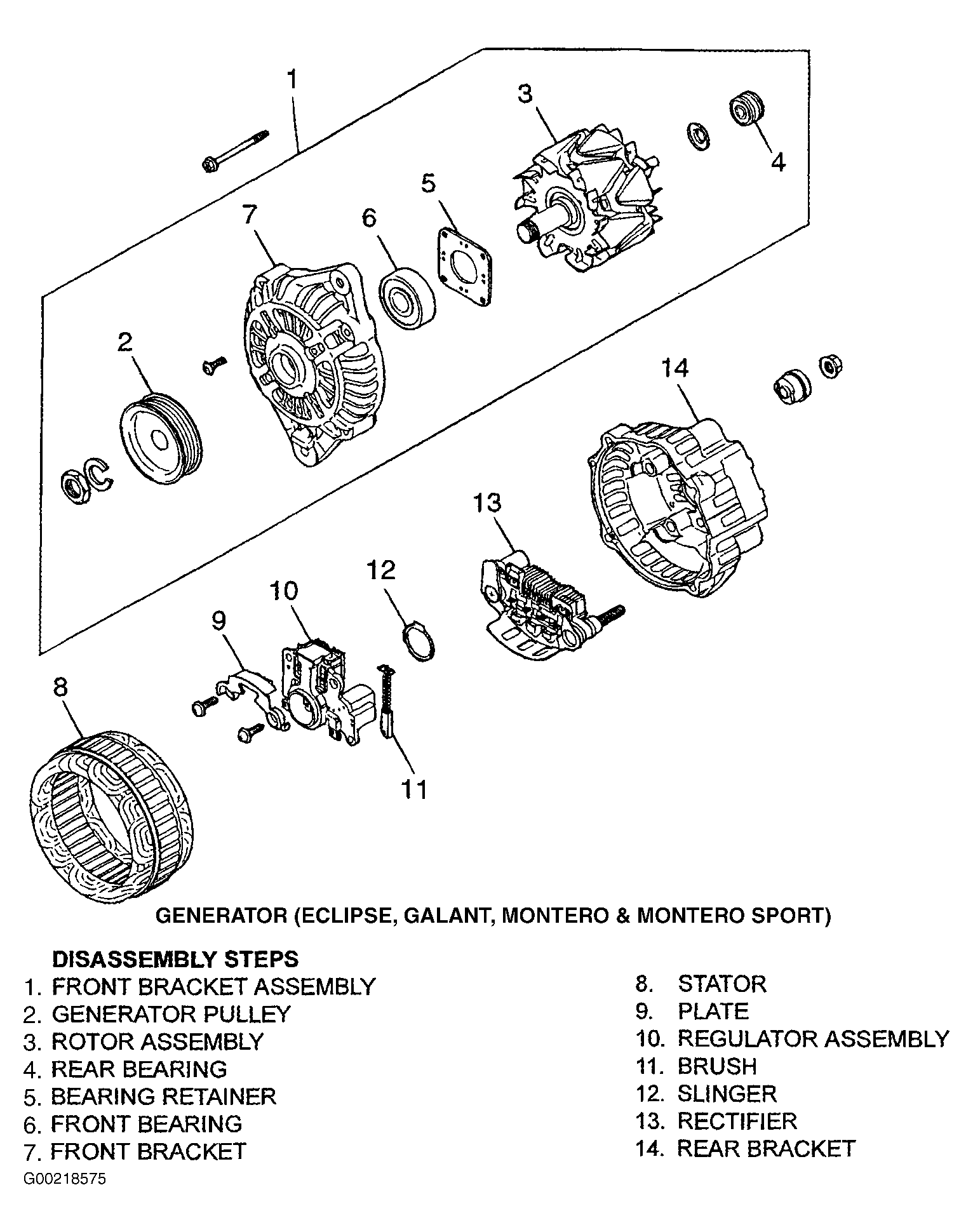

Fig 2: Exploded View Of Disassembly & Assembly (Eclipse, Galant, Montero & Montero Sport)
G00218575Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

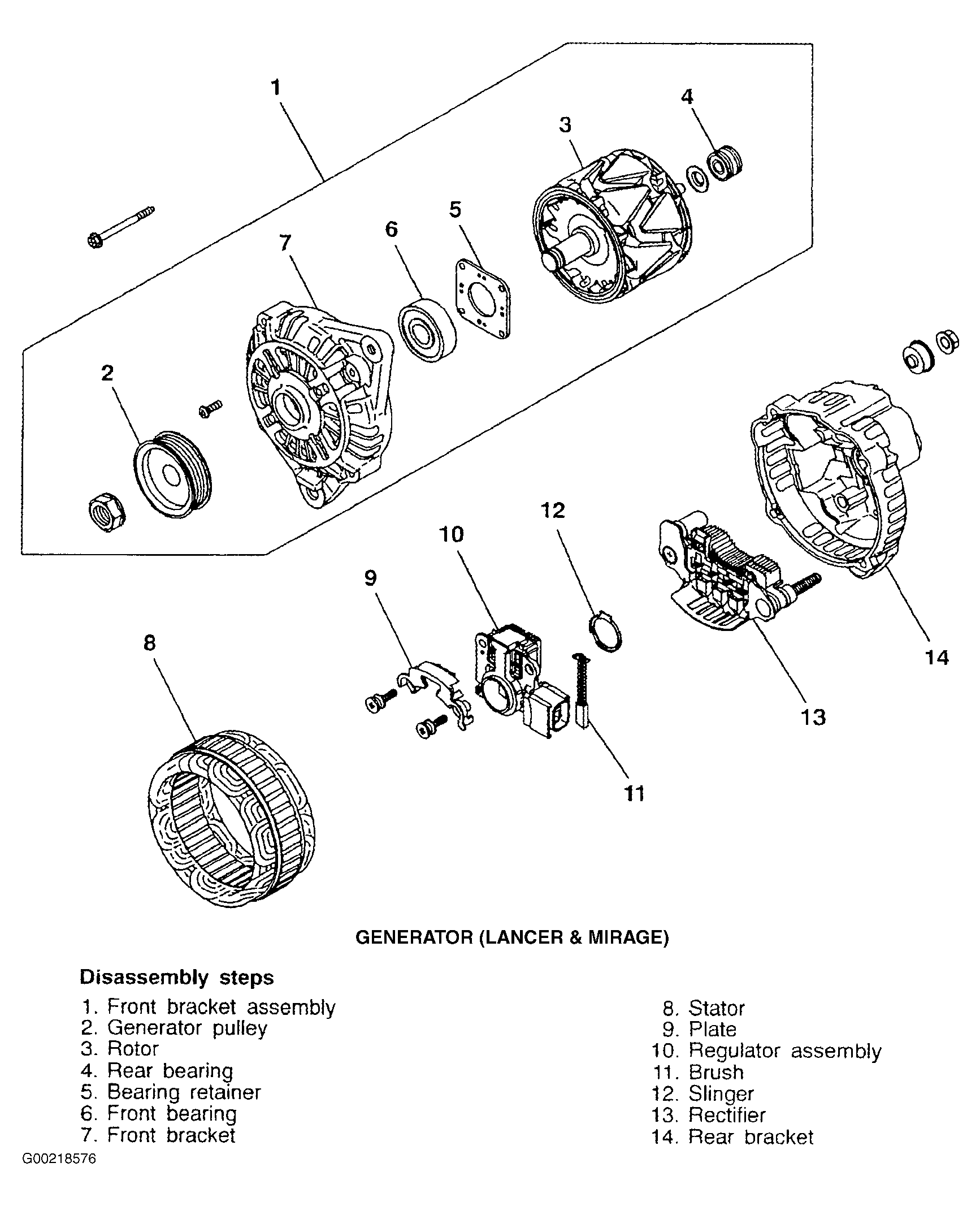

Fig 3: Exploded View Of Disassembly & Assembly (Lancer & Mirage)
G00218576Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
