Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses, which cause driveability and/or computer-indicated malfunctions.

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label specifications.

Fig 1: Vacuum Diagram (Diamante With Traction Control)

G99F50612

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Vacuum Diagram (Diamante Without Traction Control)

G99G50613

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Vacuum Diagram (Eclipse 2.4L, Eclipse Spyder 2.4L & Galant 2.4L)

G00005801

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

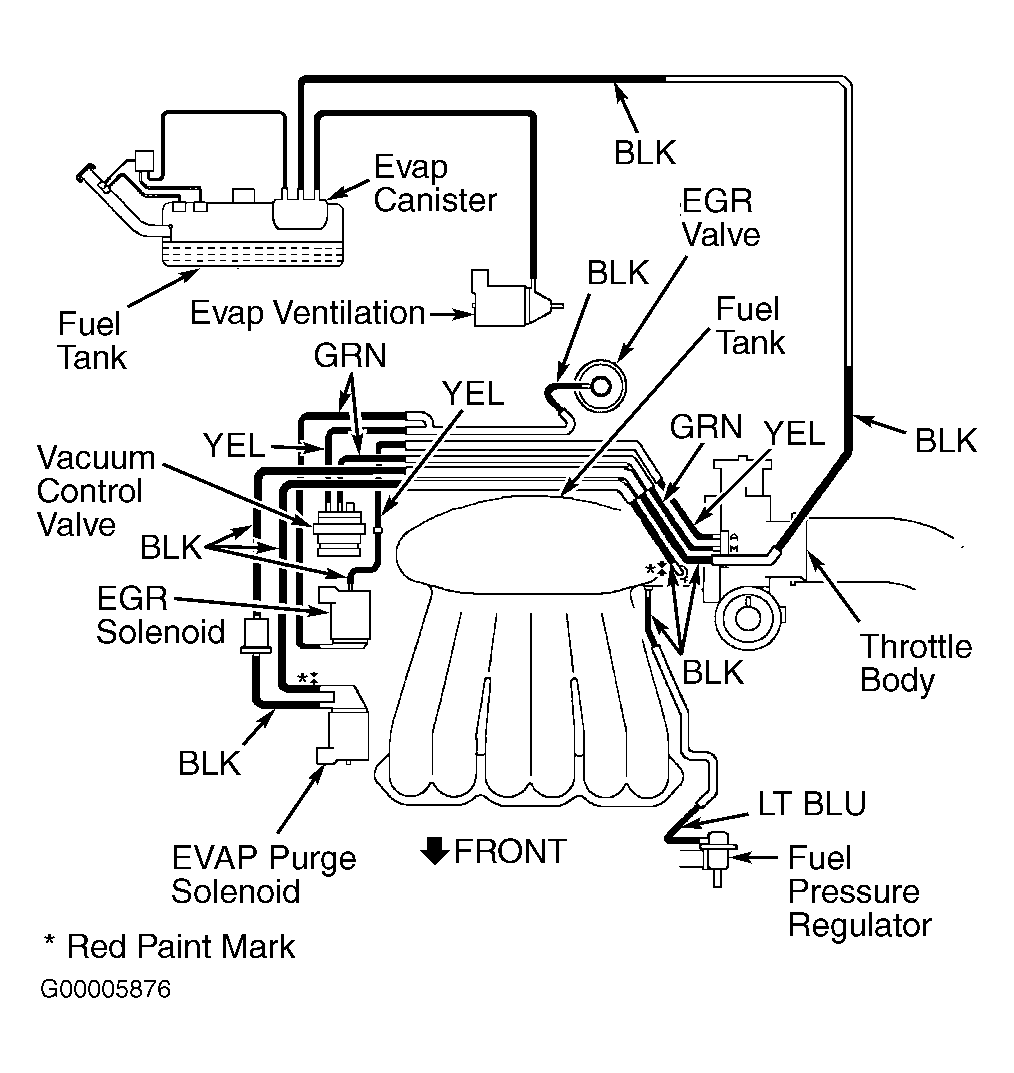

Fig 4: Vacuum Diagram (Eclipse 3.0L, Eclipse Spyder 3.0L & Galant 3.0L)

G00005876

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

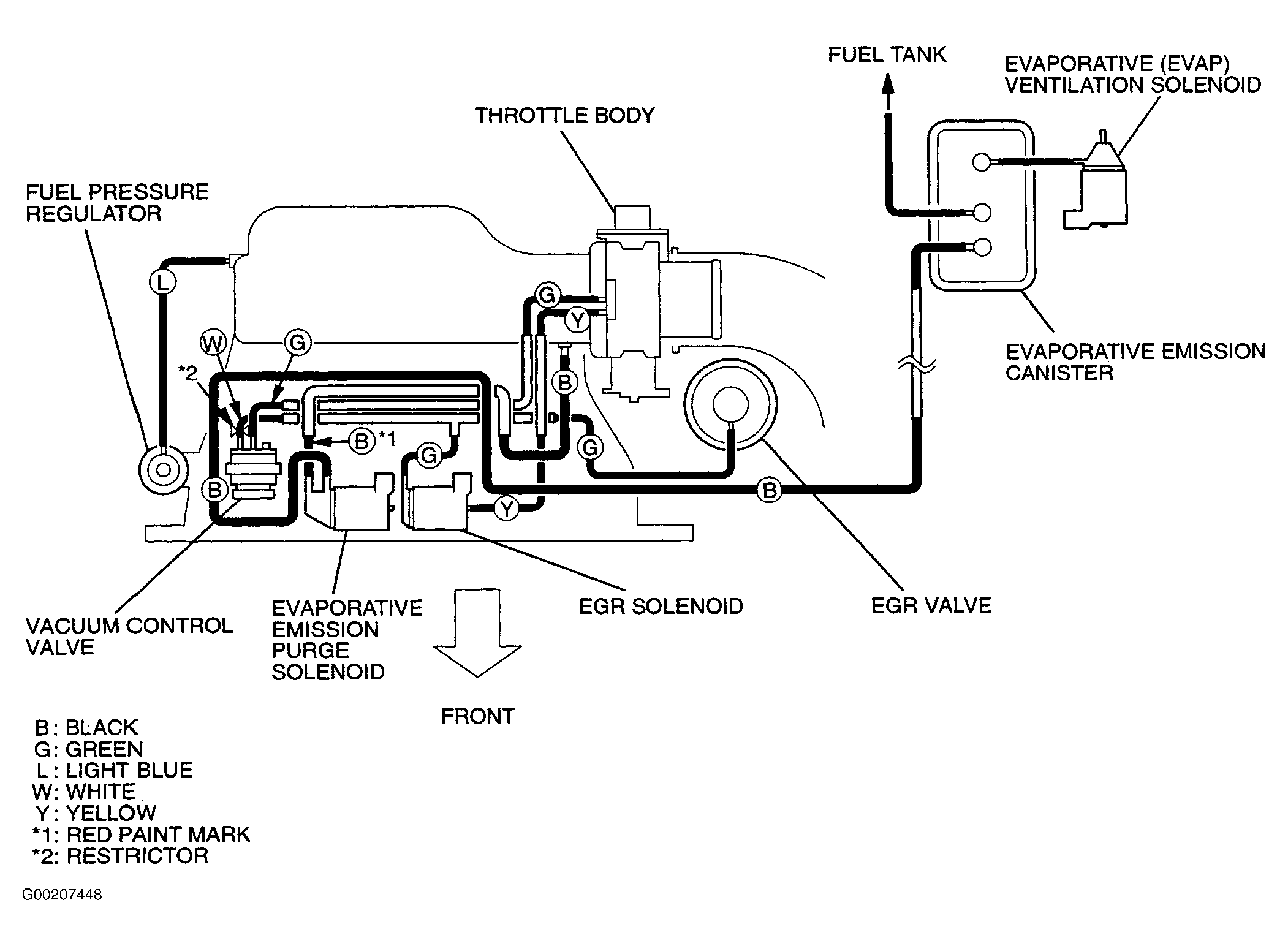

Fig 5: Vacuum Diagram (Lancer)

G00207448

Courtesy of SAAB-SCANIA OF AMERICA, INC.

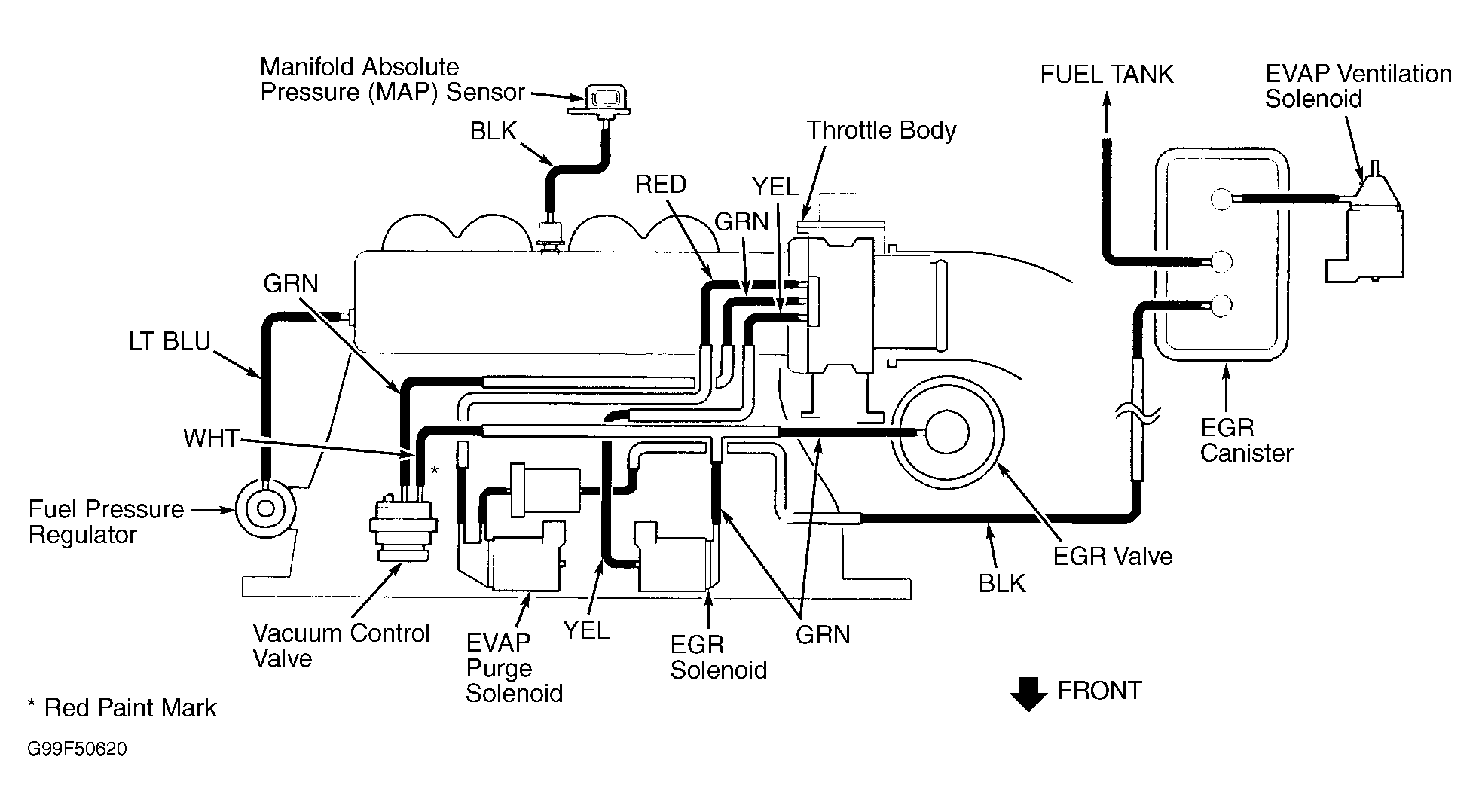

Fig 6: Vacuum Diagram (Mirage 1.5L)

G99F50620

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

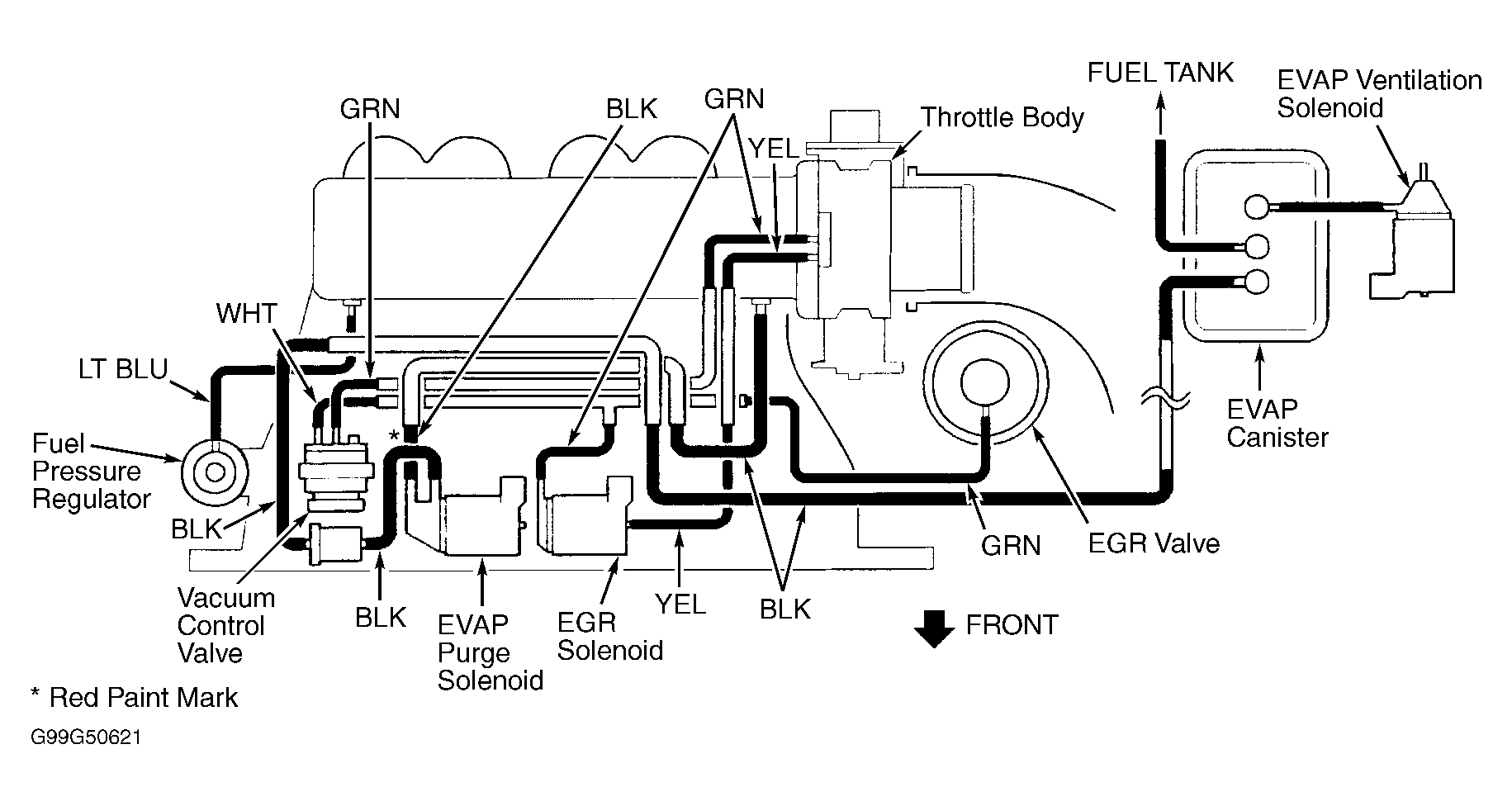

Fig 7: Vacuum Diagram (Mirage 1.8L)

G99G50621

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

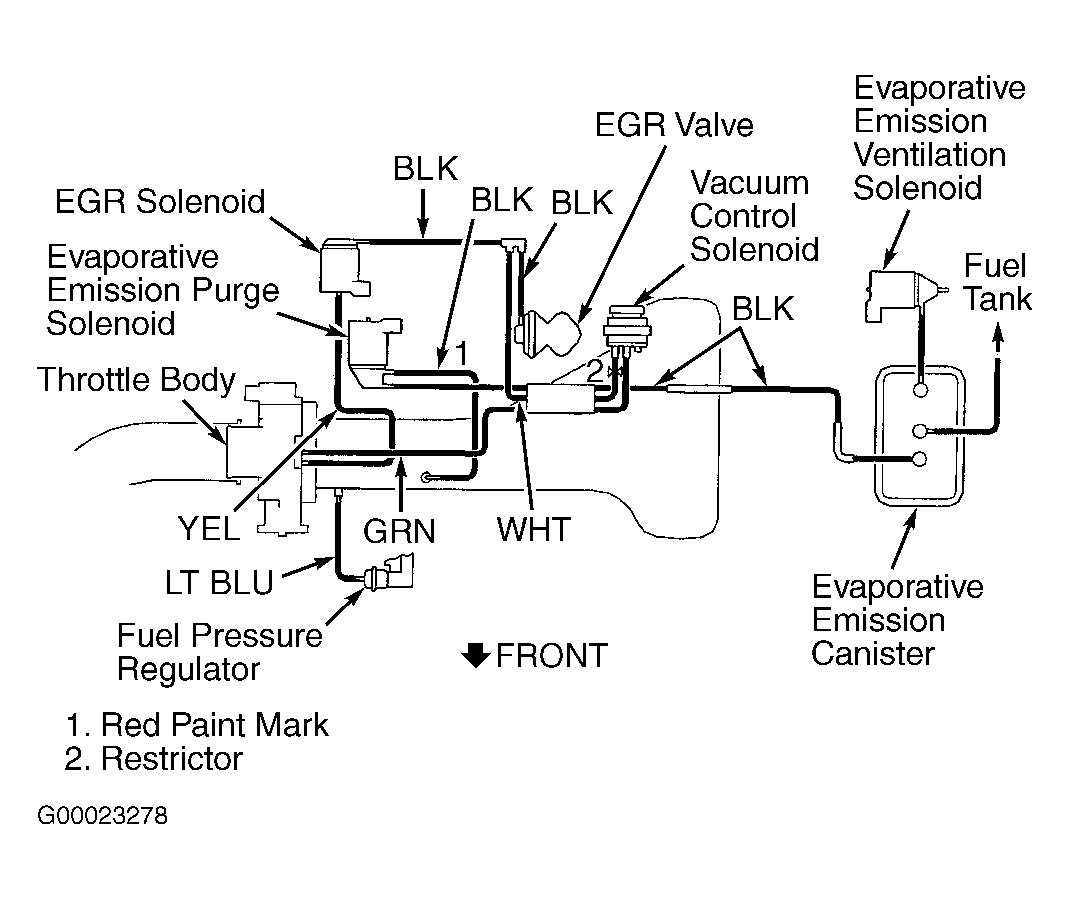

Fig 8: Vacuum Diagram (Montero)

G00023278

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Vacuum Diagram (Montero Sport 3.0L)

G00023282

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Vacuum Diagram (Montero Sport 3.5L)

G00023286

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
