Front Wheel Alignment Check And Adjustment: Toe-In

Standard value: 1 +/- 2 mm (0.04 +/- 0.09 inch)

1. Adjust the toe-in by undoing the clip and jam nut, and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
   NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.

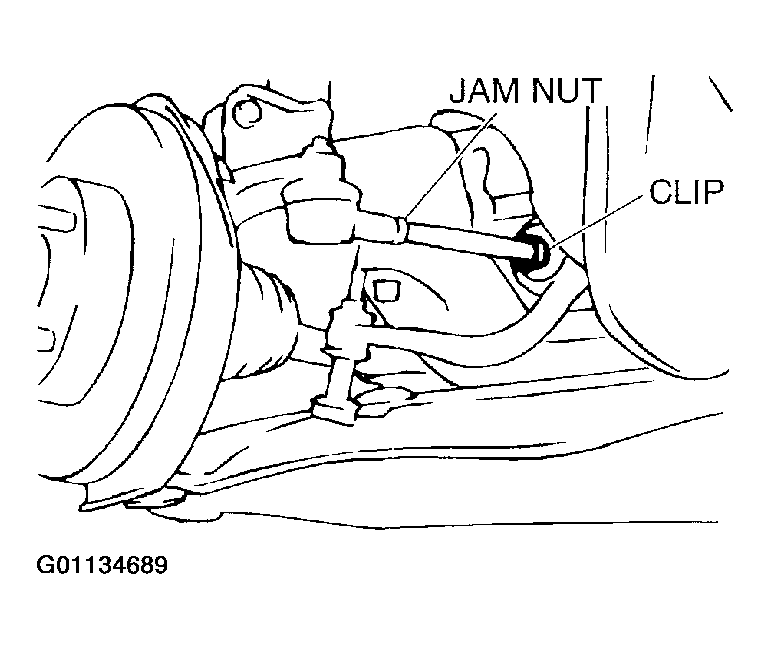

   Fig 1: Adjusting Toe-In

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Install the clip and tighten the jam nut to the specified torque.

   Standard value: 40 +/- 5 N.m (30 +/- 3 ft-lb)

3. Confirm that the toe-in is at the standard value.
4. Use a turning radius gauge to check that the steering angle is at the standard value.
