Removal And Installation: Notes

CAUTION: For vehicles with ABS, be careful when handling the pole piece at the tip of the speed sensor so as not to damage it by striking against other parts.

For strut assembly removal procedures, follow numbered steps in illustration. See Fig 1. For strut assembly installation procedures, follow numbers steps in illustration in reverse order.

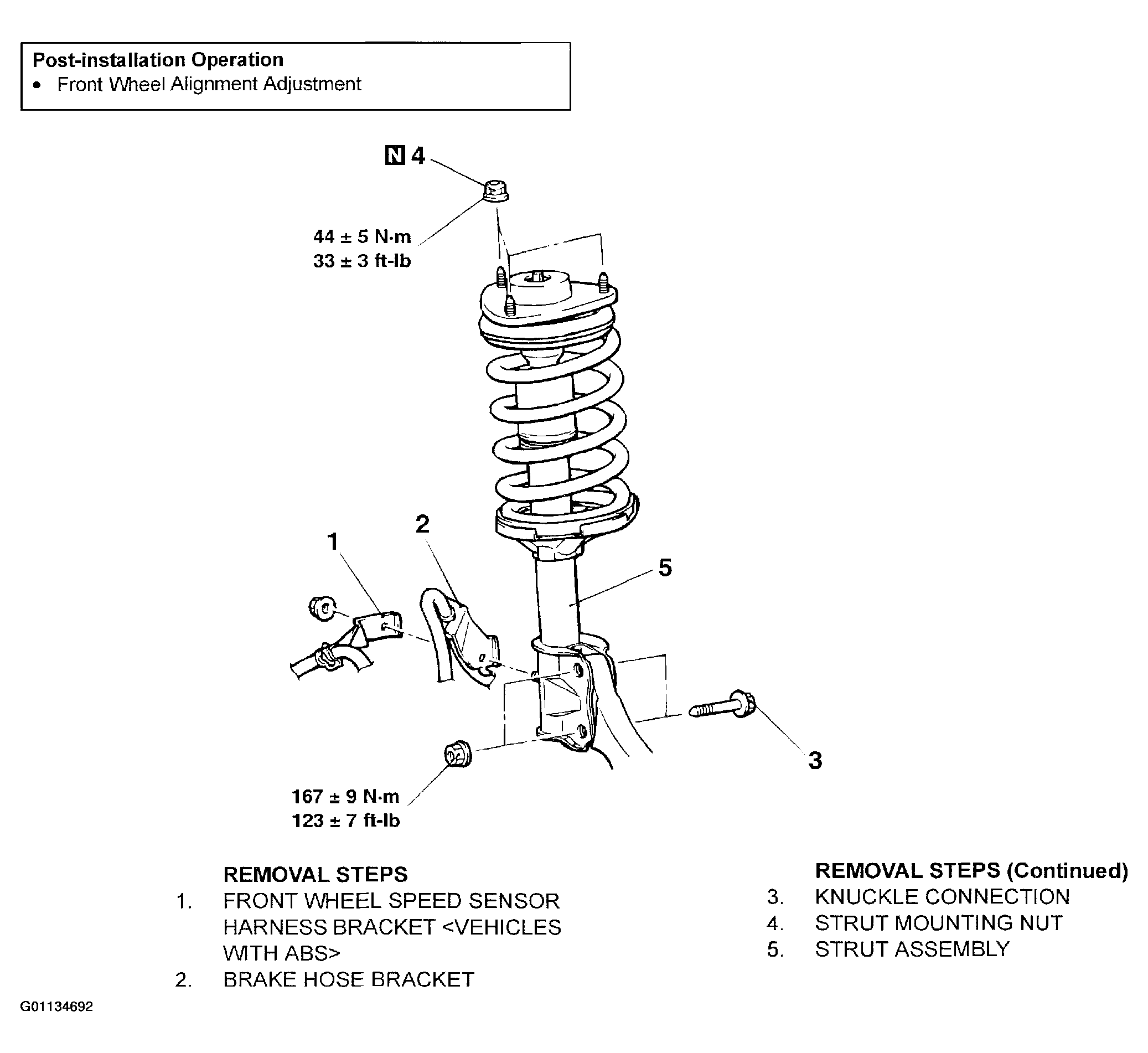

Fig 1: Removing & Installing Strut Assembly
G01134692Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
