Sectional View

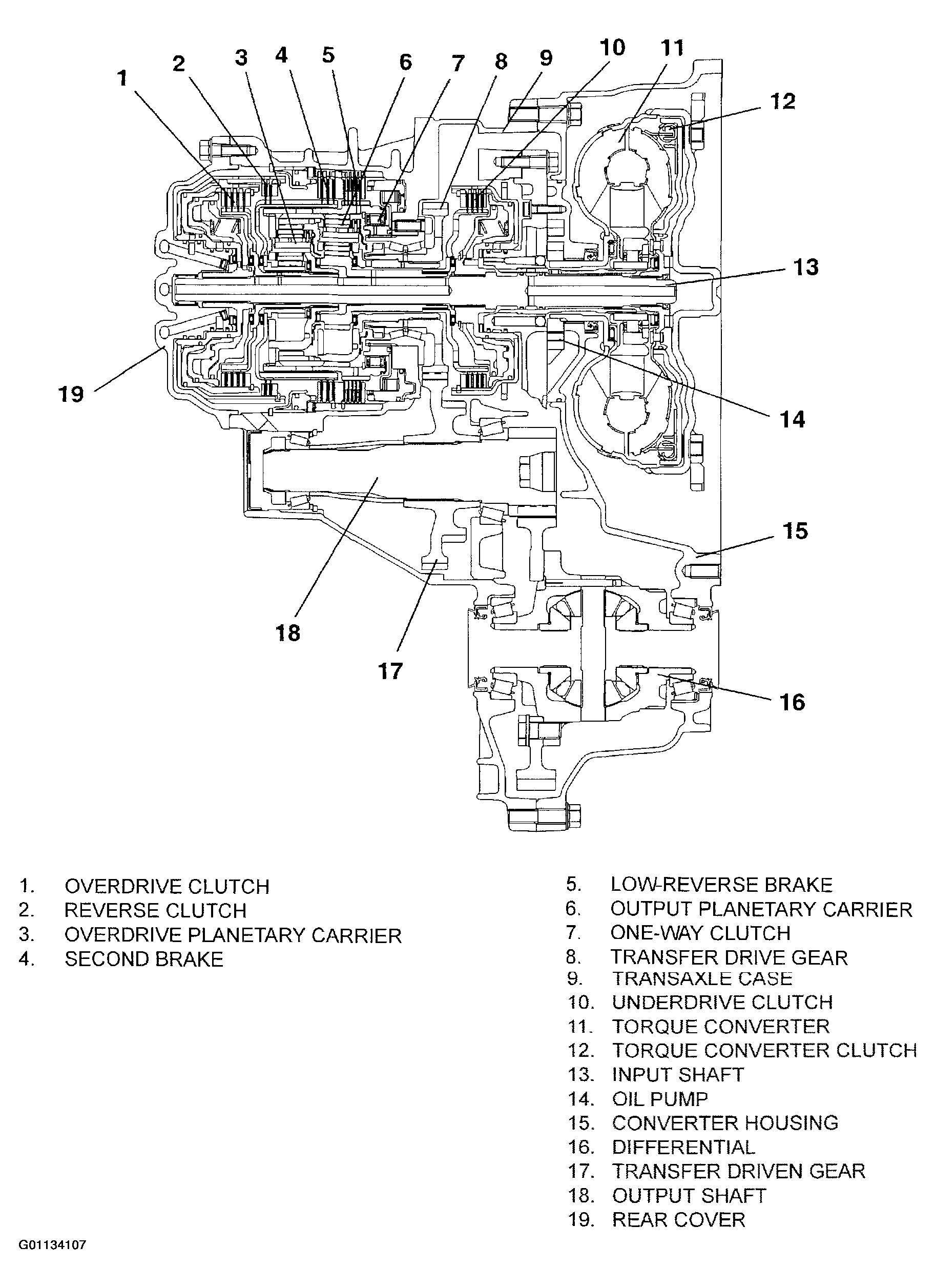

Fig 1: Identifying Sectional View
G01134107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
