Special Tools

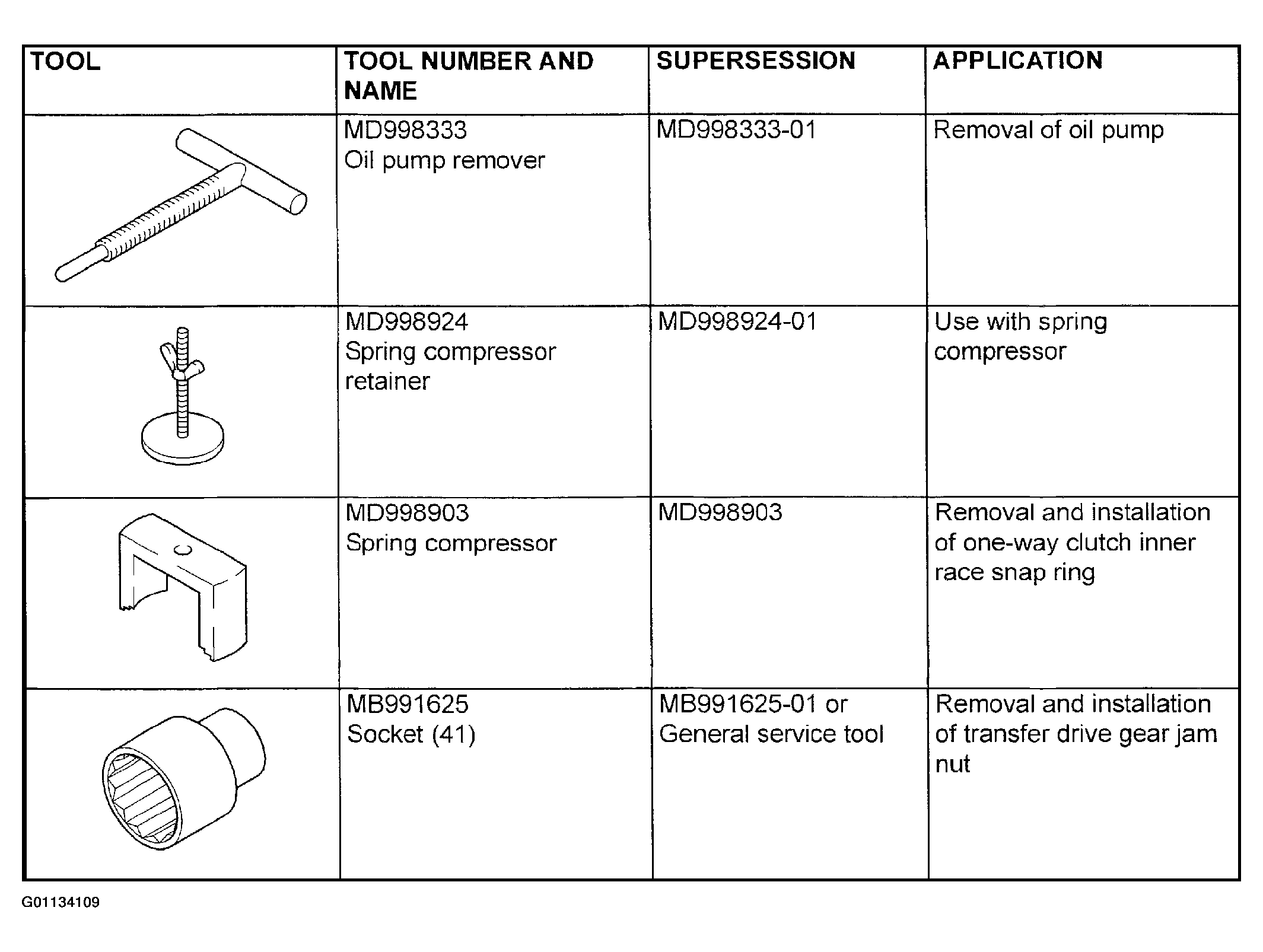

Fig 1: Identifying Special Tools (1 Of 4)
G01134109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

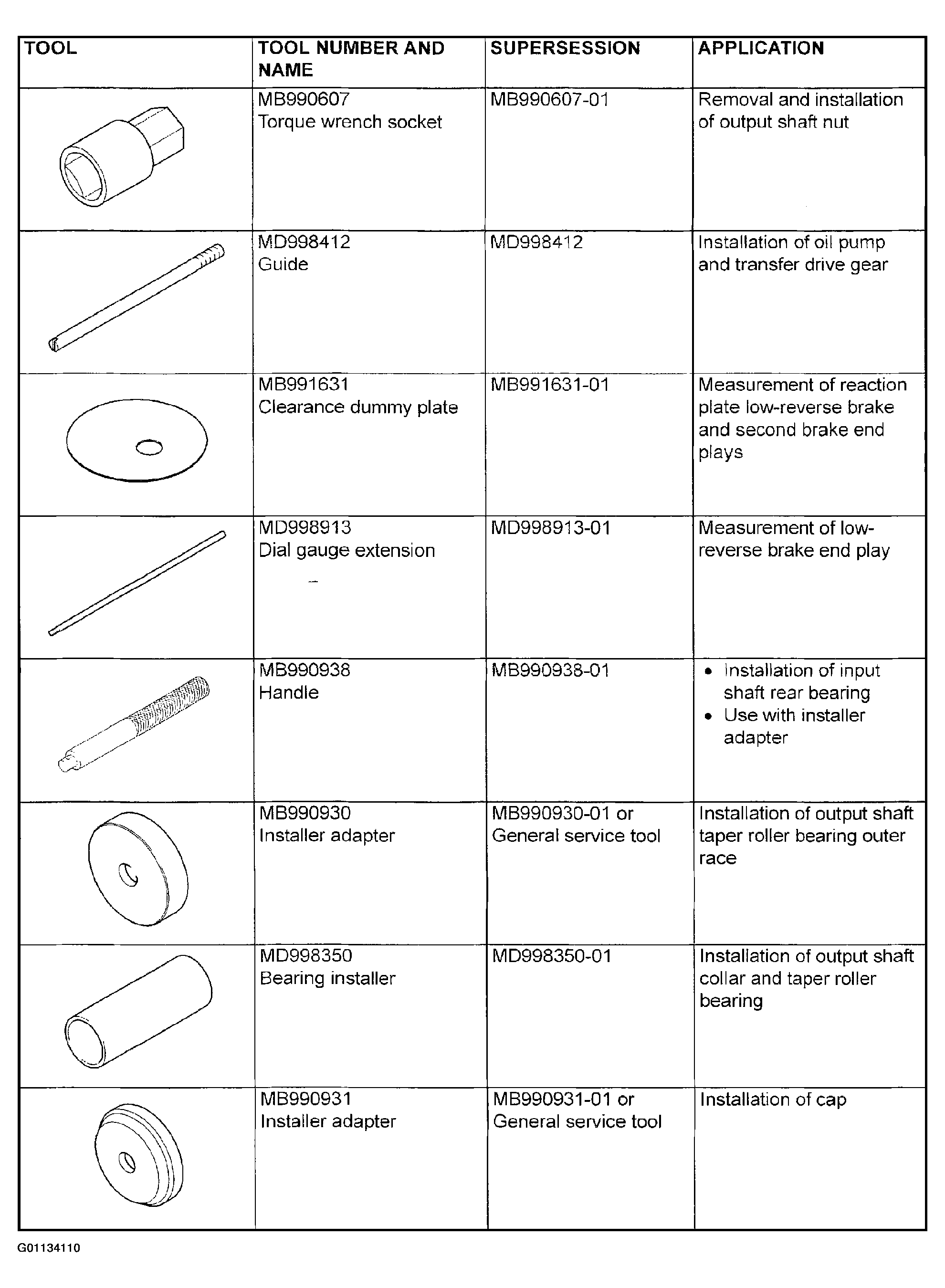

Fig 2: Identifying Special Tools (2 Of 4)
G01134110Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

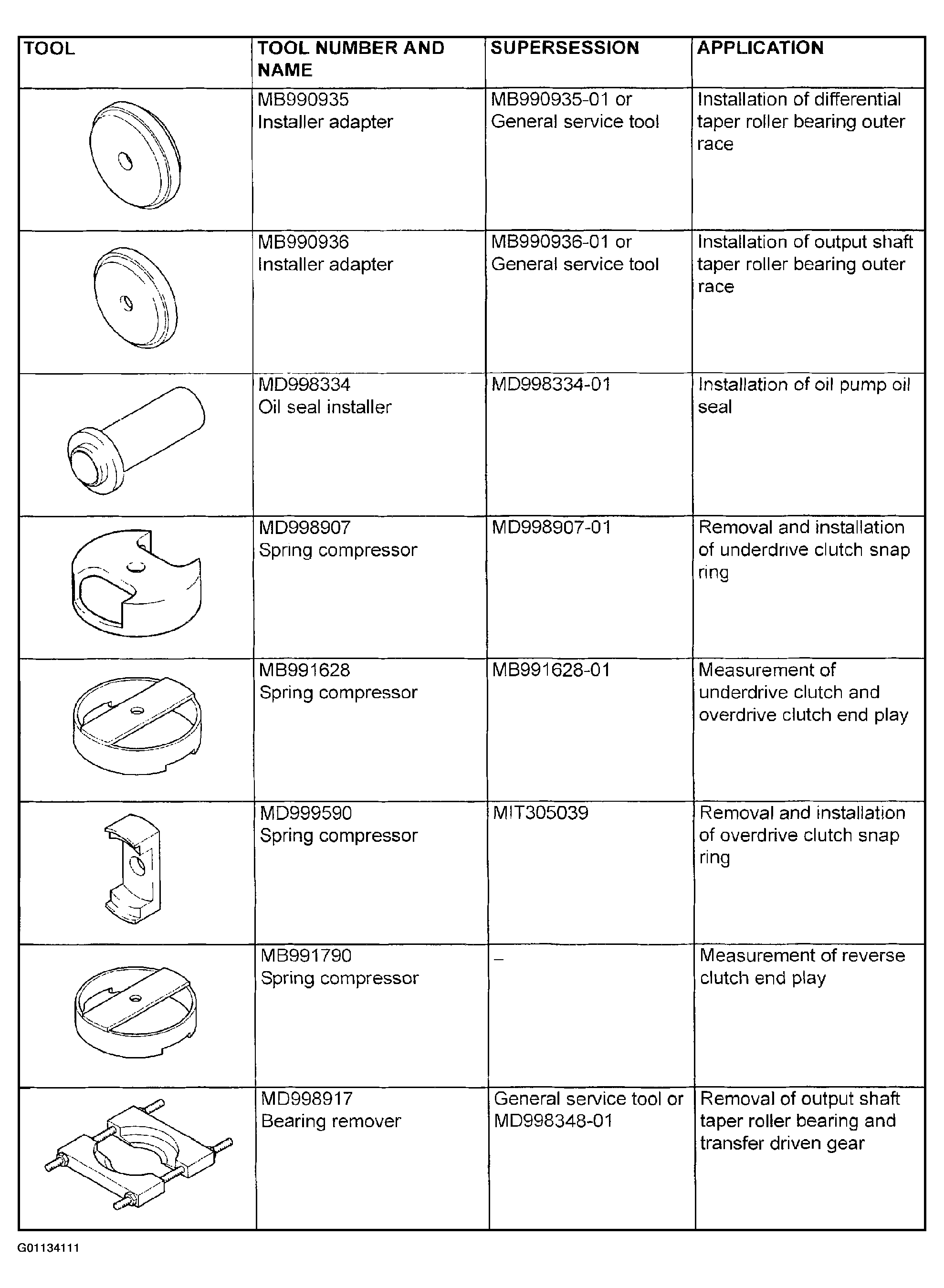

Fig 3: Identifying Special Tools (3 Of 4)
G01134111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

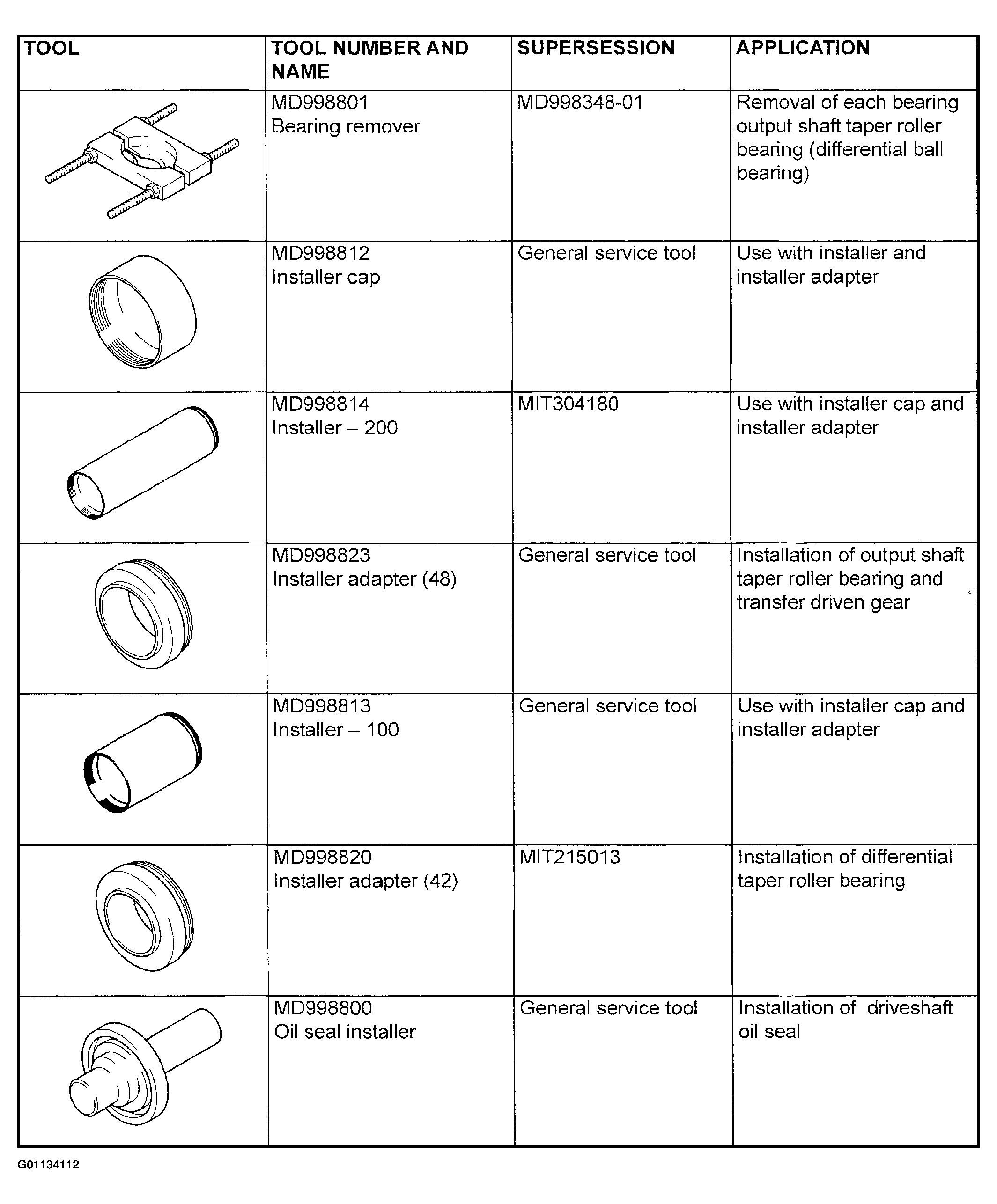

Fig 4: Identifying Special Tools (4 Of 4)
G01134112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
