Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

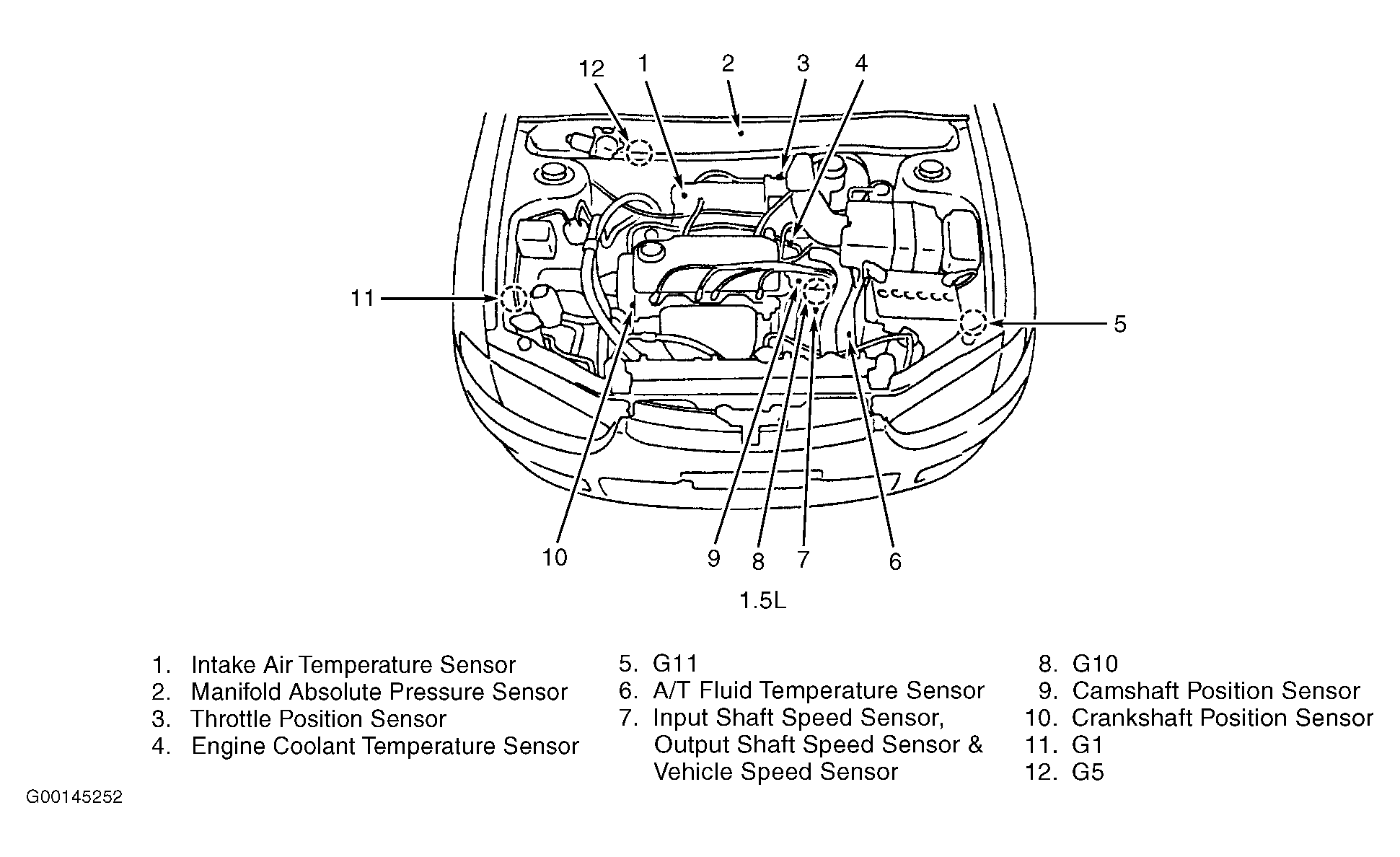

Fig 1: Engine Compartment (1.5L)
G00145252Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Engine Compartment (1.8L)
G00145253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Dash
G00145254Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
