Control Units

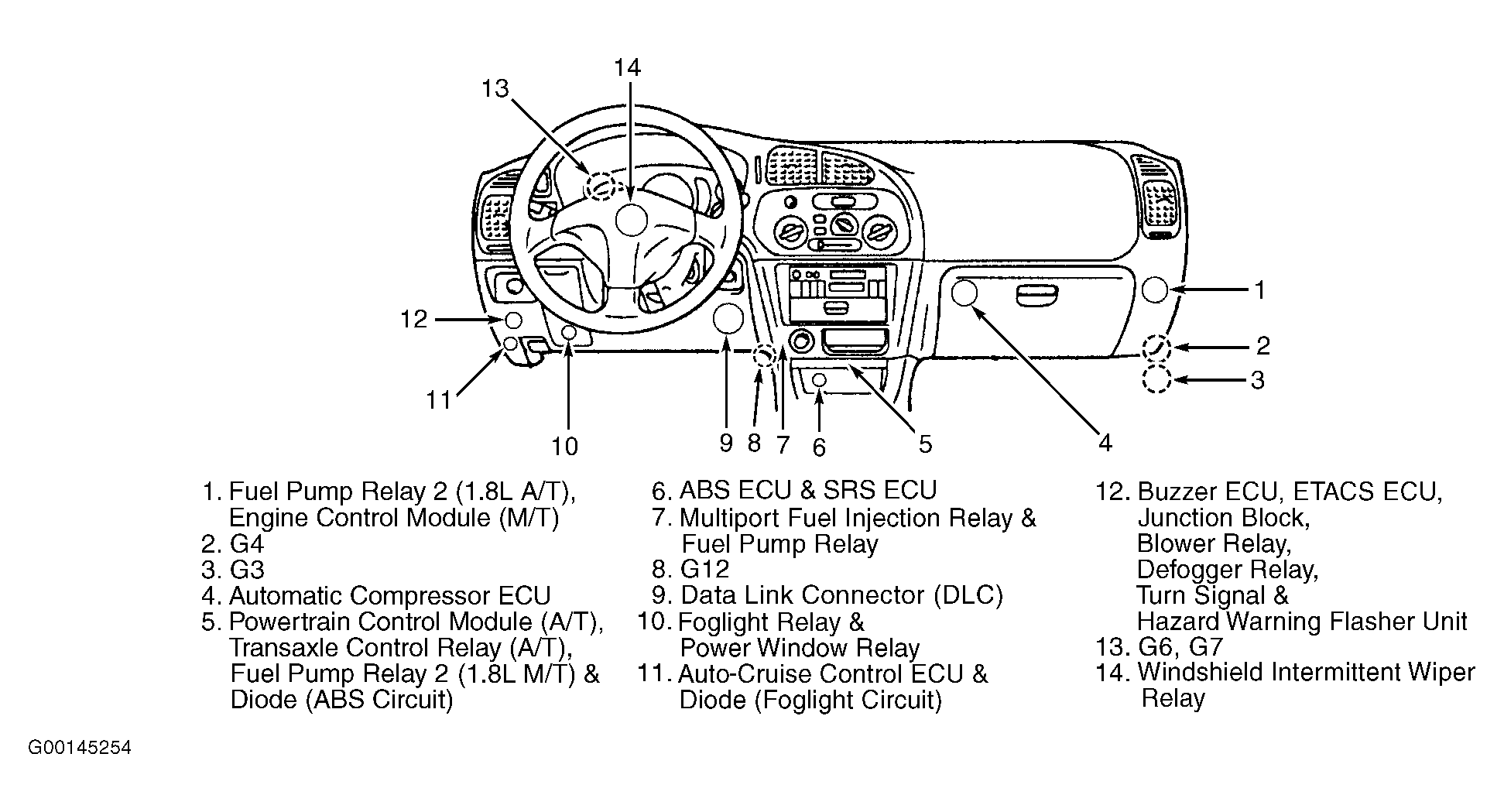

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS ECU | Behind center console. See Figure . |
| Auto-Cruise Control ECU | Under left side of dash. See Figure . |
| Automatic Compressor ECU | Behind glove box. See Figure . |
| Buzzer ECU | Under left side of dash, on junction block. See Figure . |
| Engine Control Module (M/T) | Under right side of dash, above kick panel. See Figure . |
| ETACS ECU | Under left side of dash, on junction block. See Figure . |
| Powertrain Control Module (A/T) | Behind center console. See Figure . |
| SRS ECU | Behind center console. See Figure . |
| Sun Roof ECU | Behind headliner, near sun roof switch. |
