Disassembly And Reassembly: Notes

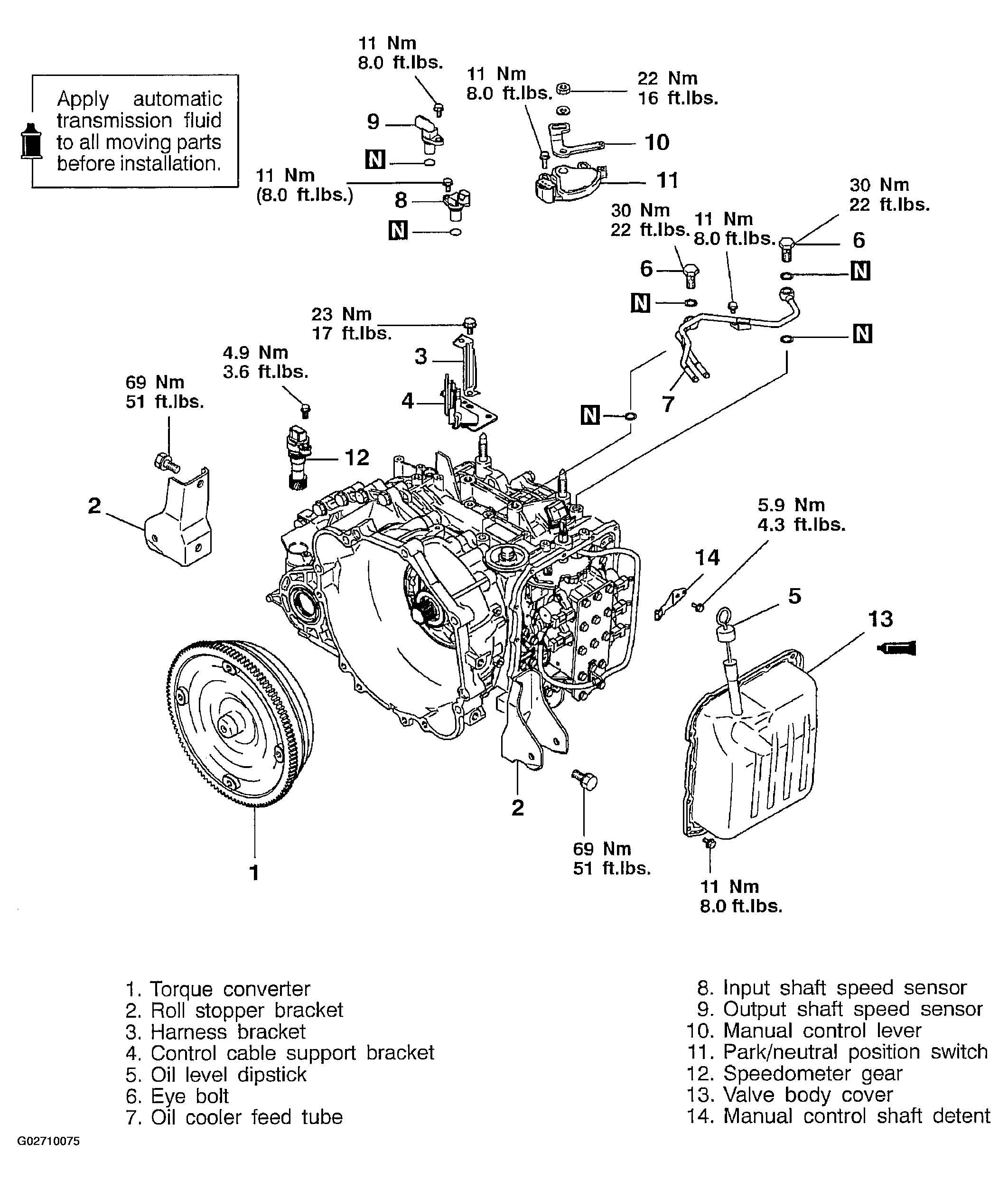

Fig 1: Exploded View Of Transaxle Components (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

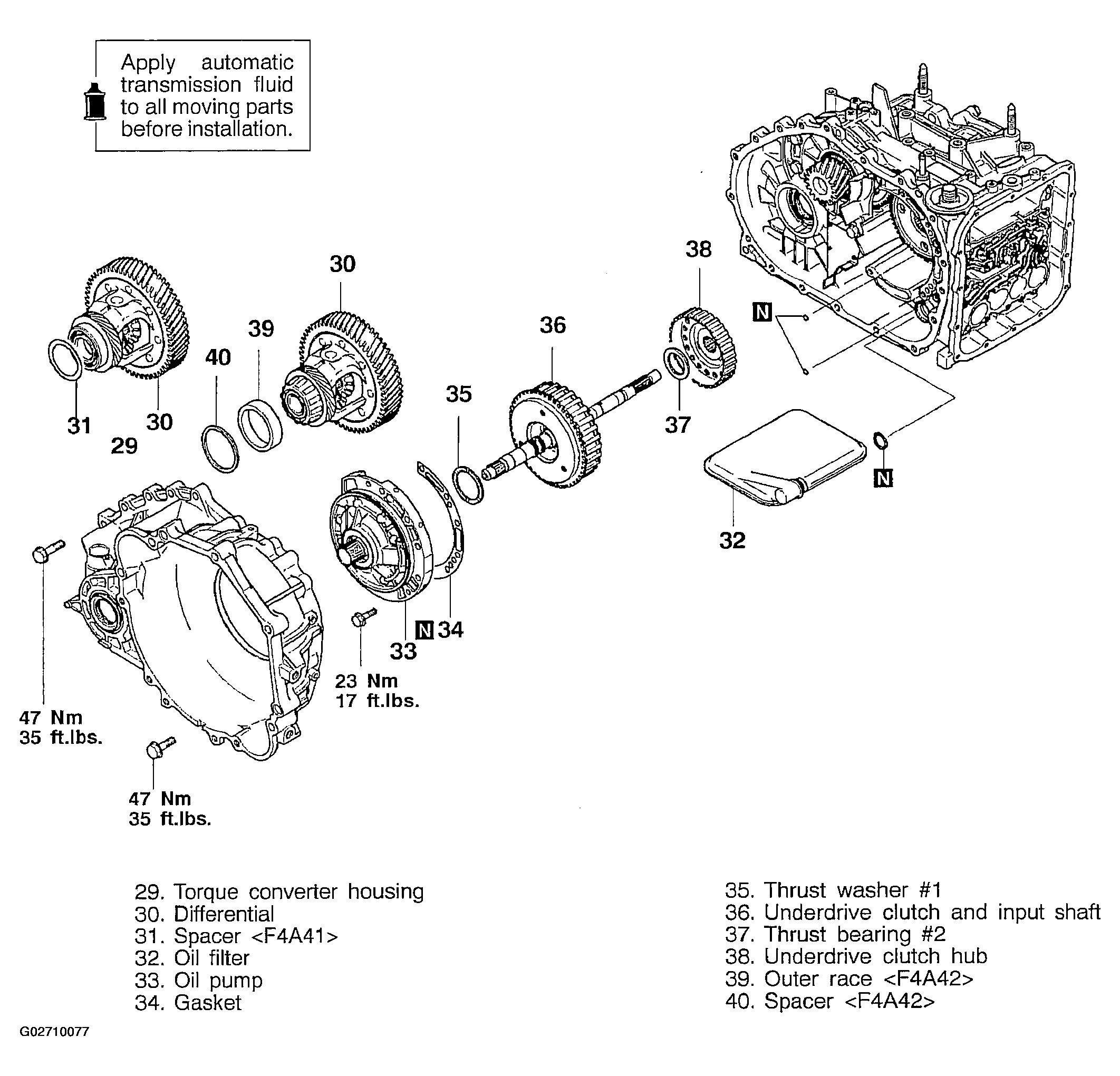

Fig 2: Exploded View Of Transaxle Components (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

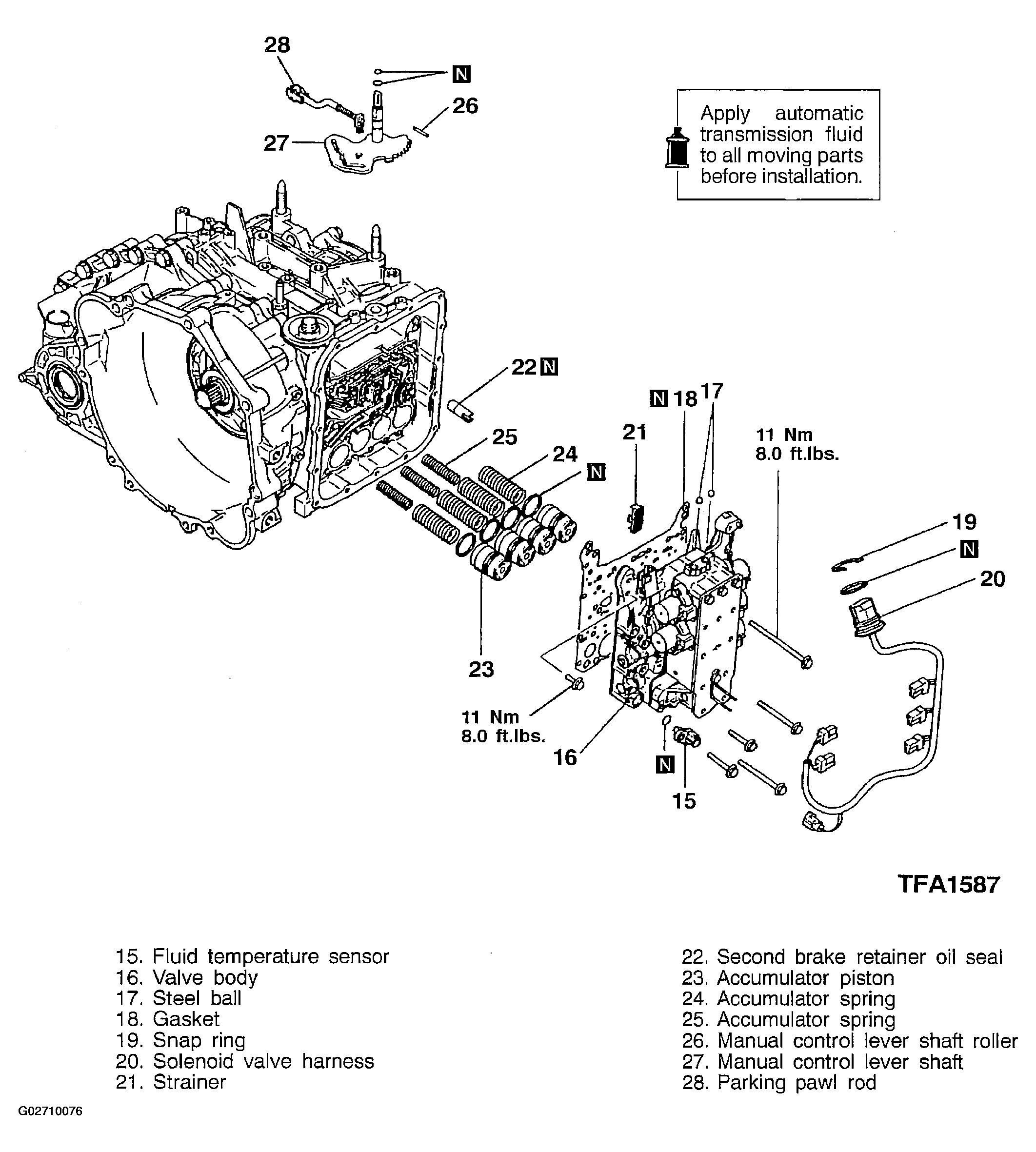

Fig 3: Exploded View Of Transaxle Components (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

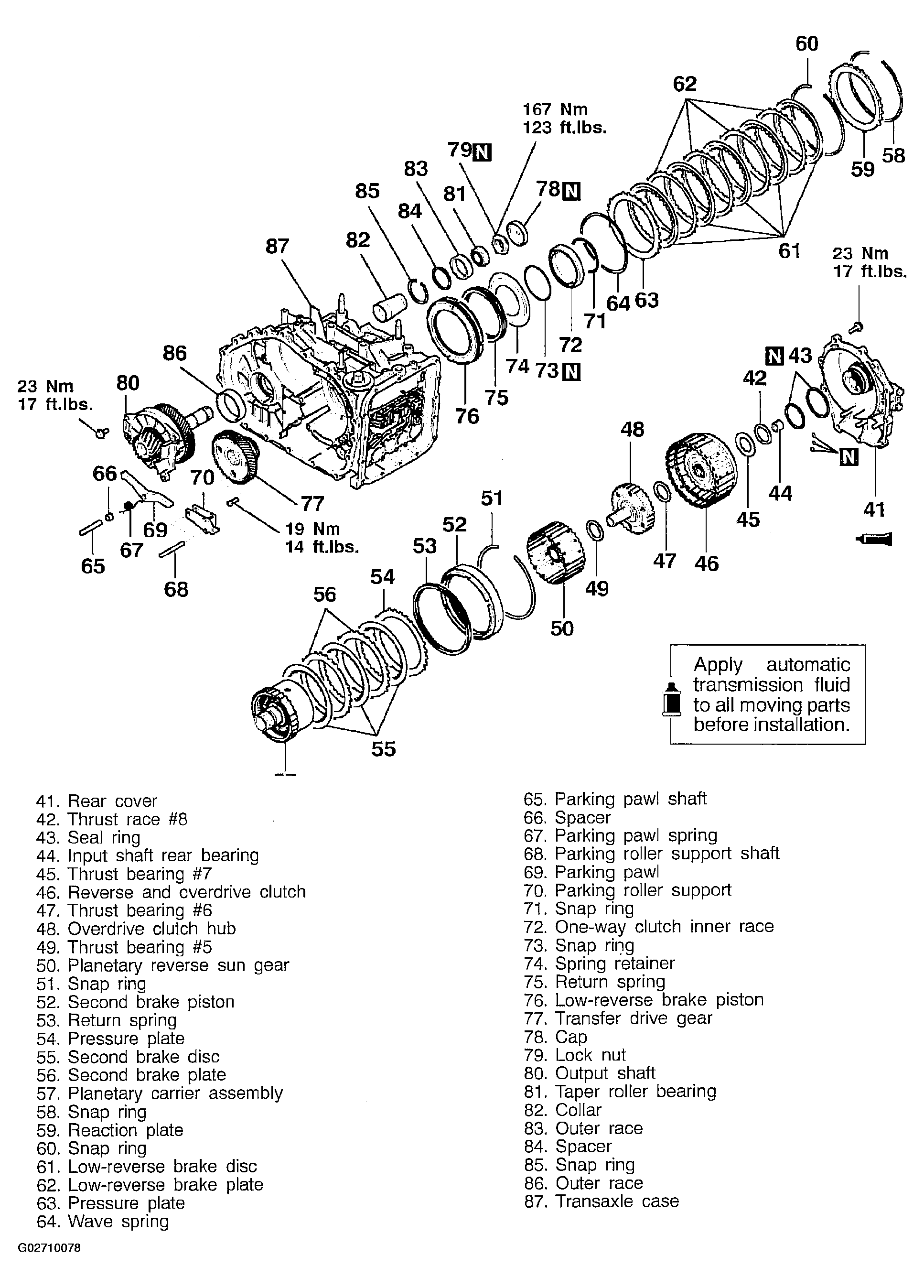

Fig 4: Exploded View Of Transaxle Components (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NO. OF BRAKE DISCS & PLATES

Brake	Model	Brake Disc	Brake Plate
Low-reverse brake	F4A41	4	3
Low-reverse brake	F4A42	5	4
Second brake	F4A41	2	1
Second brake	F4M2	3	2
