Terminal Identification

NOTE: The following terminal illustrations are shown as viewed from component side of connector.

TERMINAL IDENTIFICATION DIRECTORY

Connector	Illustration
Auto Cruise Control ECU	Fig 1
Camshaft Position (CMP) Sensor	Fig 2
Combination Meter	Fig 3
Crankshaft Position (CKP) Sensor	Fig 4
EGR Solenoid	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Fuel Gauge Unit/Fuel Temperature Sensor	Fig 7
Fuel Injector	Fig 8
Fuel Injector Intermediate	Fig 9
Fuel Tank Differential Pressure (FTDP) Sensor	Fig 10
Fuel Tank Differential Pressure (FTDP) Sensor Intermediate	Fig 11
Fuel Pump Relay	Fig 15
Heated Oxygen Sensor (HO2S)	Fig 12
Idle Air Control (IAC) Motor	Fig 13
Manifold Differential Pressure (MDP) Sensor	Fig 14
MFI Relay	Fig 15
OBD-II DLC	Fig 16
Powertrain Control Module (PCM)	Fig 17
Purge Solenoid	Fig 18
Throttle Position (TP) Sensor	Fig 19
Vehicle Speed Sensor (VSS)	Fig 20
Ventilation Solenoid	Fig 21
Volume Airflow (VAF) Sensor	Fig 22
Intermediate Connectors	Fig 23

Fig 1: Identifying Auto-Cruise Control ECU Connector Terminals

G00023300

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Camshaft Position (CMP) Sensor Connector Terminals

G95J31137

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Combination Meter Connector C-04 Terminals

G00005818

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Crankshaft Position (CKP) Sensor Connector Terminals

G95H31135

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Identifying EGR Solenoid Connector Terminals

G98A12419

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Identifying Engine Coolant Temperature (ECT) Sensor Connector Terminals

G00005803

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Identifying Fuel Gauge Unit/Fuel Temperature Sensor Connector Terminals

G00140033

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Identifying Fuel Injector Connector Terminals

G99D52616

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Identifying Fuel Injector Intermediate Connector A-04 Terminals

G96H09829

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Identifying Fuel Tank Differential Pressure (FTDP) Sensor Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Identifying Fuel Tank Differential Pressure (FTDP) Sensor Intermediate Connector E-44 Terminals

G96J06370

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals

G95G31159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Identifying Idle Air Control (IAC) Motor Connector Terminals

G95I31151

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Identifying Manifold Differential Pressure (MDP) Sensor Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Identifying MFI Relay & Fuel Pump Relay Connector Terminals

G96A09835

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Identifying OBD-II Data Link Connector (DLC) Terminals

G96G06364

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

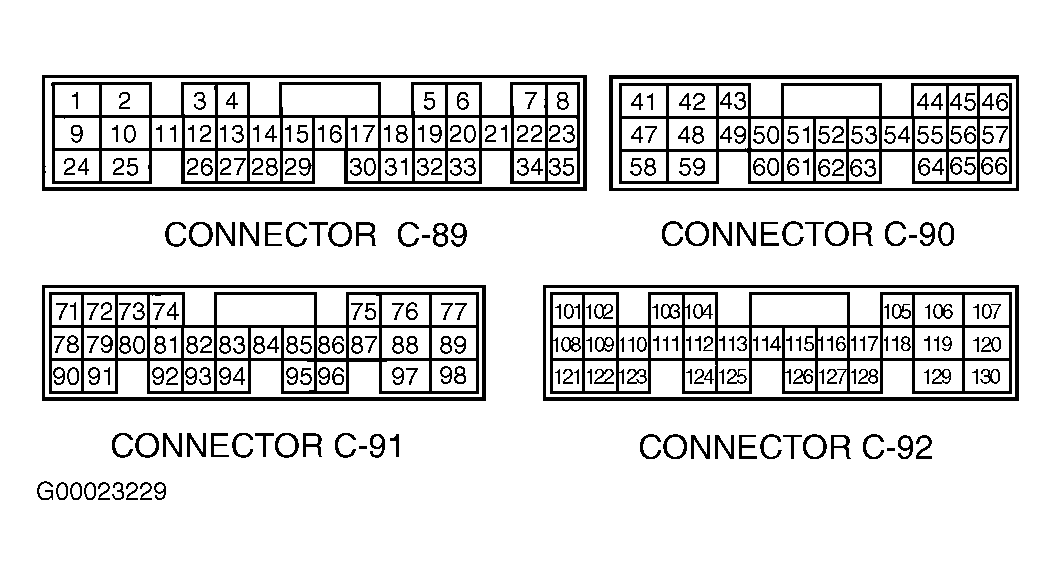

Fig 17: Powertrain Control Module Connector Terminal Identification

G00023229

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Identifying Purge Solenoid Connector Terminals

G00005870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Identifying Throttle Position (TP) Sensor Connector Terminals

G95A31534

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Identifying Vehicle Speed Sensor (VSS) Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Identifying Ventilation Solenoid Connector Terminals

G00005870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Identifying Volume Air Flow (VAF) Sensor Connector Terminals

G98A12435

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

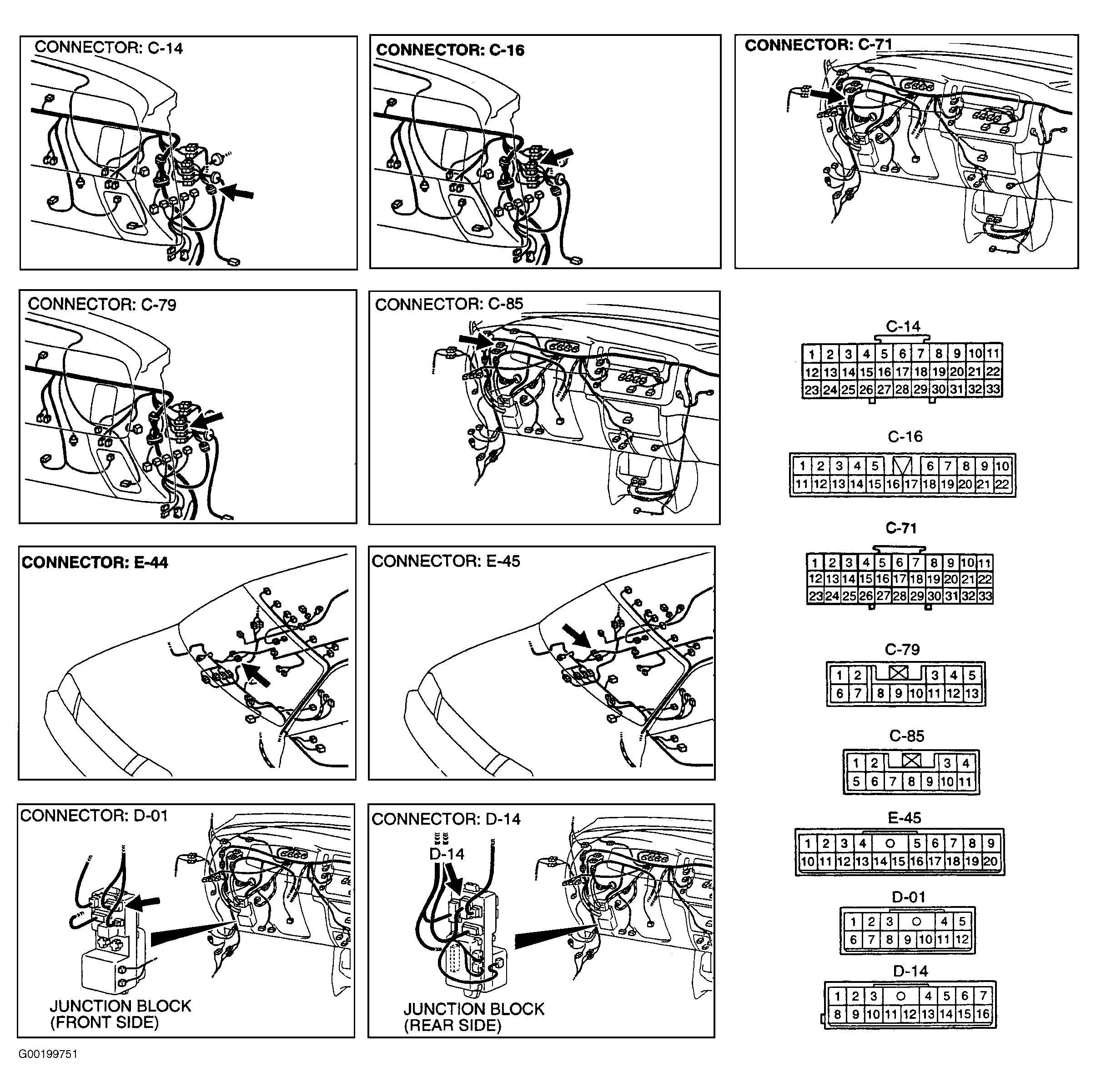

Fig 23: Identifying Intermediate Connectors & Terminals

G00199751

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
