Home >> Mitsubishi >> 2002 >> Montero XLS >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Inspection >> Power Window Relay Continuity Check

Power Window Relay Continuity Check

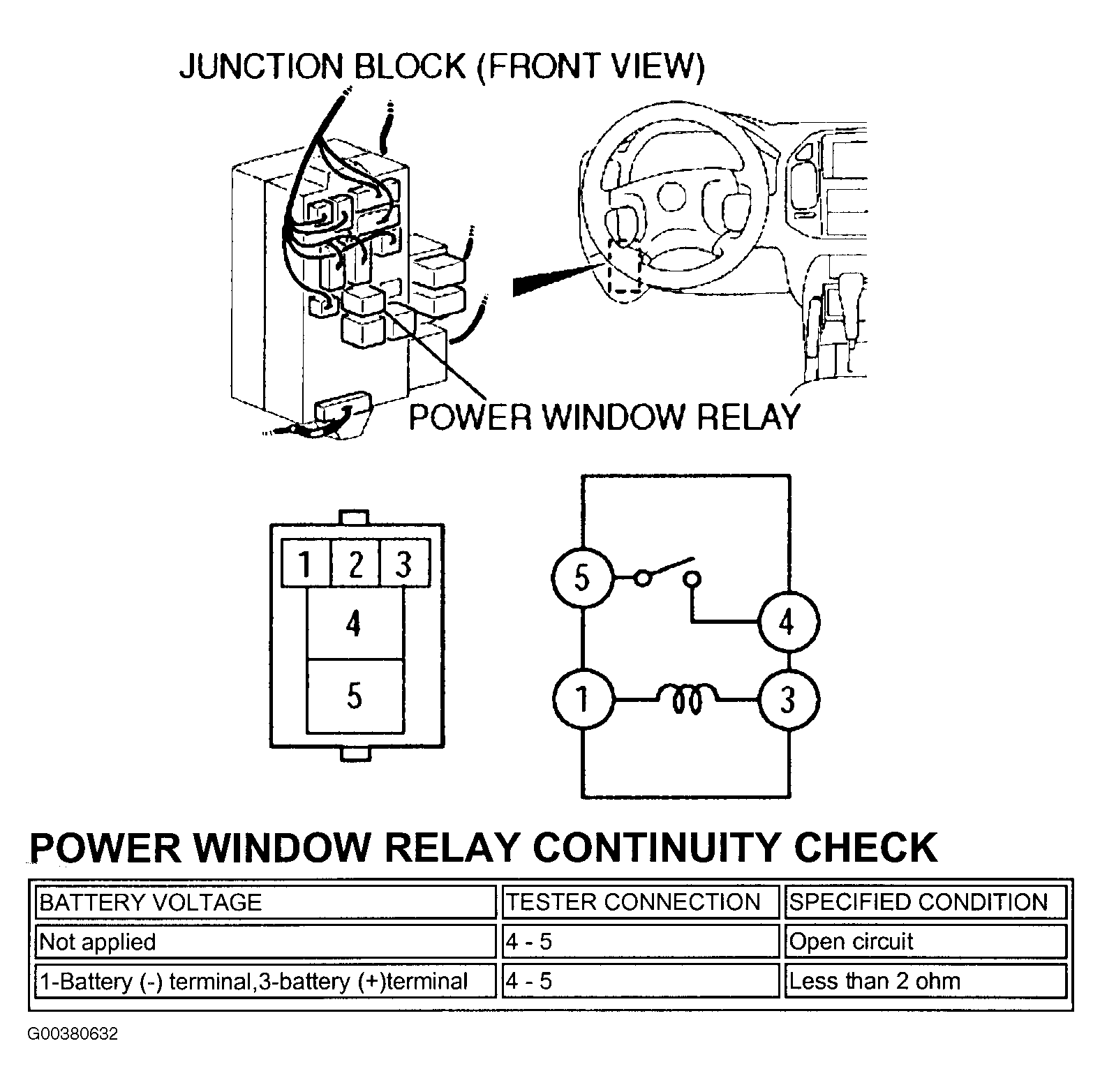

Fig 1: Checking Power Window Relay Continuity

G00380632

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
