Center Differential Lock Detection Switch Check

Check for continuity between the terminal of the brown connector located on the transfer case.

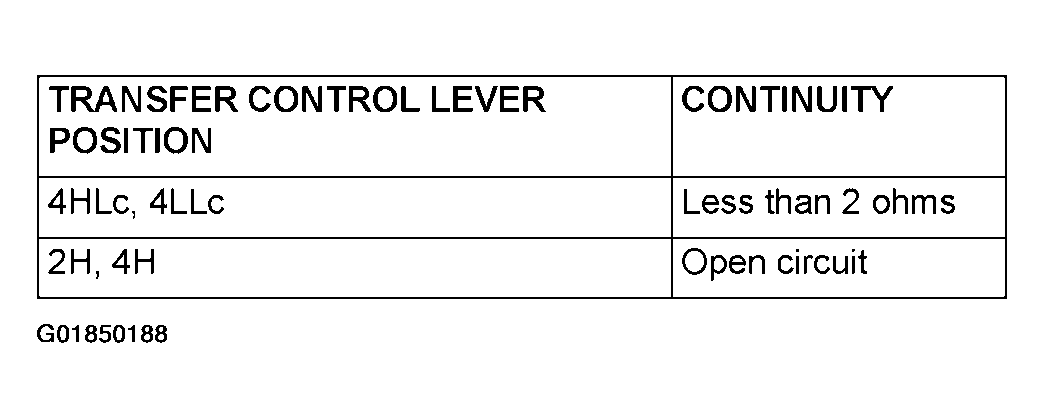

Fig 1: Checking Continuity Between Terminal Of Brown Connector Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

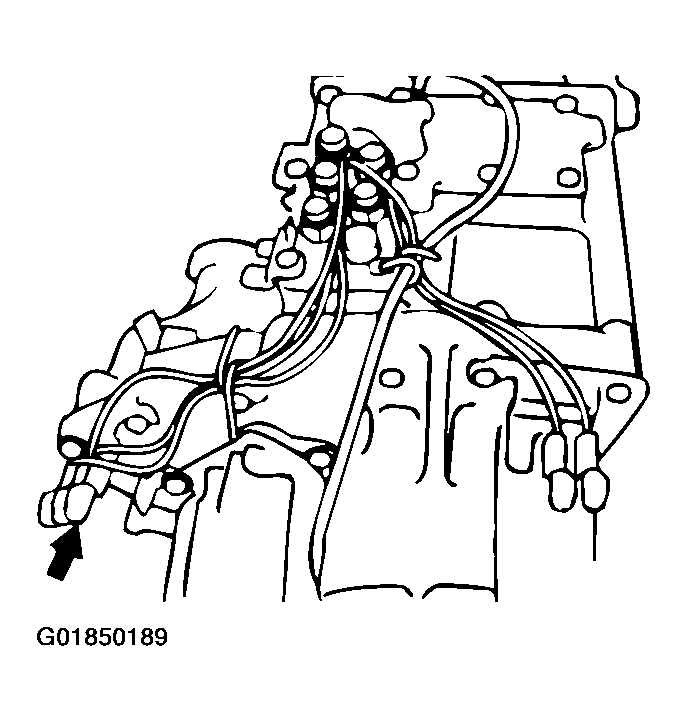

Fig 2: Identifying Center Differential Lock Detection Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
