lemon-mirror
:
Home
>>
Mitsubishi
>>
2002
>>
Montero XLS
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Servicing
>>
Transmission Control
>>
Inspection
>>
Disassembly And Assembly
Disassembly And Assembly

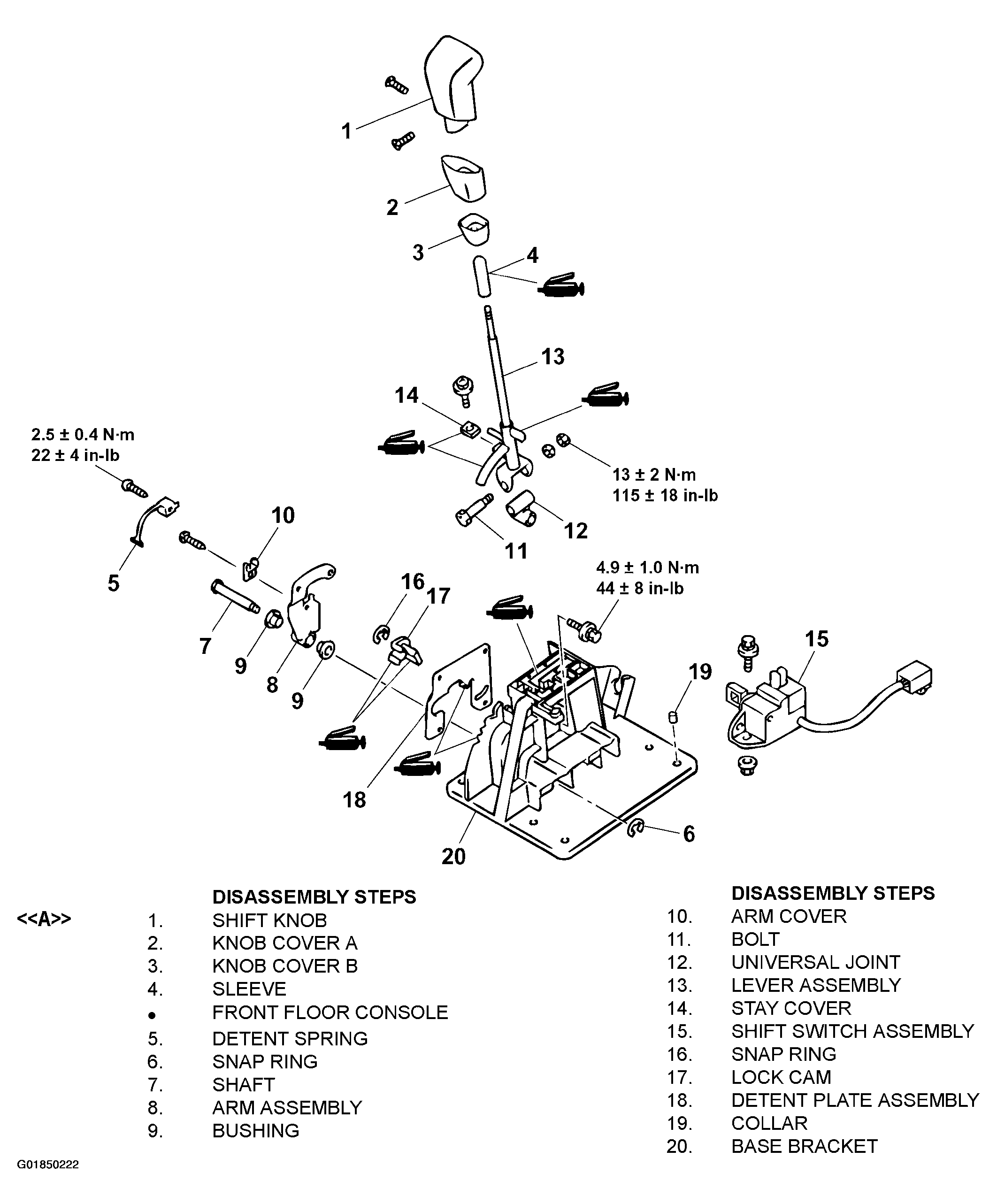

Fig 1: Disassembly & Assembly Of Transmission Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990784: Ornament Remover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
