Transfer Shift Lever Switch Continuity Check

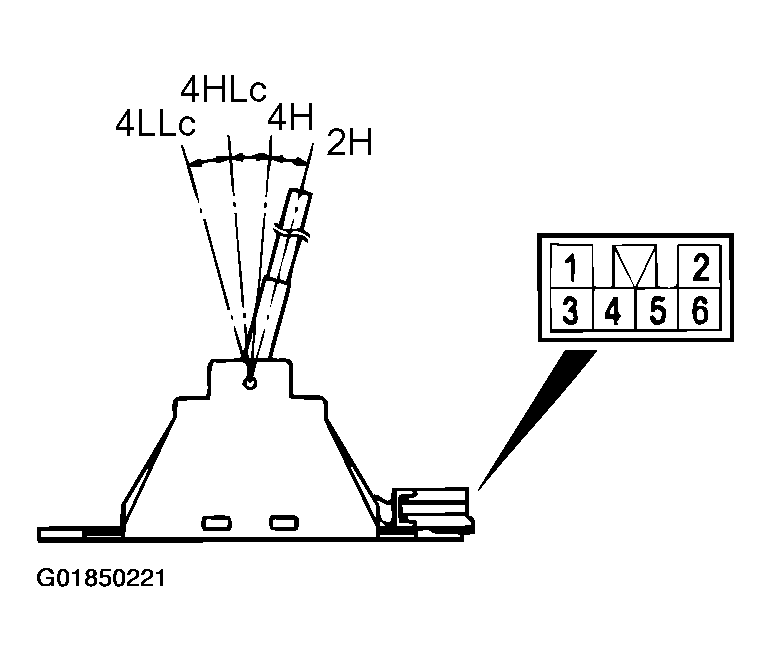

Fig 1: Checking Continuity Between Transfer Shift Lever Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

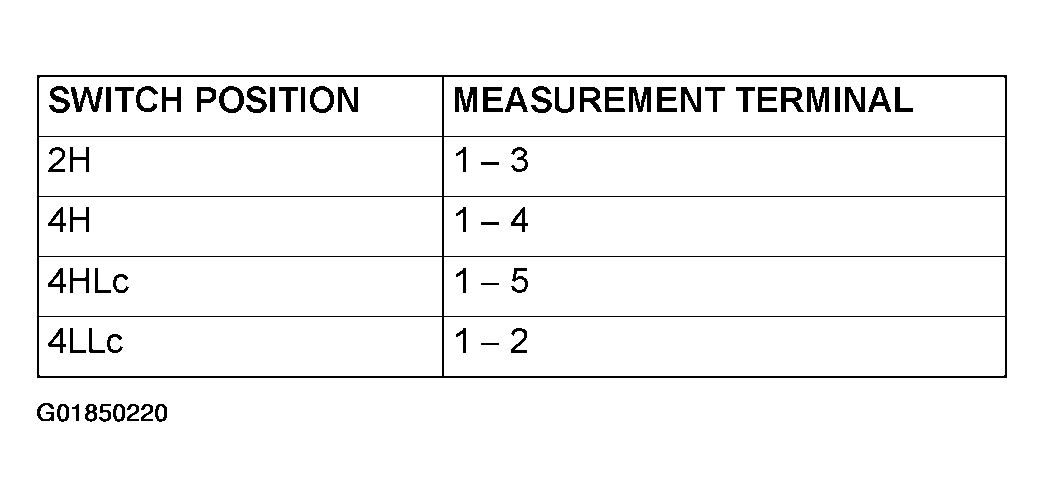

Fig 2: Transfer Shift Lever Switch Continuity Check Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
