Removal And Installation: Notes
CAUTION:
When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

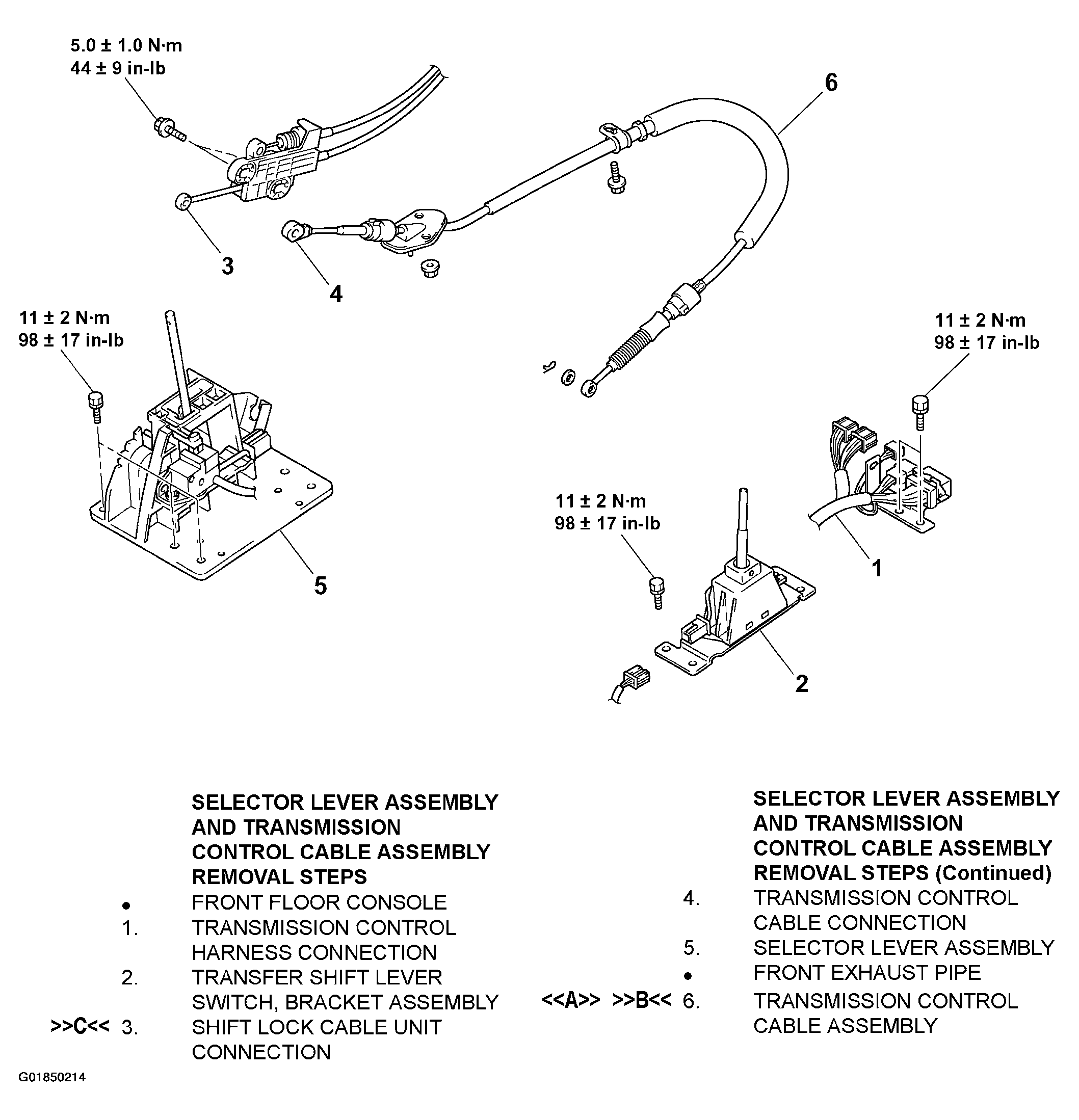

Fig 1: Removing & Installing Of Transmission Control Components (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

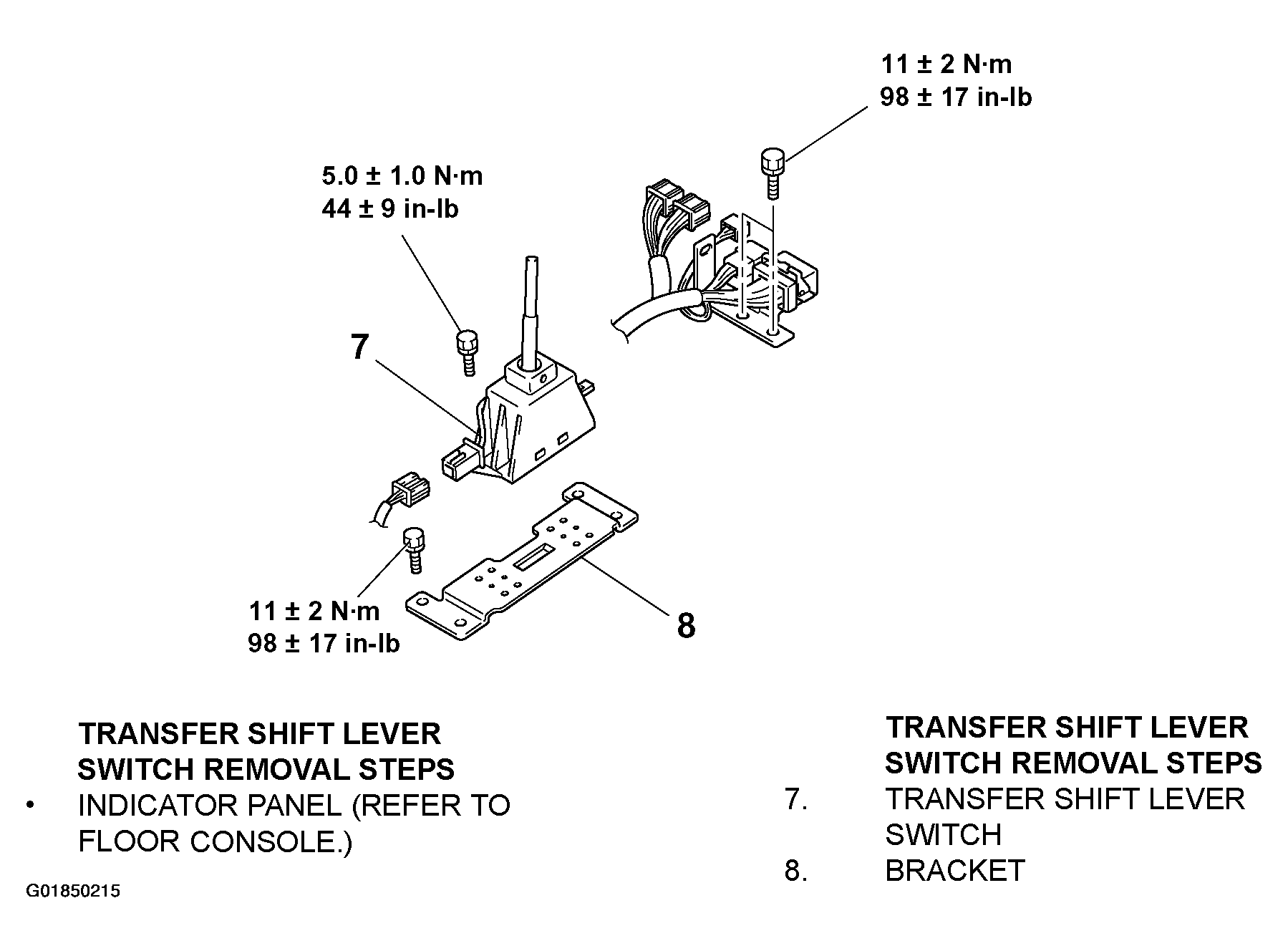

Fig 2: Removing & Installing Of Transmission Control Components (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
