Spark Plug Test

  1. Remove the spark plug and connect to the spark plug cable.
  2. Ground the spark plug outer electrode (body), and crank the engine. Check to be sure that there is an electrical discharge between the electrodes at this time.

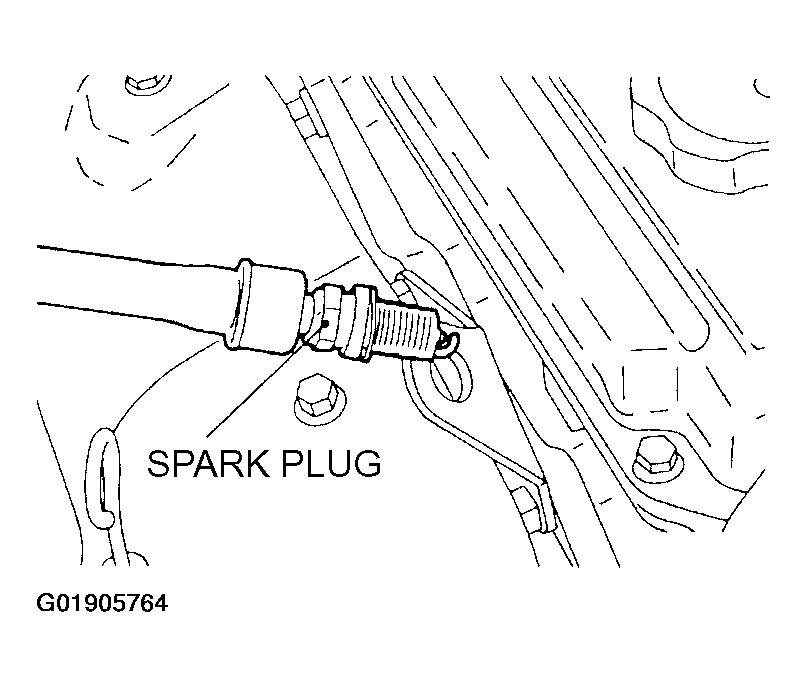

    Fig 1: Grounding Spark Plug
    G01905764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

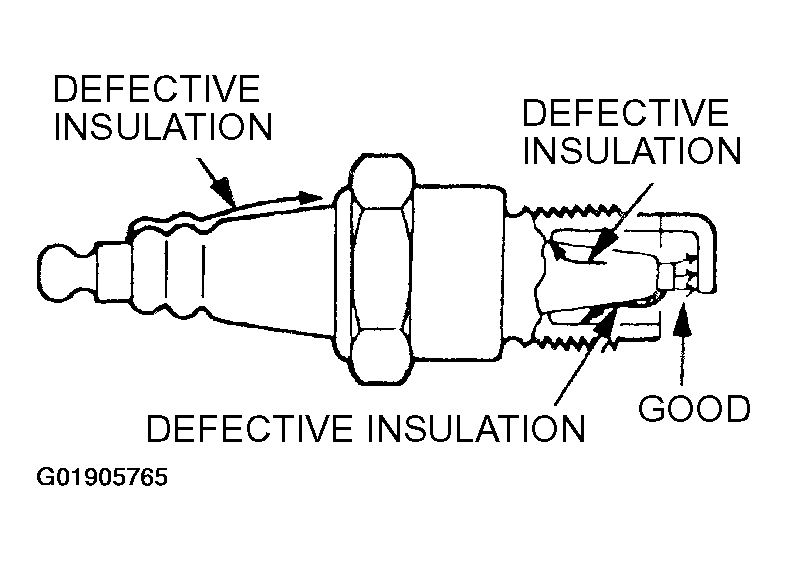

    Fig 2: Identifying Defective Insulation On Spark Plug
    G01905765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
