Component Locations

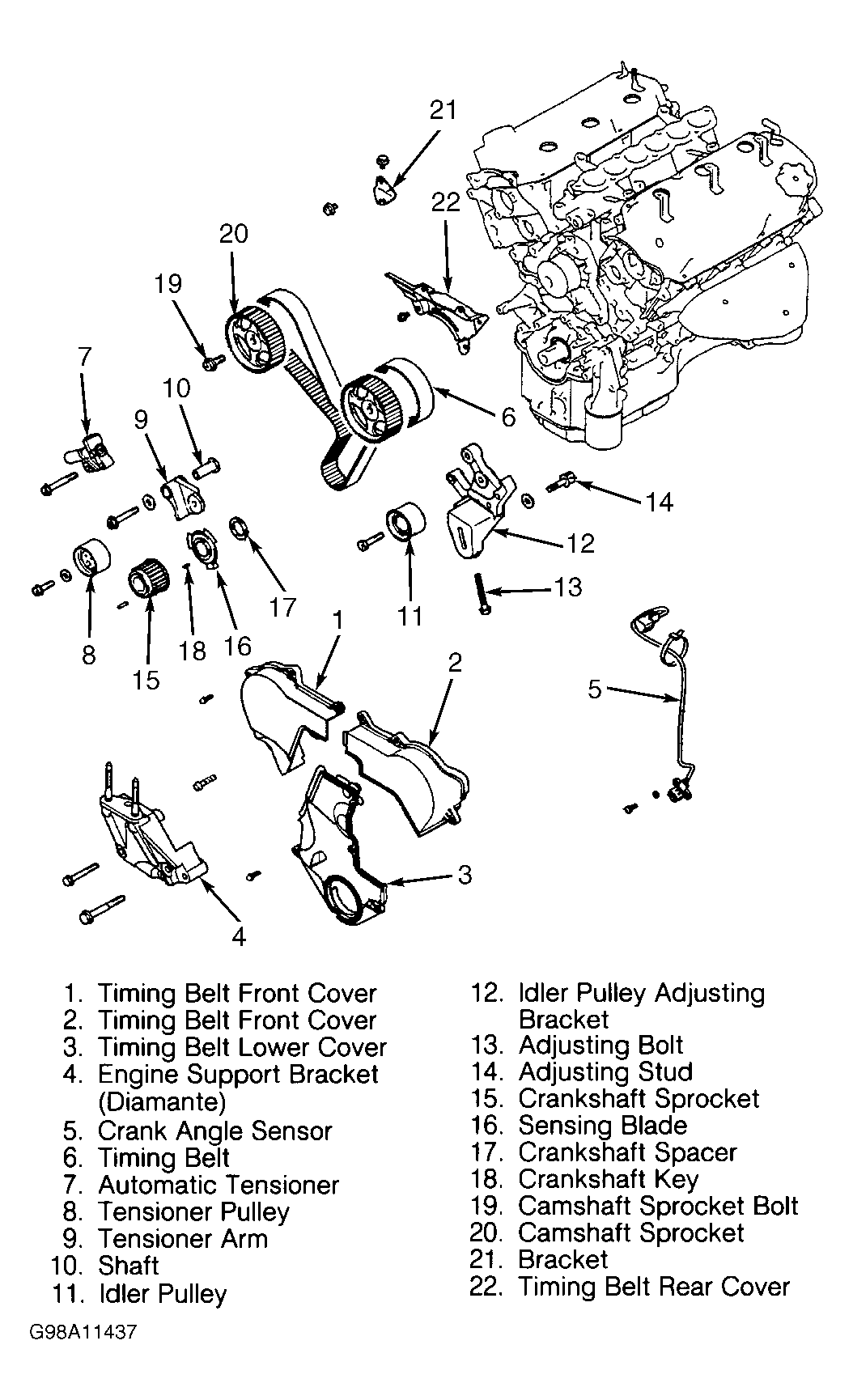

Fig 1: Exploded View Of Timing Belt Components

G98A11437

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Accelerator Pedal Position Sensor

G00169443

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

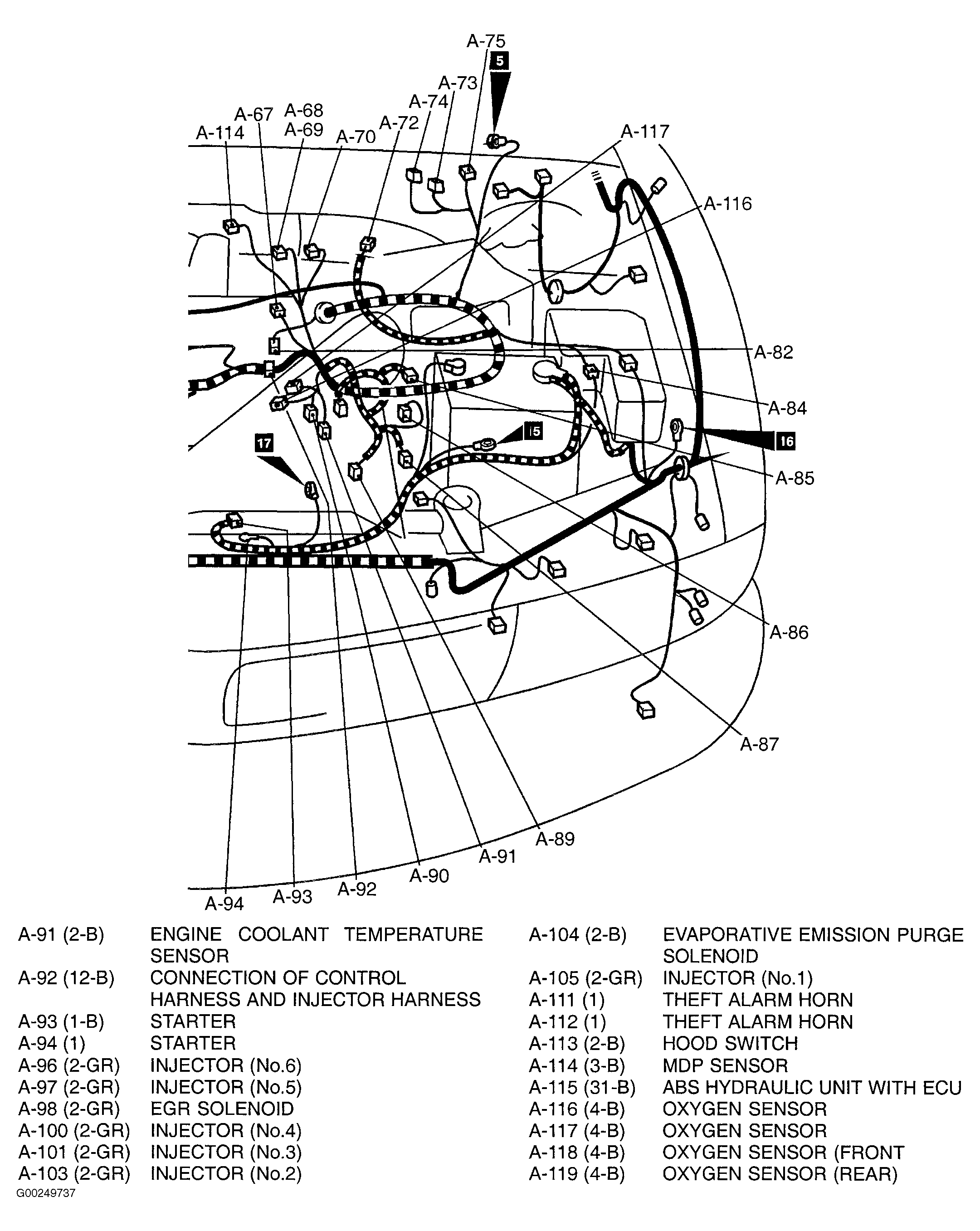

Fig 3: Locating "A" Connectors

G00249737

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

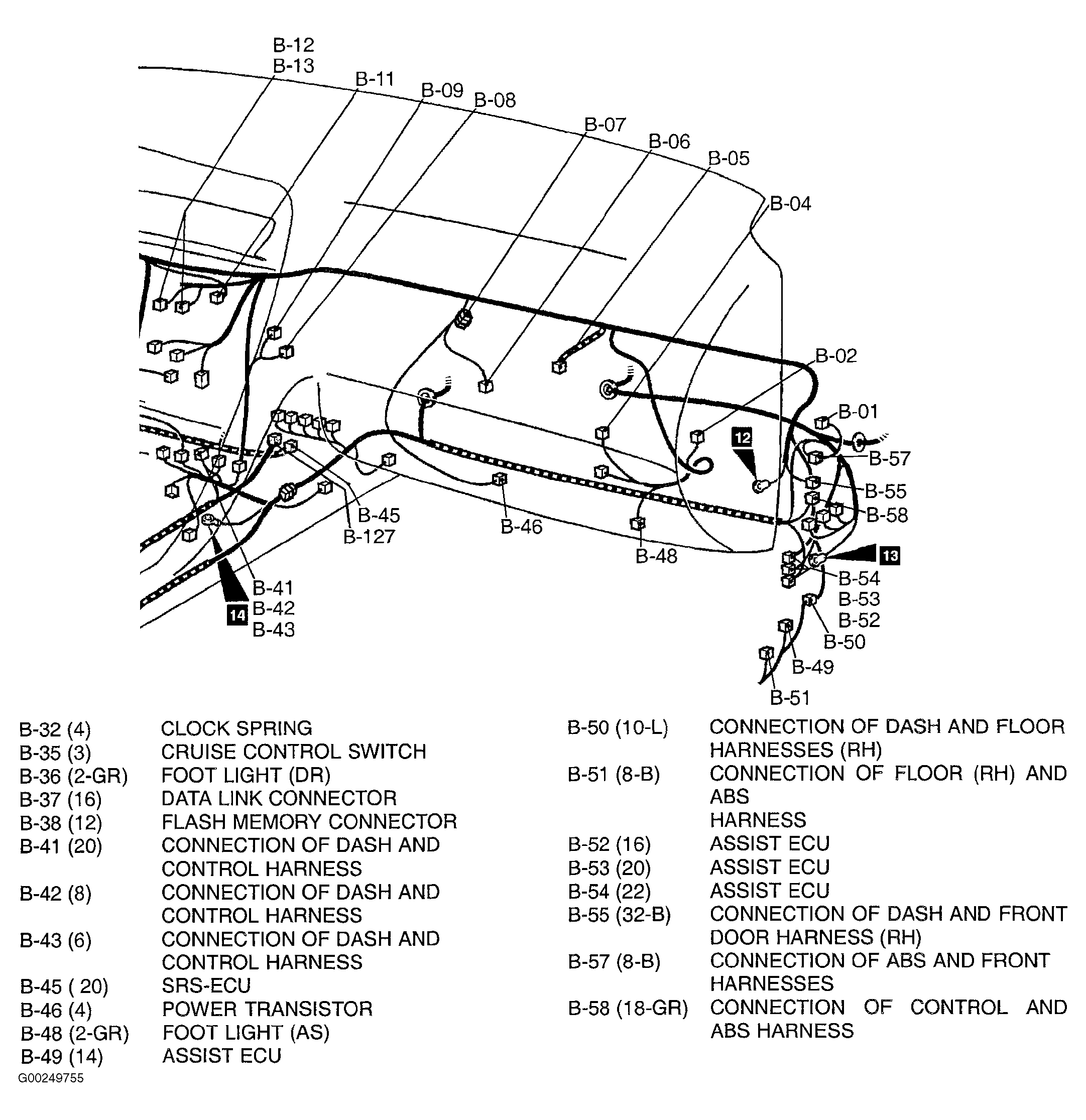

Fig 4: Locating "B" Connectors (1 Of 3)

G00249755

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

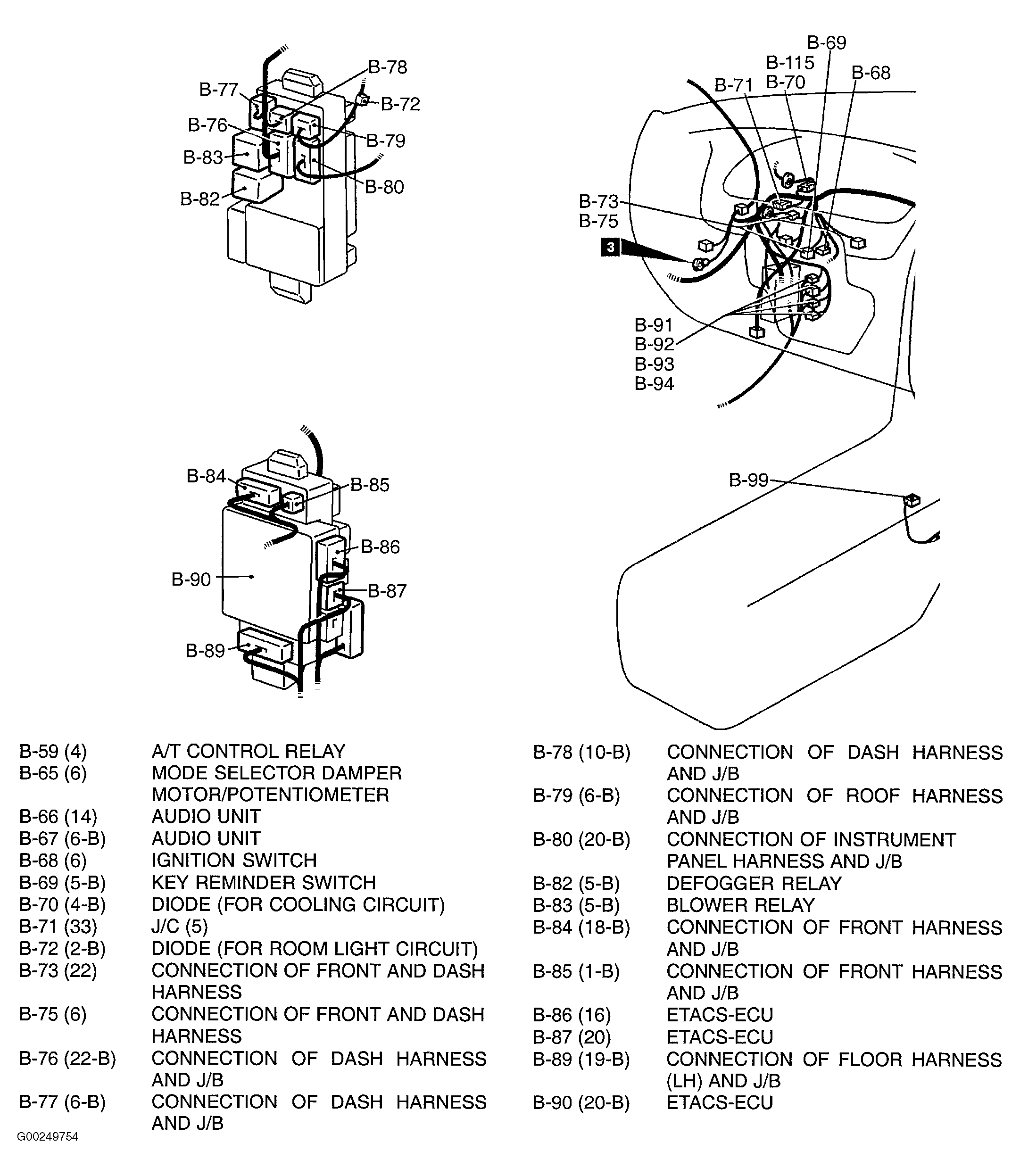

Fig 5: Locating "B" Connectors (2 Of 3)

G00249754

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

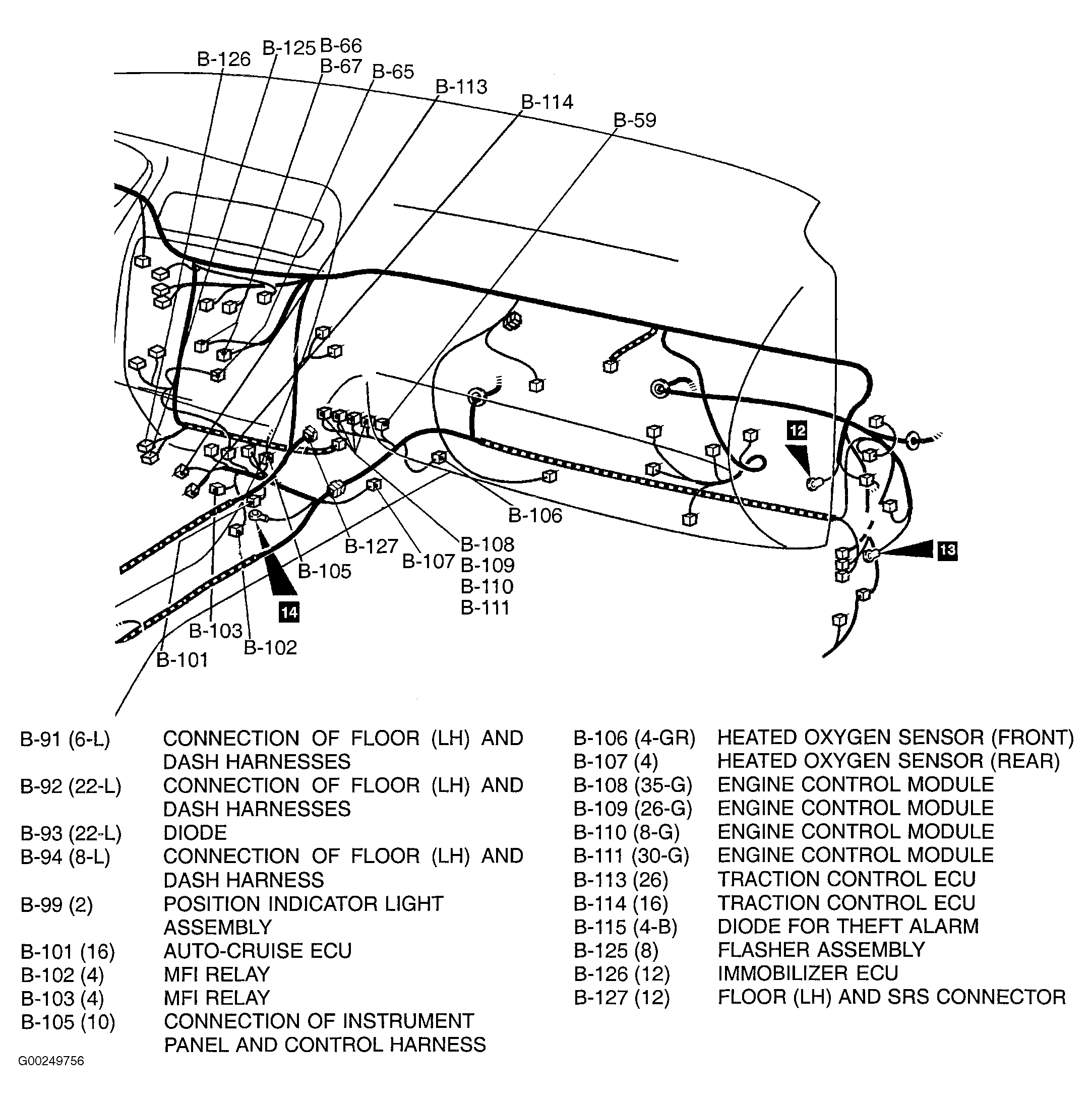

Fig 6: Locating "B" Connectors (3 Of 3)

G00249756

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Locating EGR Solenoid

G00169446

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Locating Engine Coolant Temperature Sensor

G00169447

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

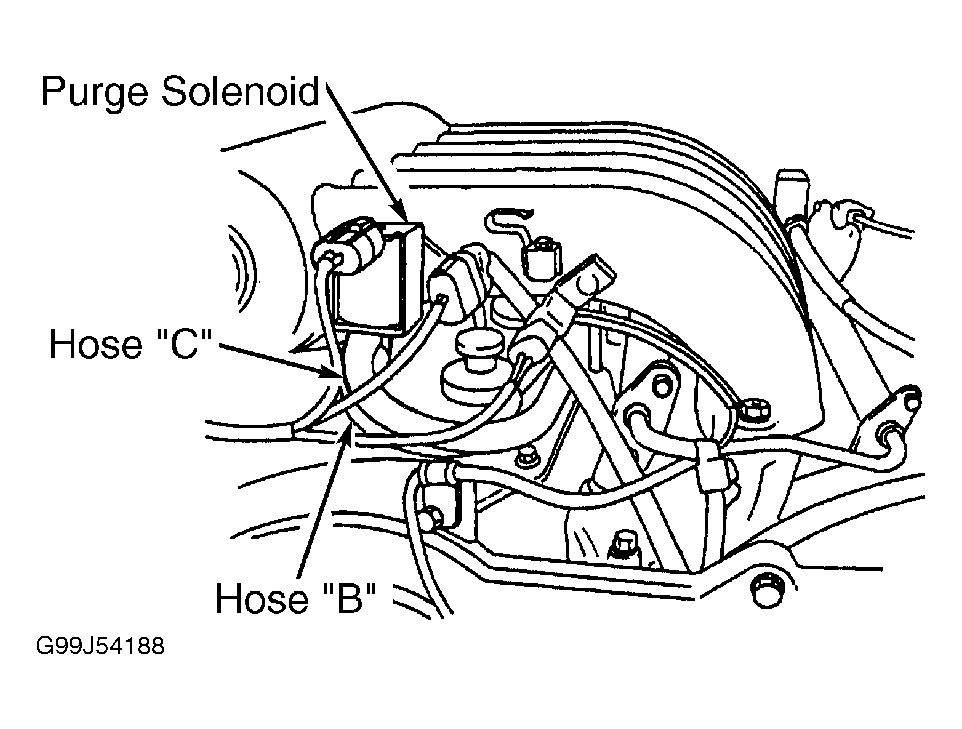

Fig 9: Locating EVAP Emission Purge Solenoid & Hoses "B" & "C"

G99J54188

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

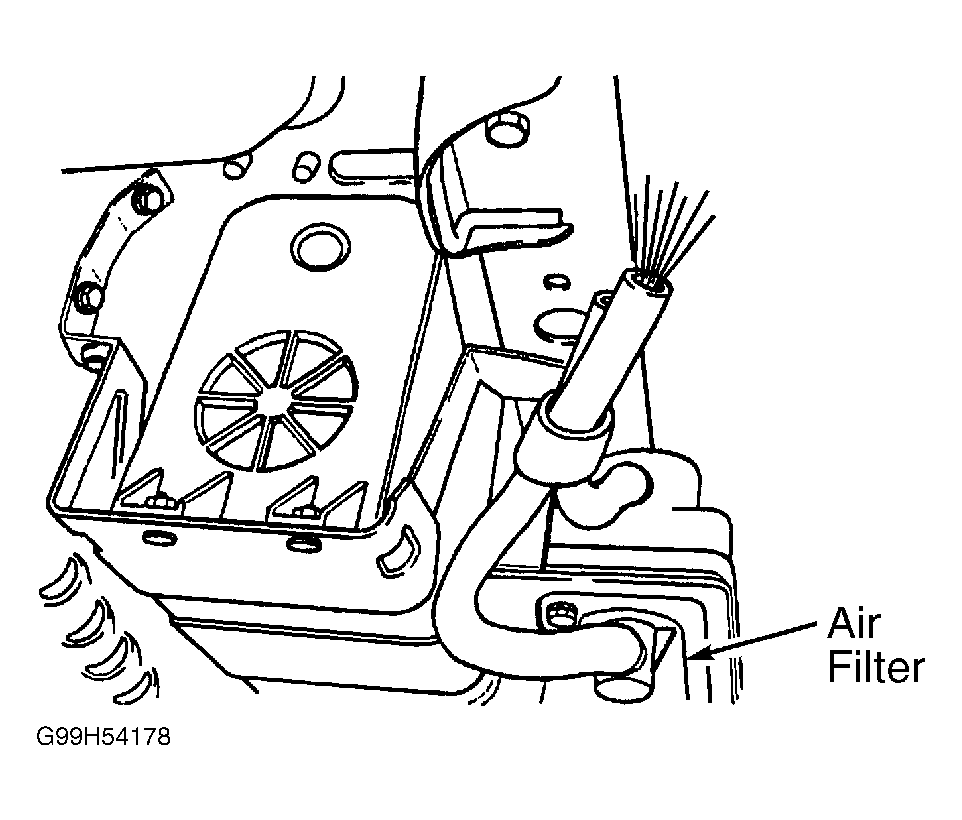

Fig 10: Locating EVAP System Air Filter

G99H54178

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Locating Fuel Tank Differential Pressure Sensor

G00169452

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

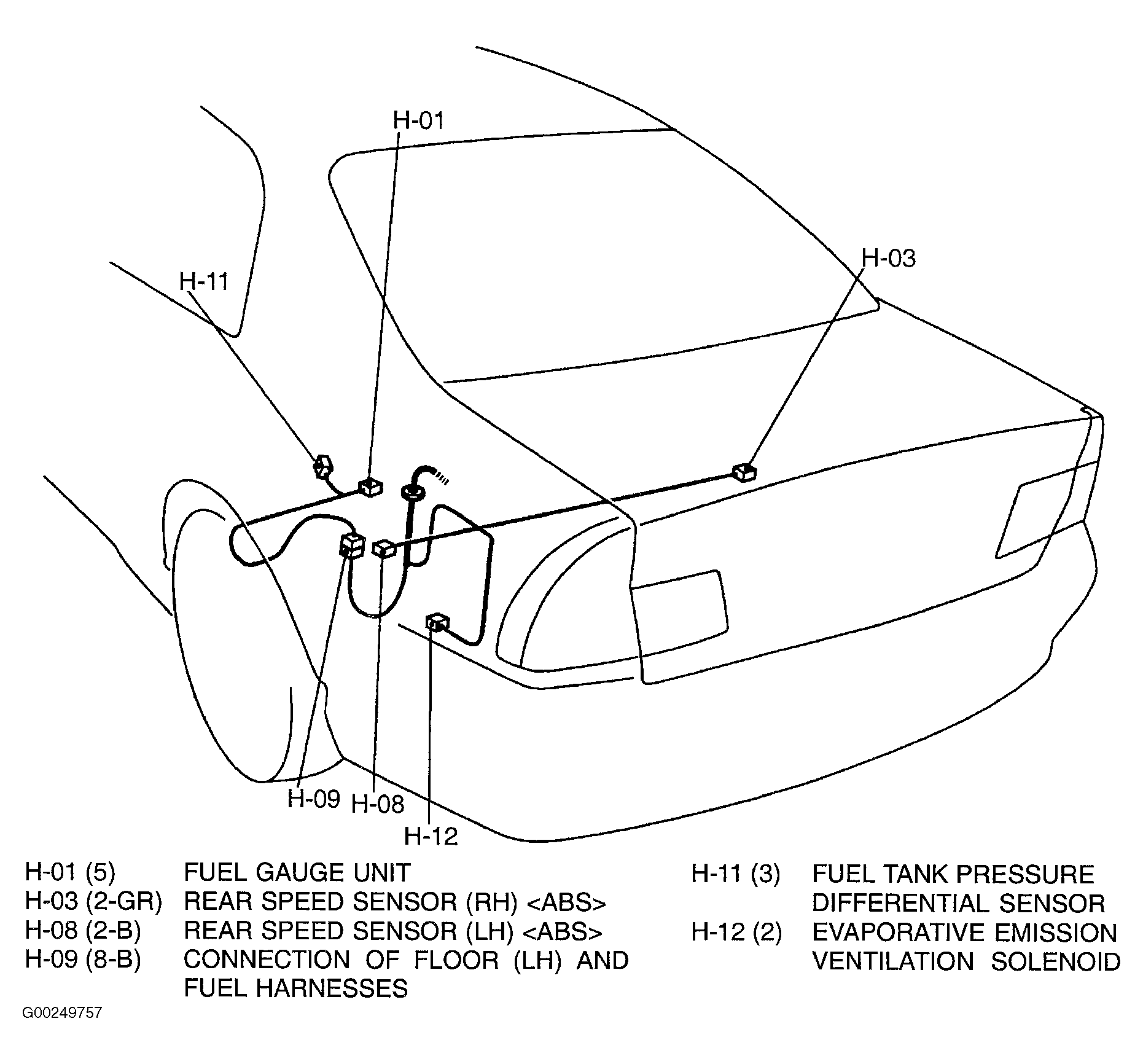

Fig 12: Locating "H" Connectors

G00249757

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

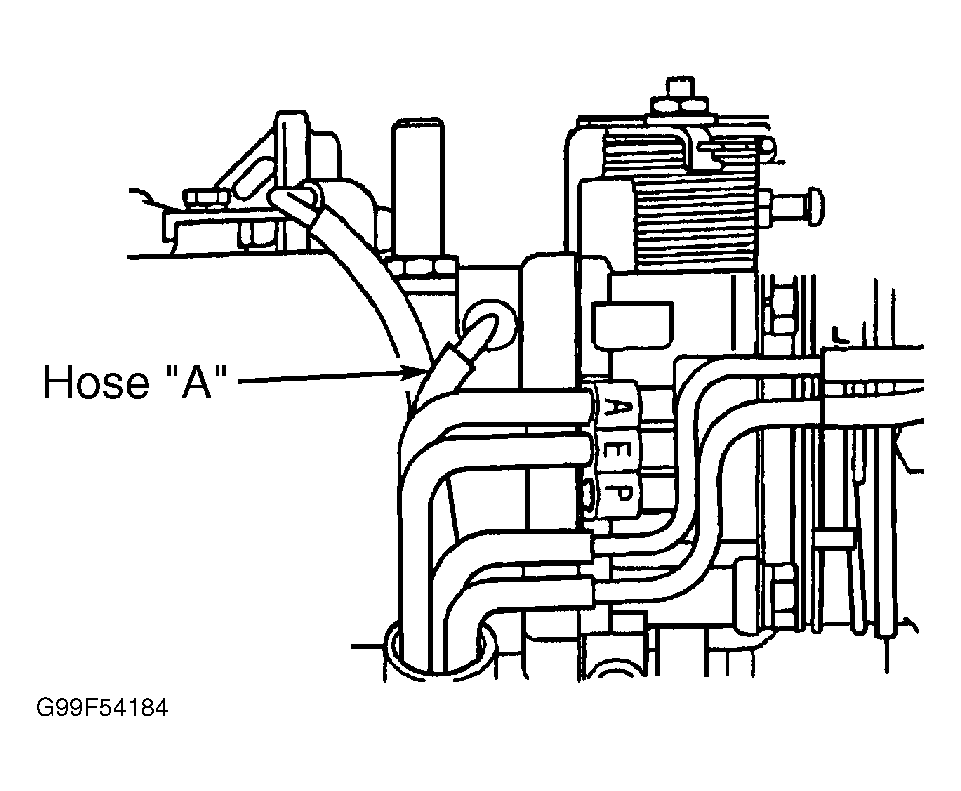

Fig 13: Locating Hose "A"

G99F54184

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

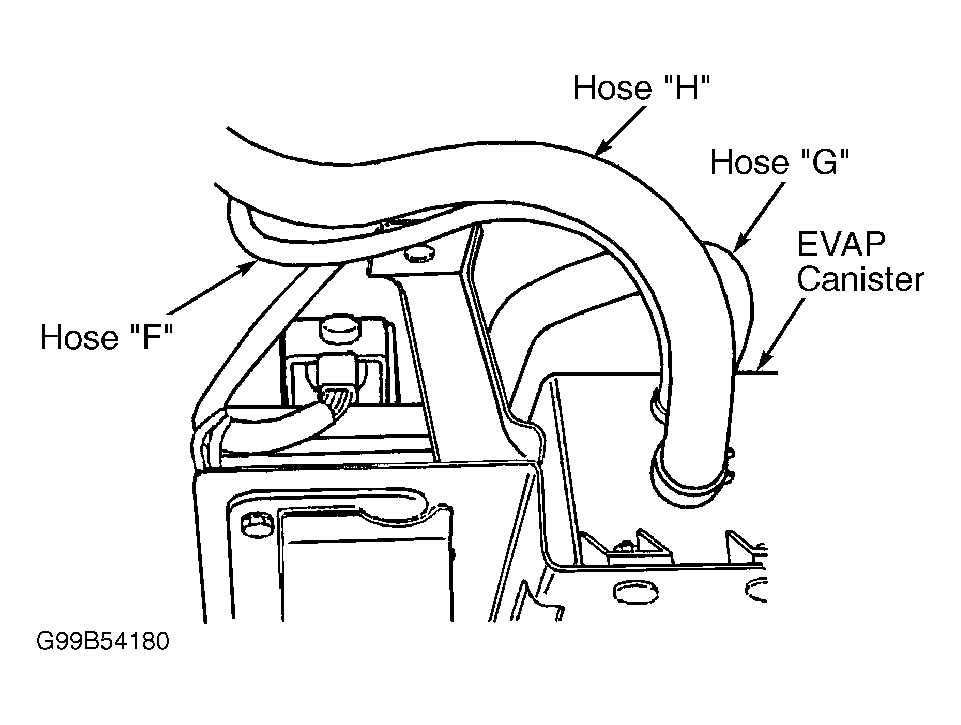

Fig 14: Locating Hoses "F", "G" & "H"

G99B54180

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

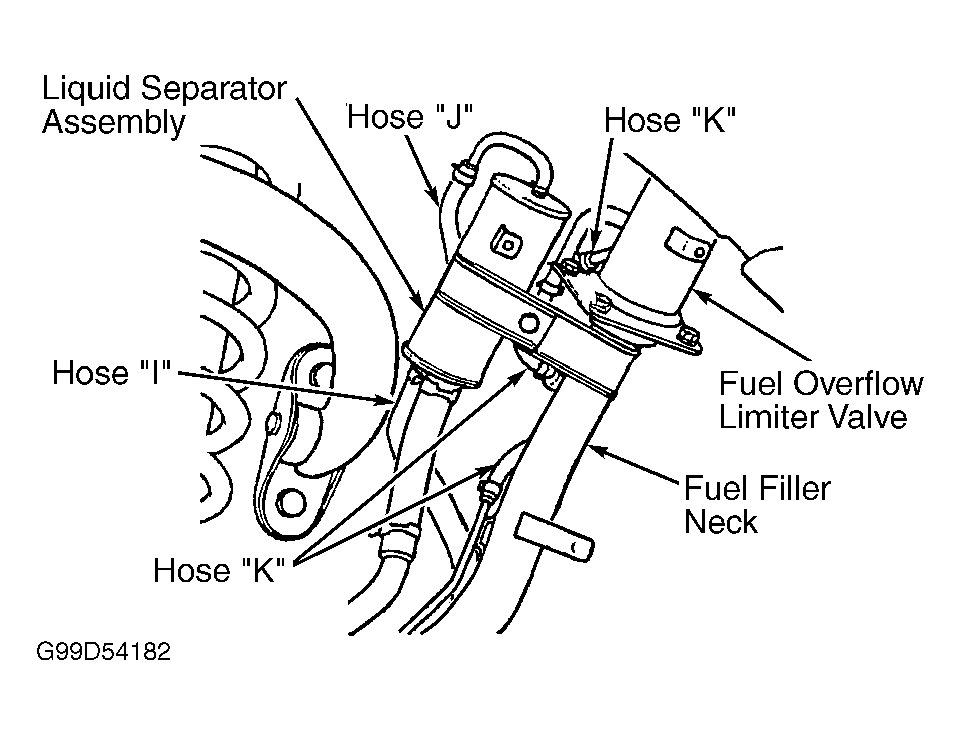

Fig 15: Locating Hoses "I", "J" & "K"

G99D54182

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Locating Manifold Differential Pressure Sensor

G00169453

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Locating MFI & Fuel Pump Relays

G00169454

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Locating PCM & SRS ECU

G00169455

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Locating Power Steering Pressure Switch

G00169456

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

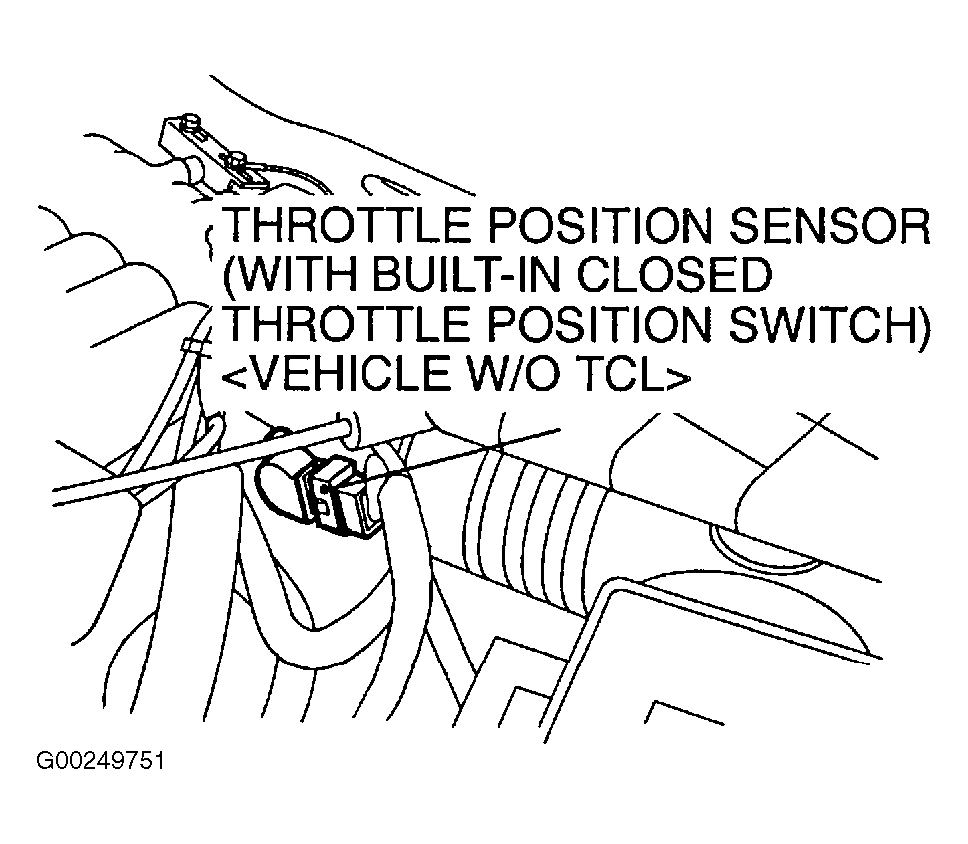

Fig 20: Locating Throttle Position Sensor/Throttle Position Switch

G00249751

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Locating Vacuum & Ventilation Control Solenoid Valves

G00169450

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

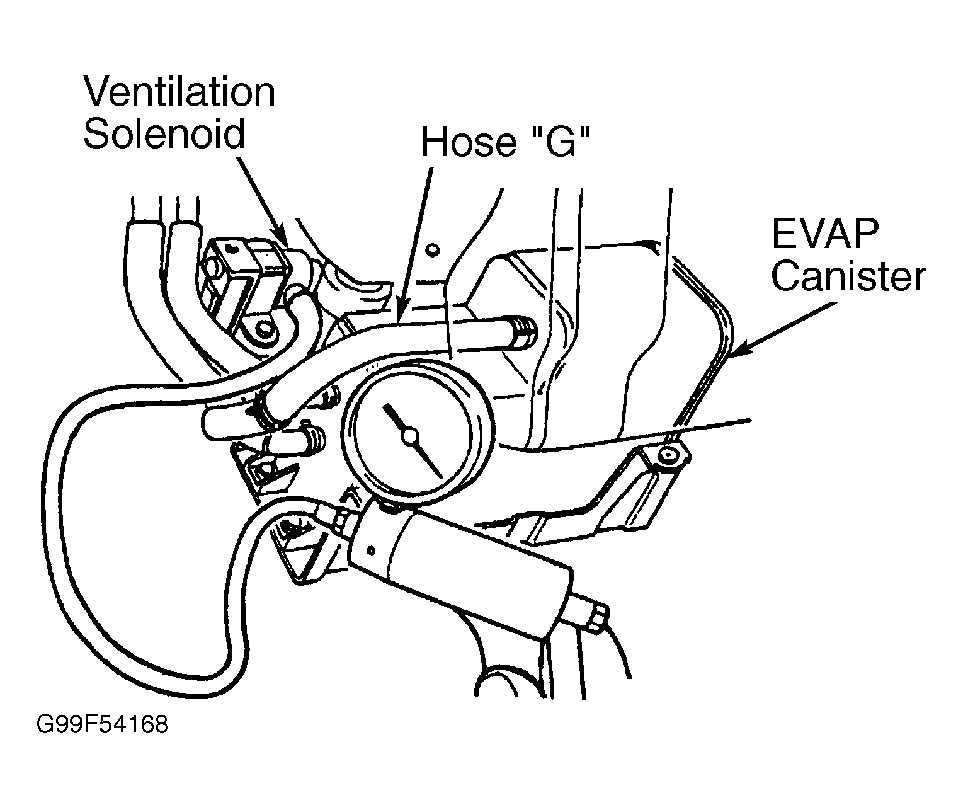

Fig 22: Locating Ventilation Solenoid & EVAP Canister

G99F54168

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Locating Volume Airflow Sensor

G00169457

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
