COMPONENT LOCATIONS
Component
Location
Cooling Fan
(1)
Behind Radiator
Fan Control Module
(1)
Attached To Radiator Fan Shroud
Fan Control Relay
In Engine Compartment Fuse/Relay Box
Fusible Link No. 2
(2)
In Engine Compartment Fuse/Relay Box
(1)
See
Figure
.
(2)
See
Fig 1
.

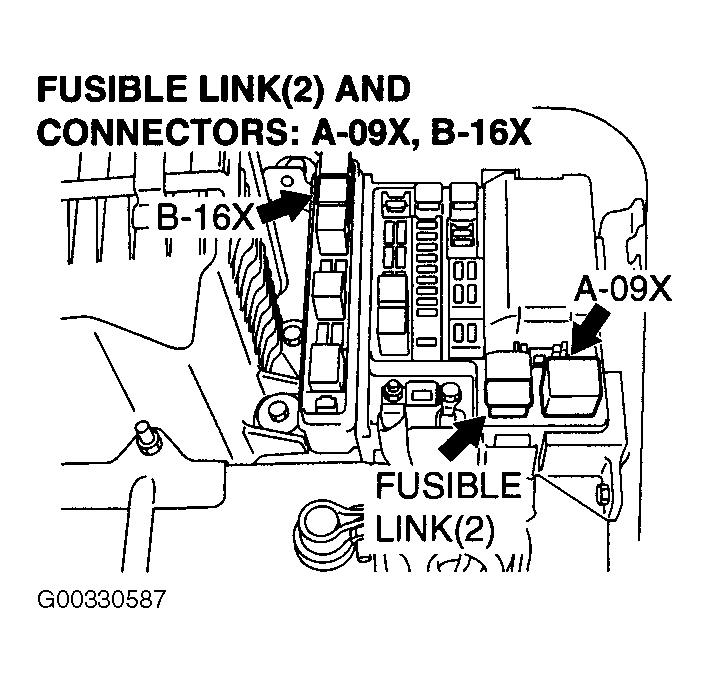

Fig 1: Locating Fusible Link No. 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
