Home >> Mitsubishi >> 2003 >> Lancer Evolution >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Overhaul - Evolution >> Specifications >> Service Specifications

Service Specifications

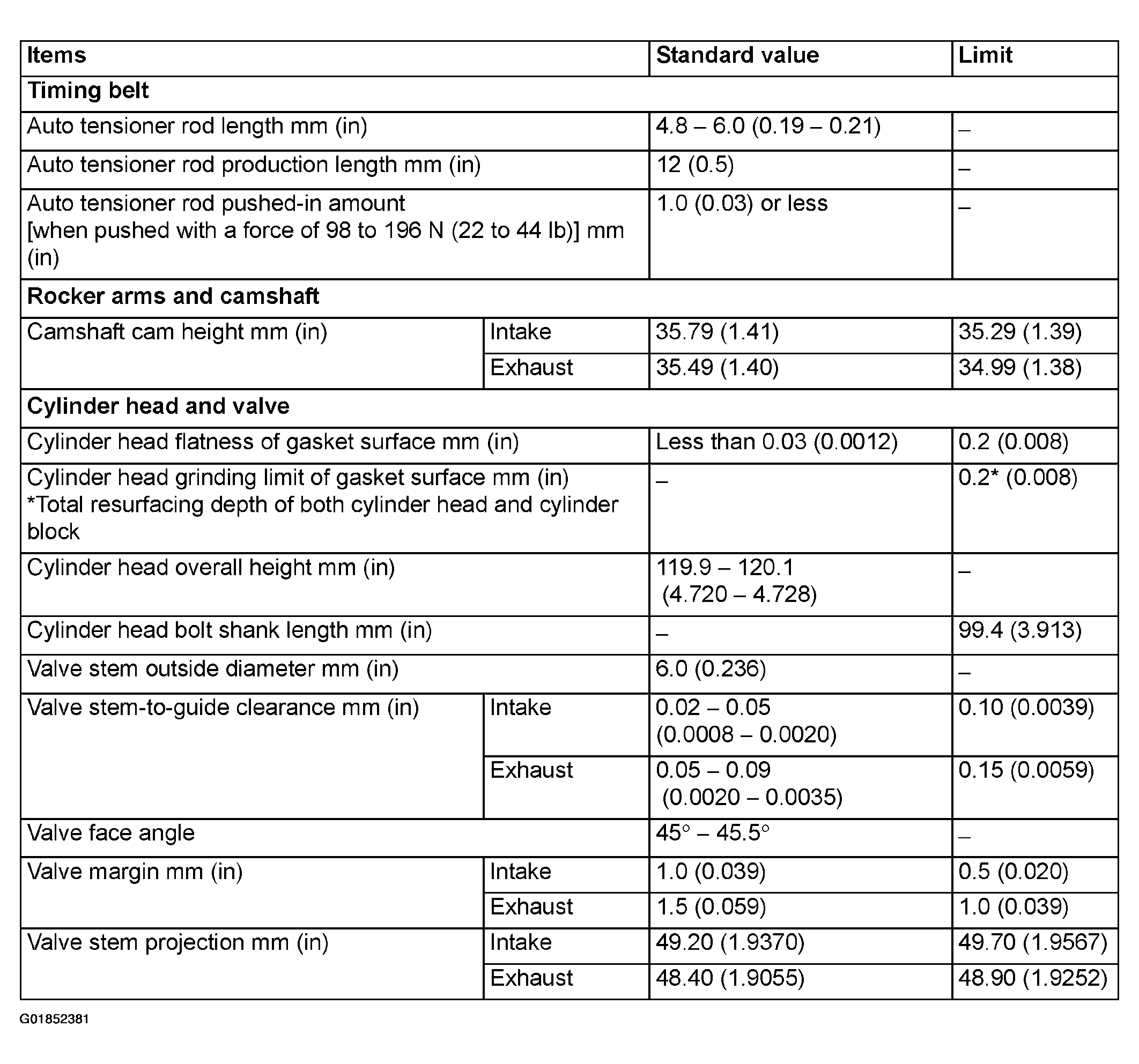

Fig 1: Service Specifications Index (1 Of 3)
G01852381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

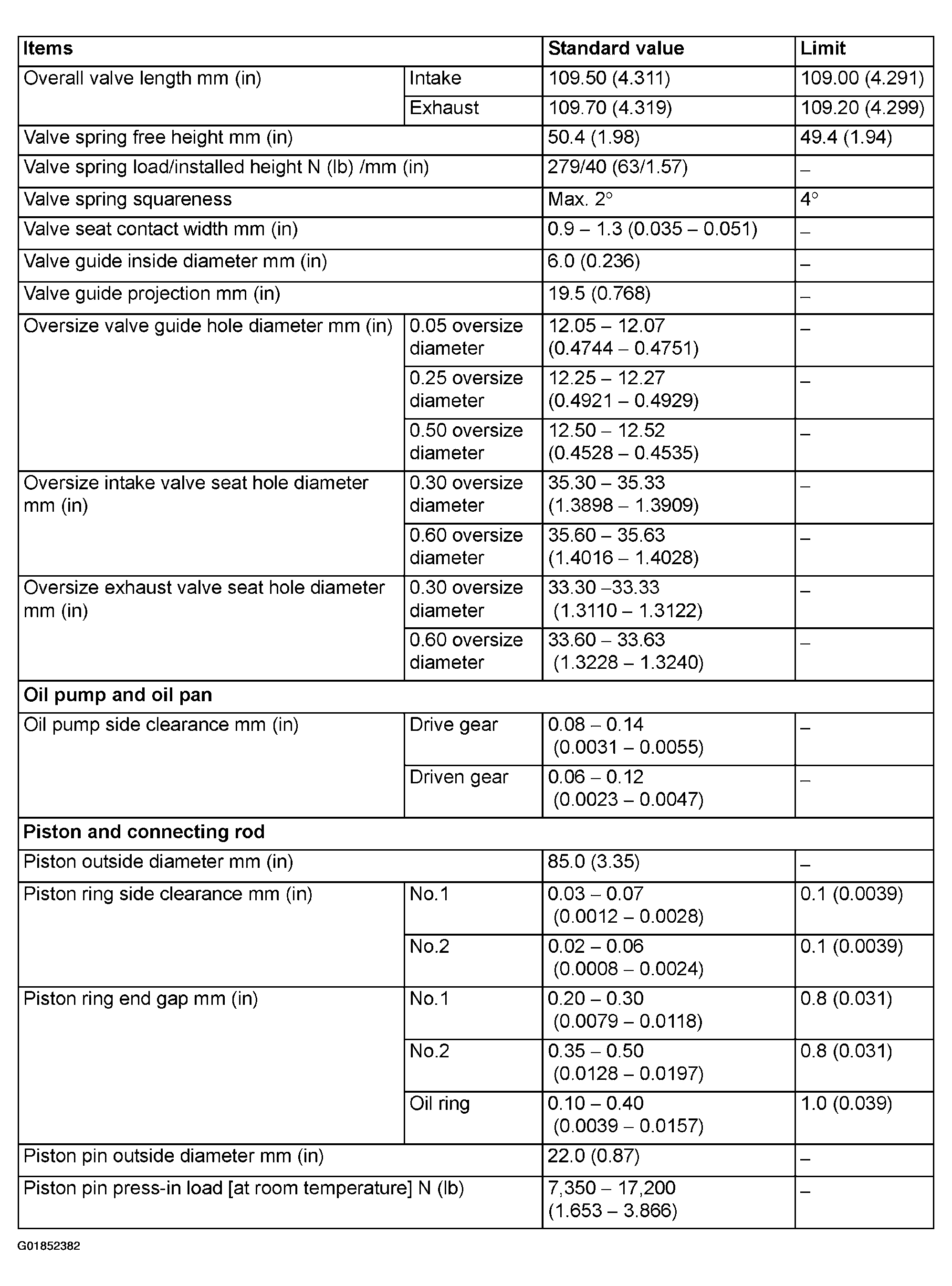

Fig 2: Service Specifications Index (2 Of 3)
G01852382Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

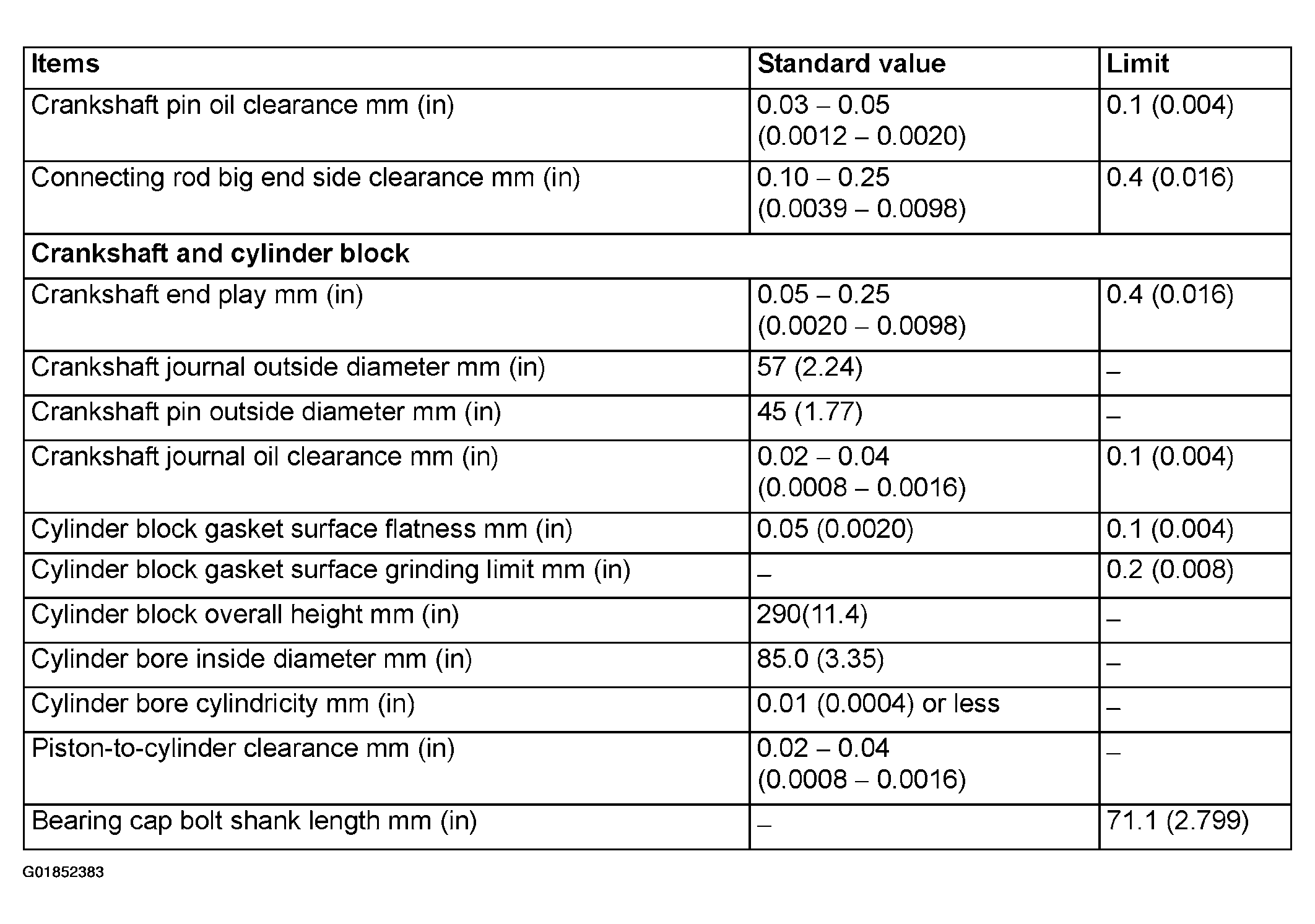

Fig 3: Service Specifications Index (3 Of 3)
G01852383Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
