Fuel System Pressure Release: Montero

Turn the ignition off. Fold down the second seat. Remove the service hole cover (upper) and packing. Remove the service hole cover (lower) and packing. Disconnect fuel pump module connector. See Fig 1. Start the engine and let it run until it stops naturally. Turn the ignition off. Connect the fuel pump module connector.

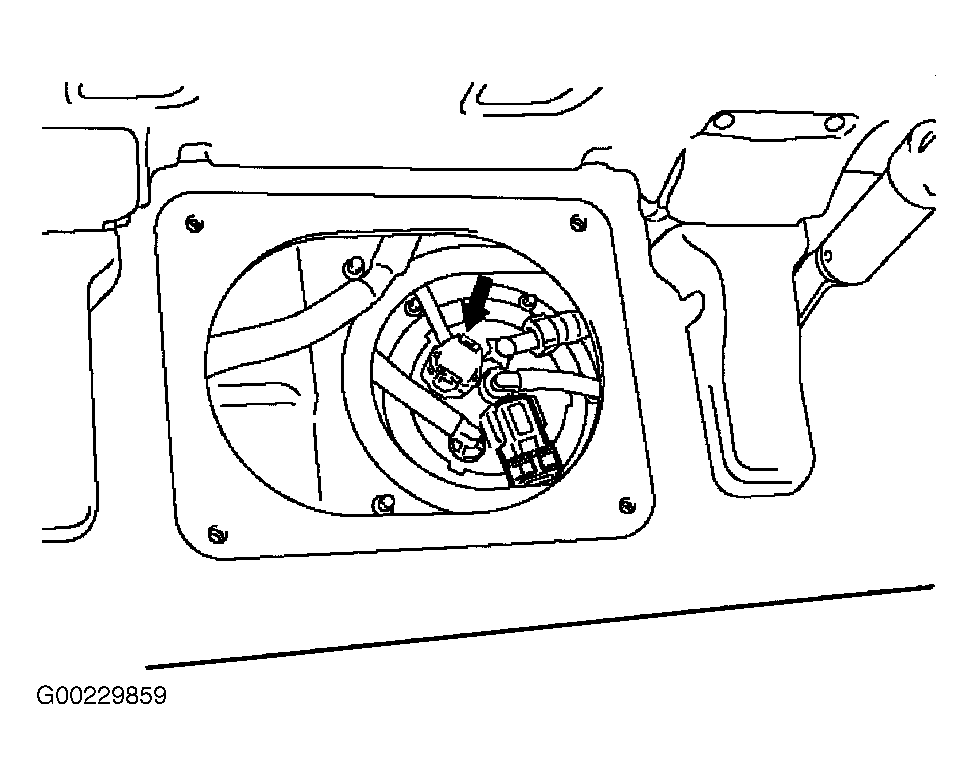

Fig 1: Fuel Pump Module Connector (Montero)
G00229859Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
