Removal And Installation: Notes

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG RESTRAINT SYSTEMS .

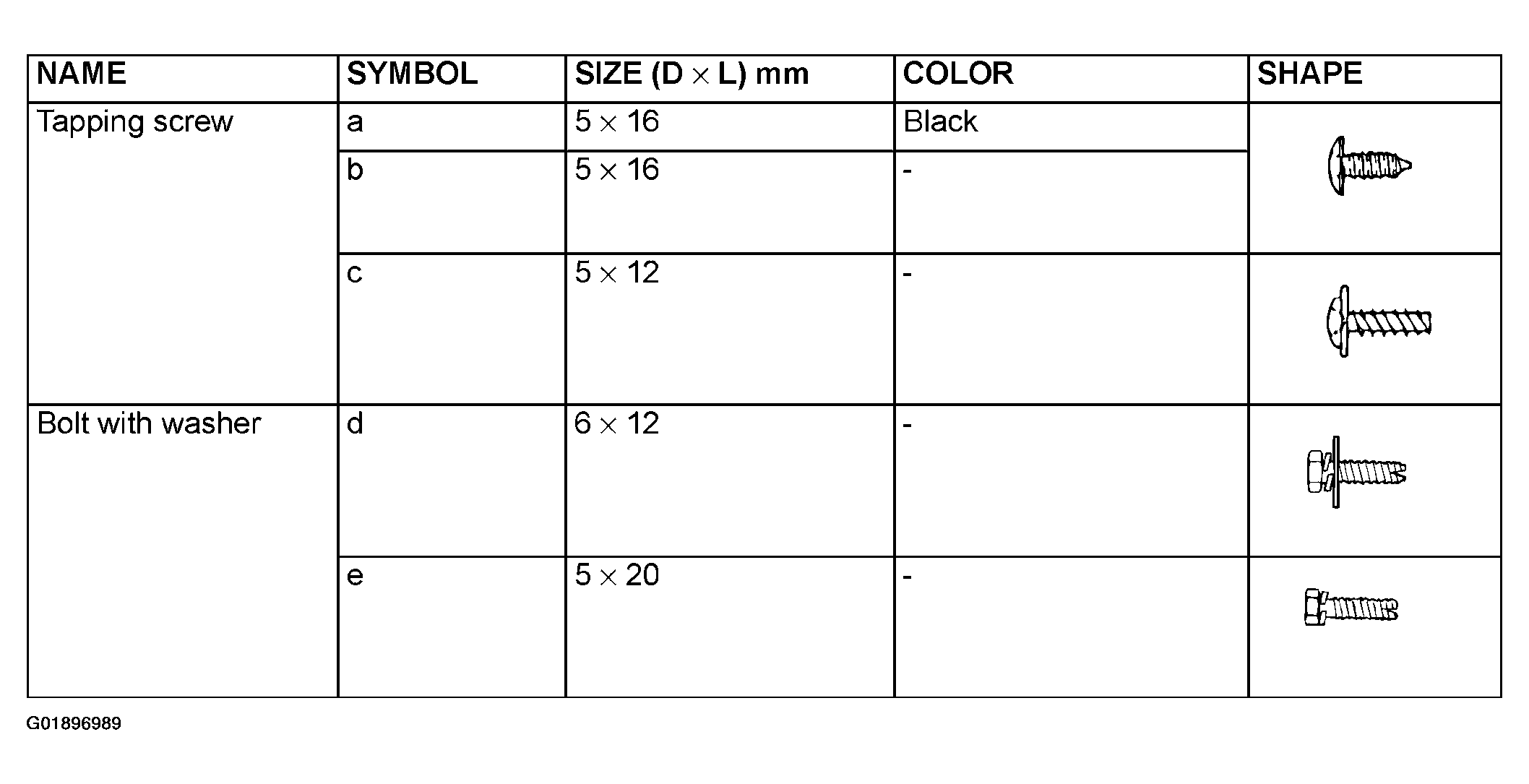

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

Fig 1: Instrument Panel Assembly Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

D: Thread diameter L: Effective thread length

CAUTION:

Refer to AIR BAG RESTRAINT SYSTEMS and Air bag Module and Clock Spring before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

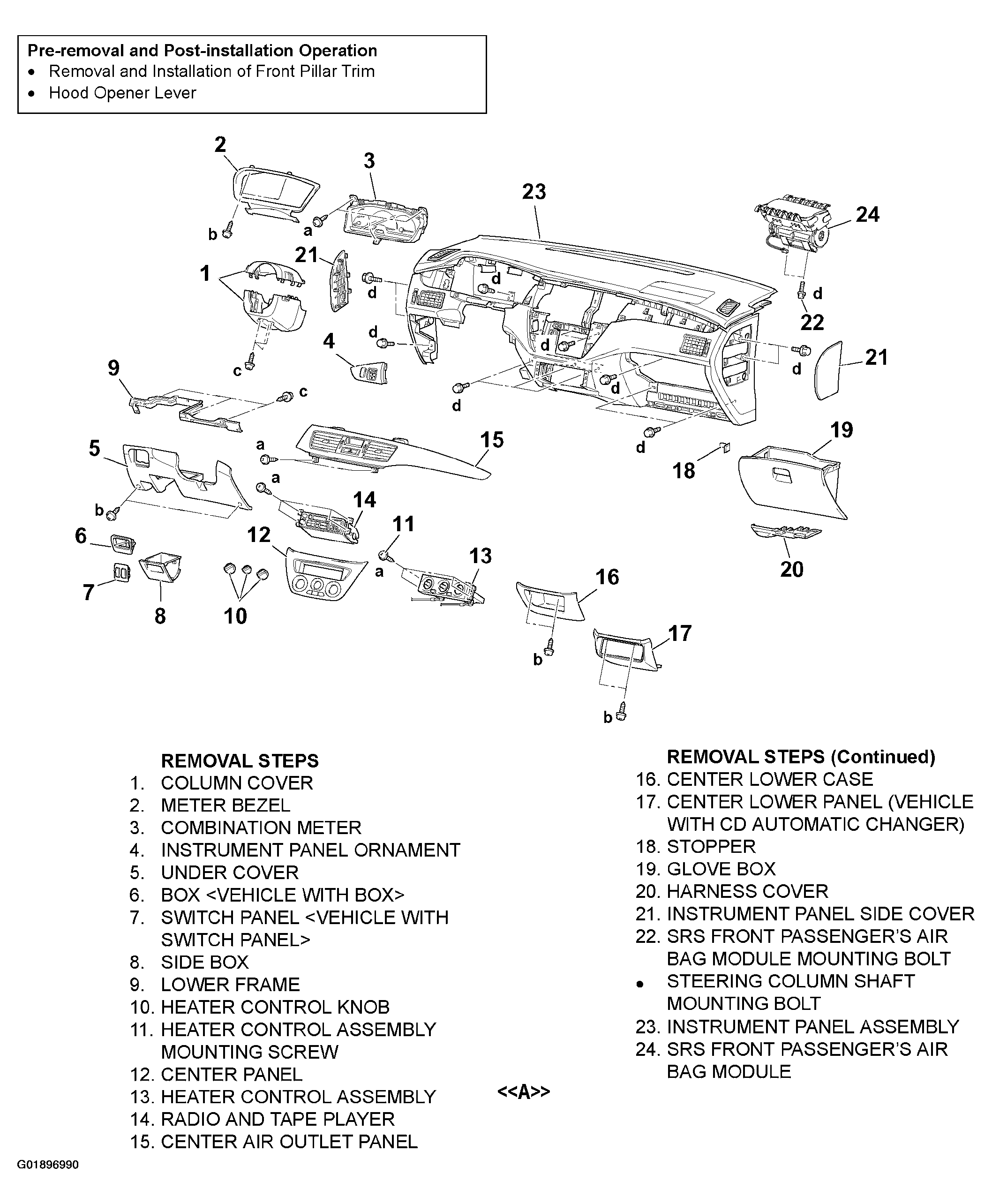

Fig 2: Exploded View Of Instrument Panel Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
