Removal And Installation: Notes

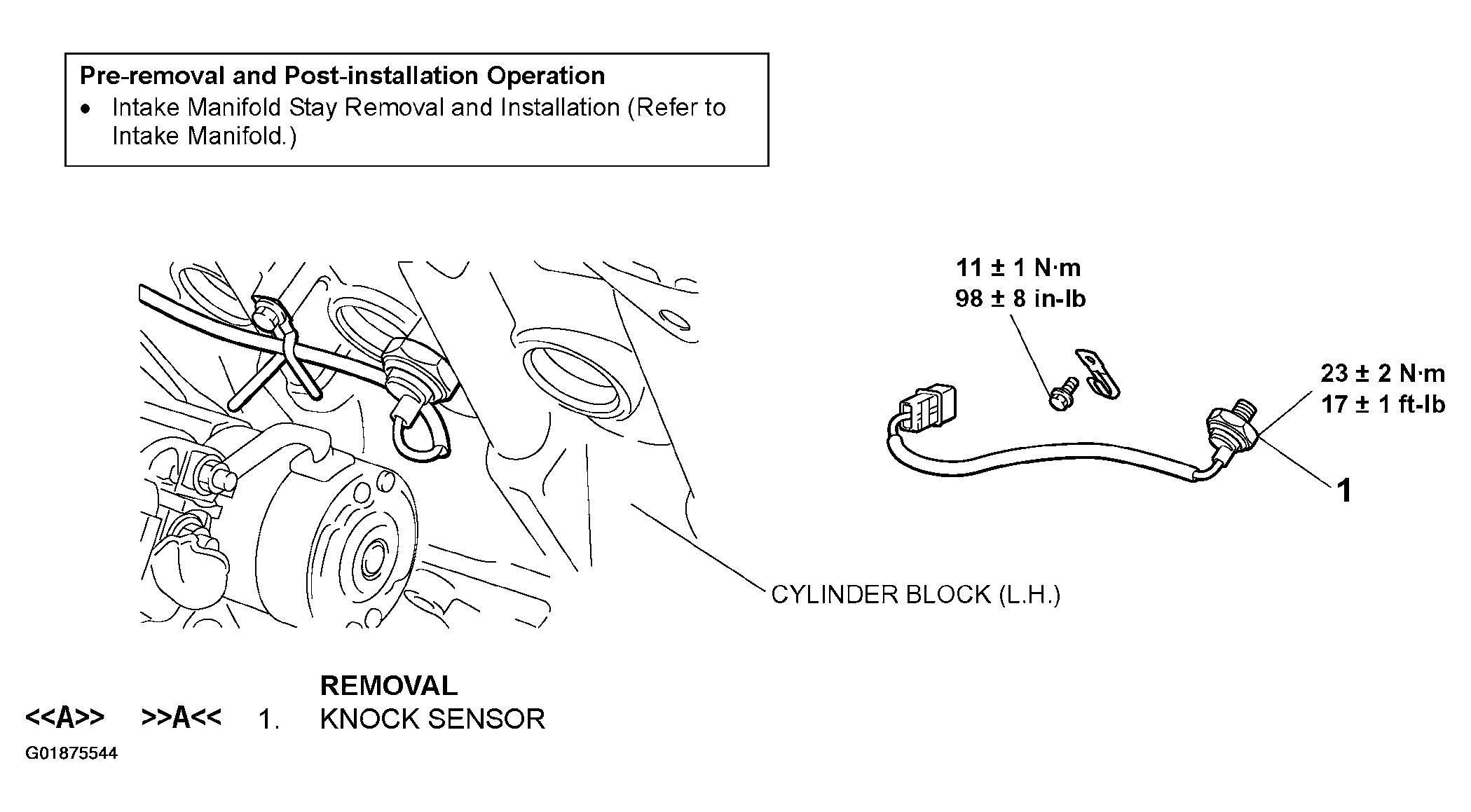

Fig 1: Removing/Installing Knock Sensor
G01875544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
