Actuator Test Reference Table

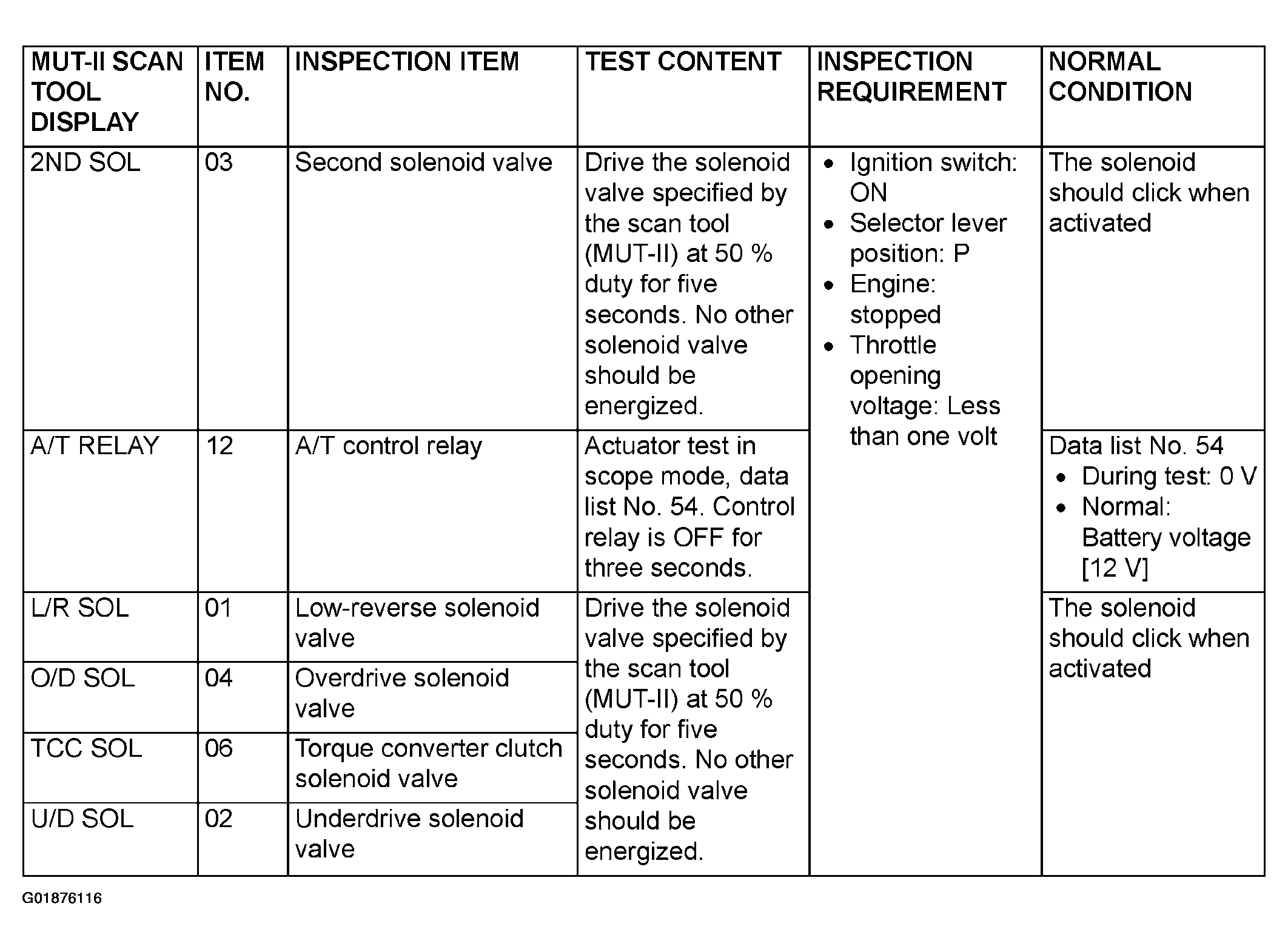

Fig 1: Actuator Test Reference Chart
G01876116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
