Home >> Mitsubishi >> 2003 >> Lancer LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis Introduction - Except Evolution >> Data List Reference Table

Data List Reference Table

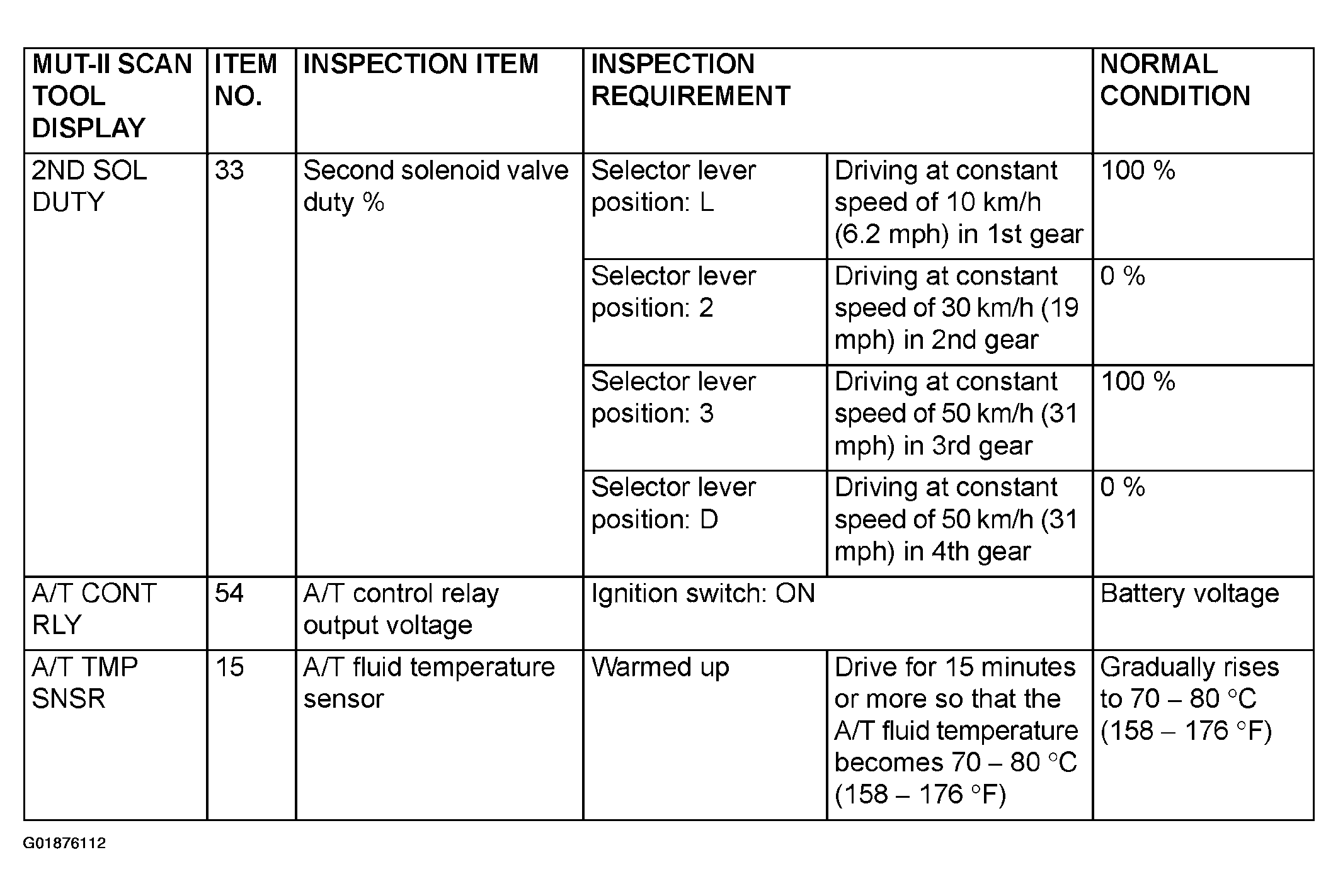

Fig 1: Data List Reference Chart (1 Of 4)
G01876112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

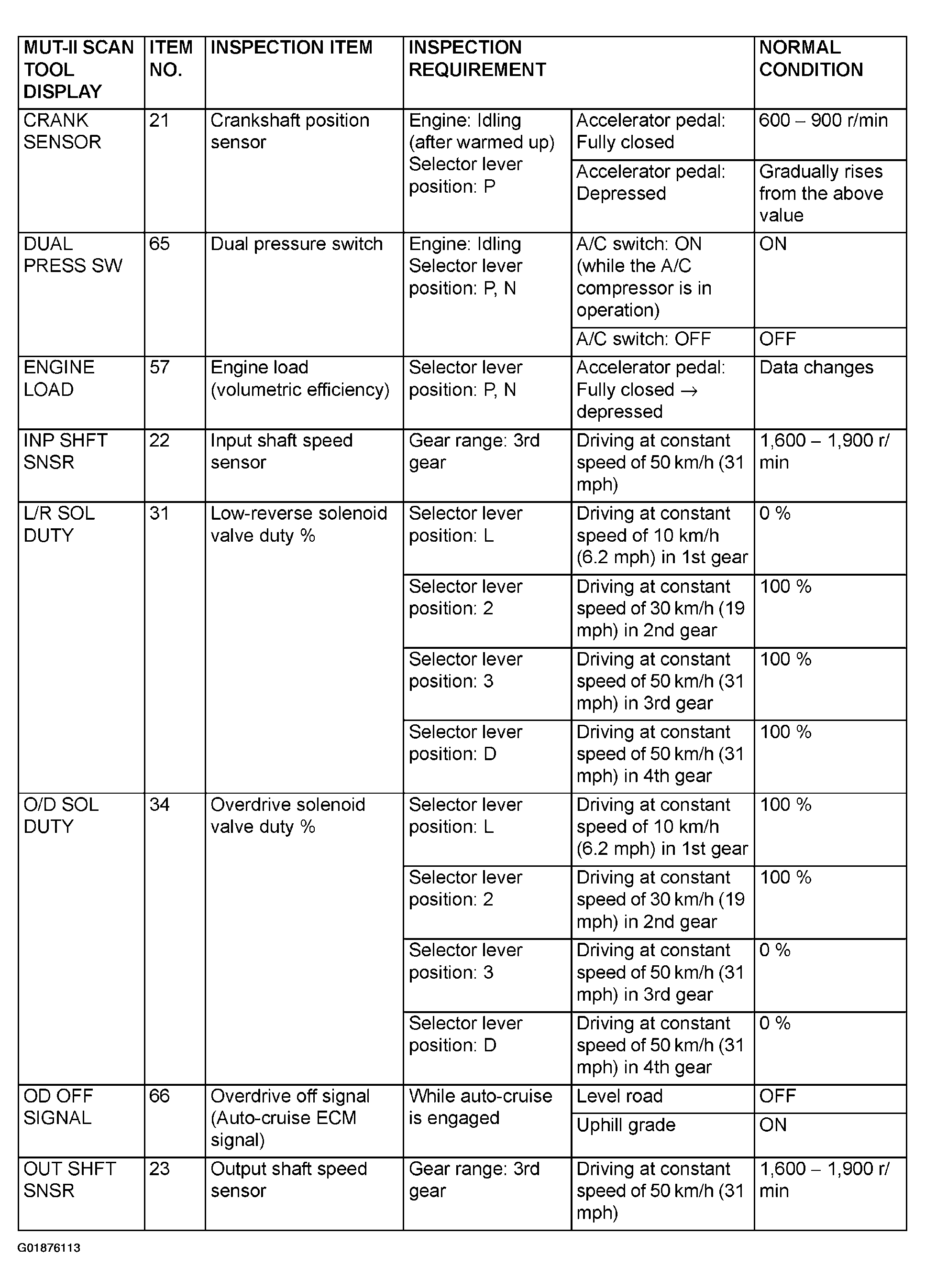

Fig 2: Data List Reference Chart (2 Of 4)
G01876113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

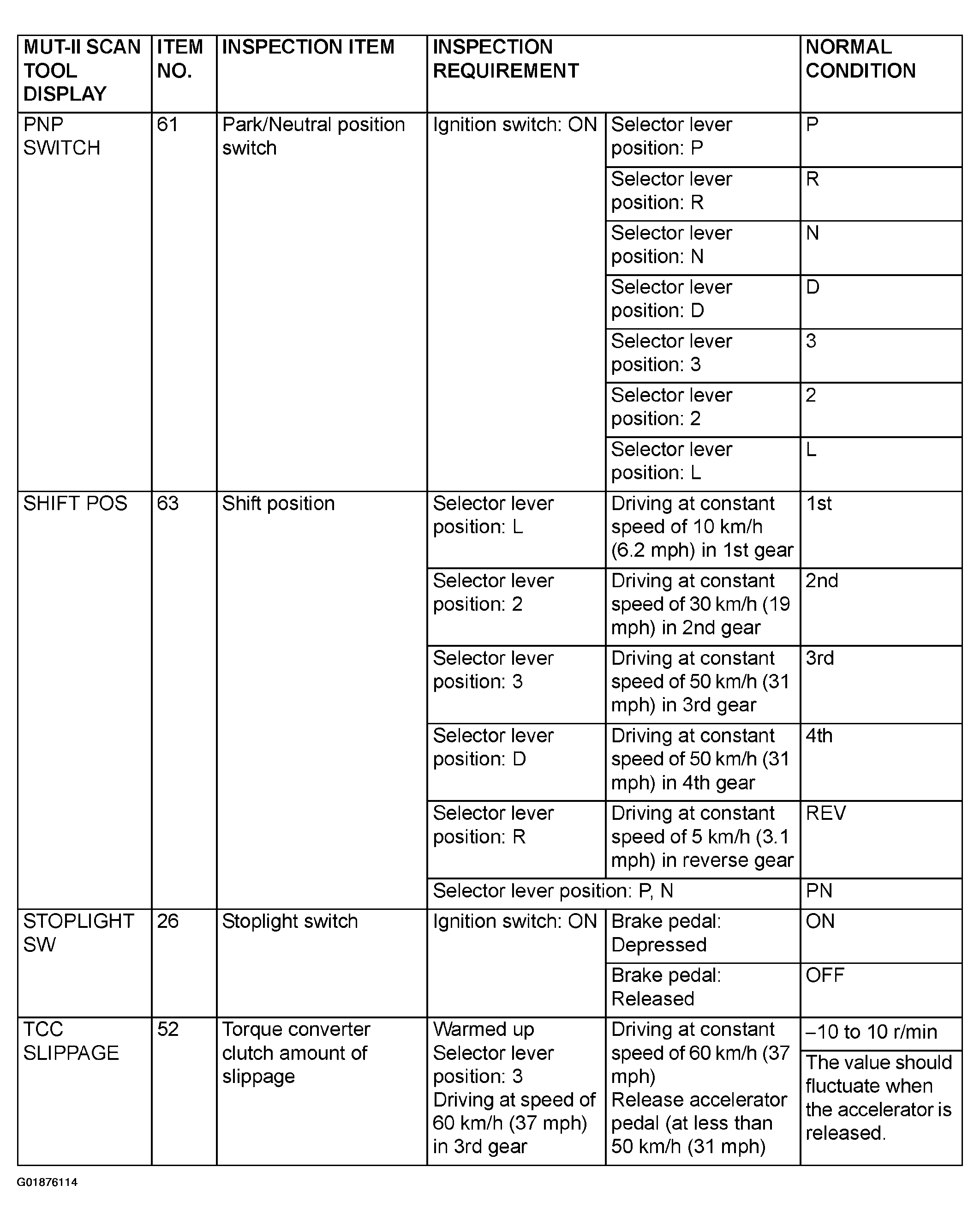

Fig 3: Data List Reference Chart (3 Of 4)
G01876114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

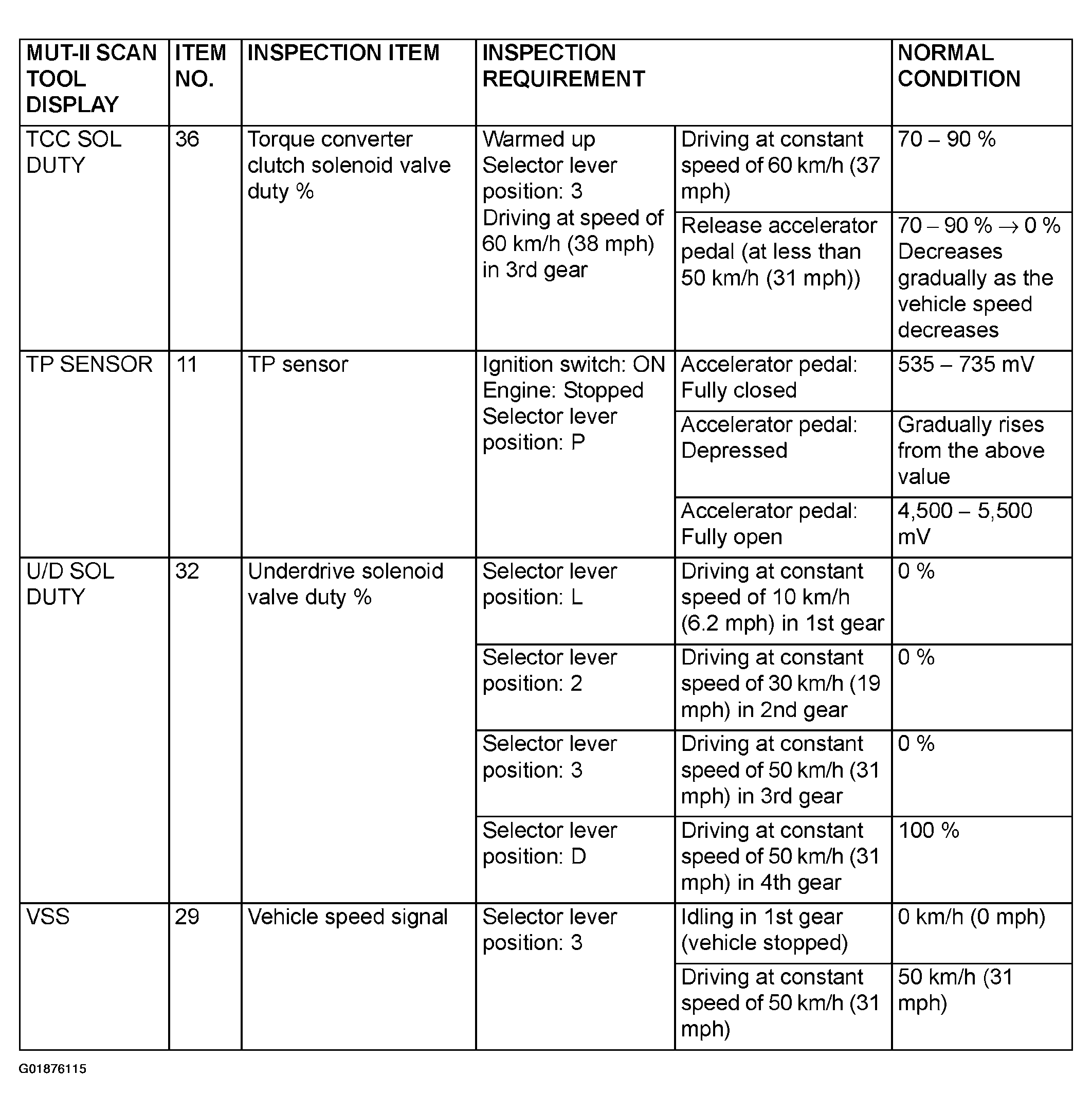

Fig 4: Data List Reference Chart (4 Of 4)
G01876115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
