Inspection Procedure Using An Oscilloscope

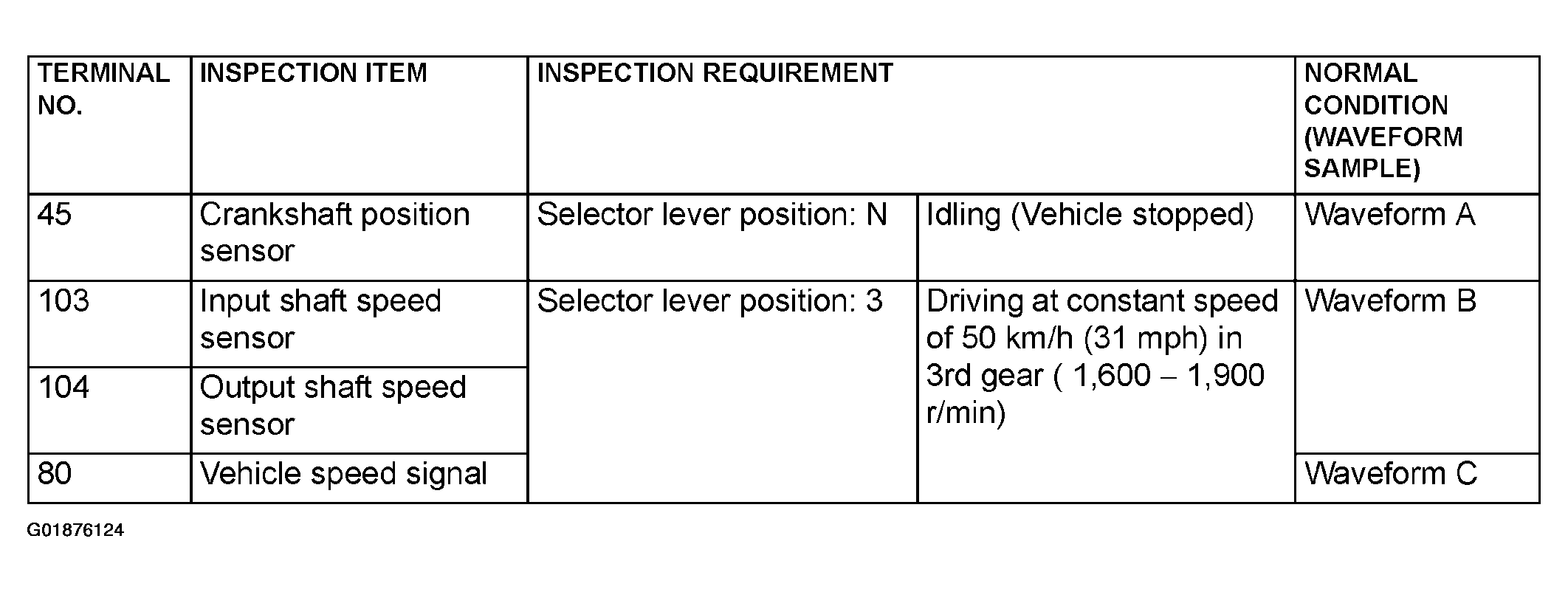

Fig 1: Inspection Procedure Chart (Using Oscilloscope - 1 Of 2)
G01876124Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

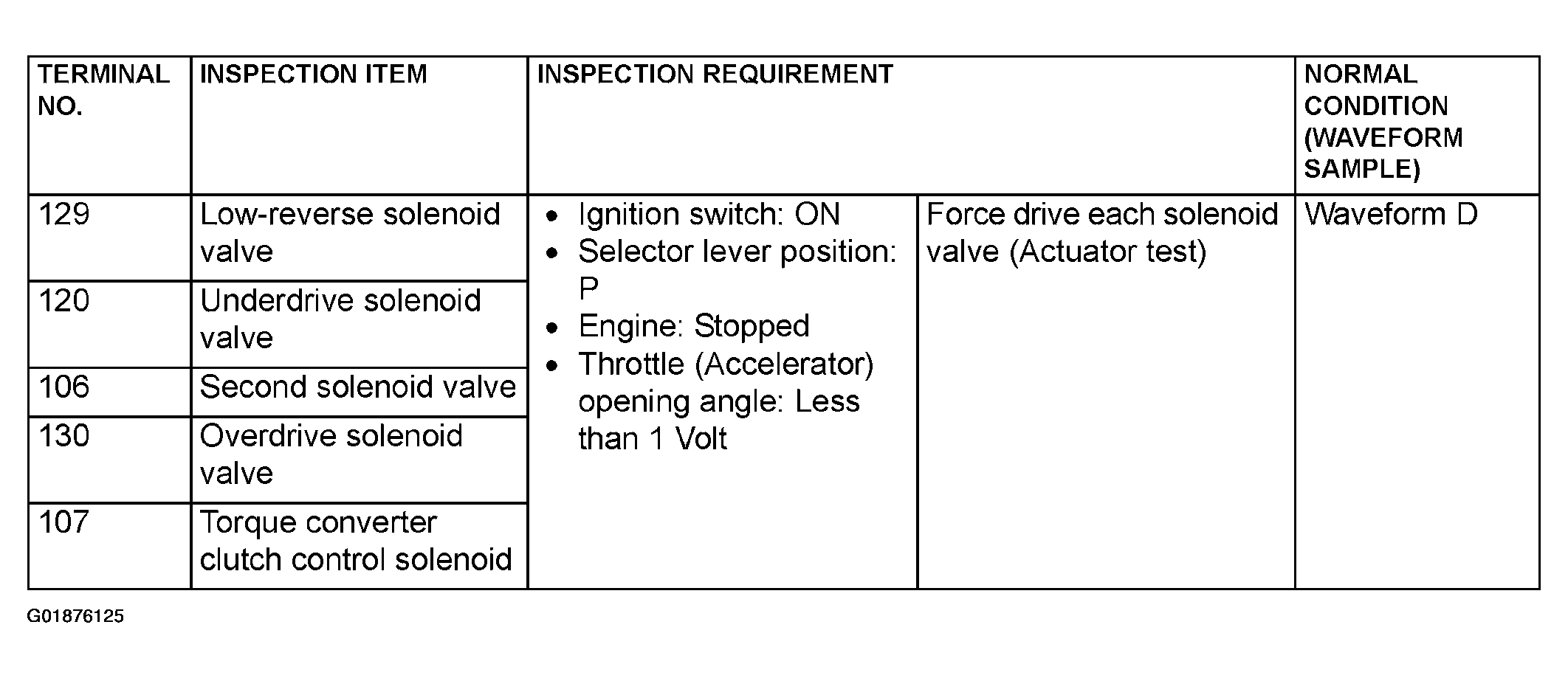

Fig 2: Inspection Procedure Chart (Using Oscilloscope - 2 Of 2)
G01876125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

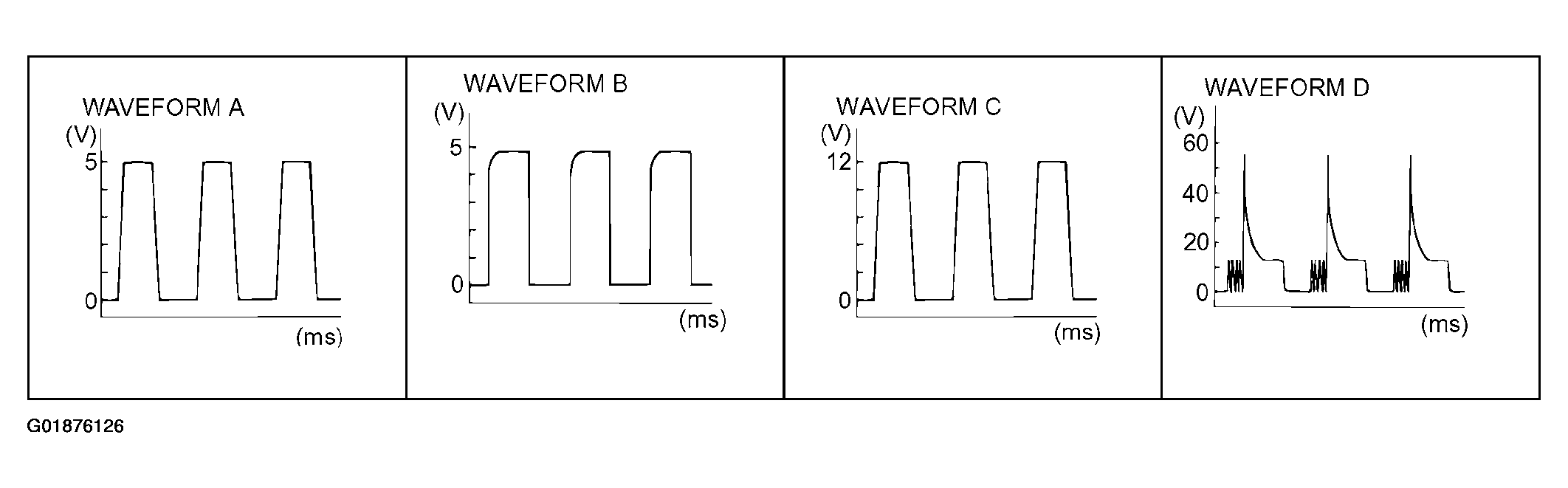

Fig 3: Identifying Various Wave Form Signals
G01876126Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
