DTC 22: Input Shaft Speed Sensor System: Notes

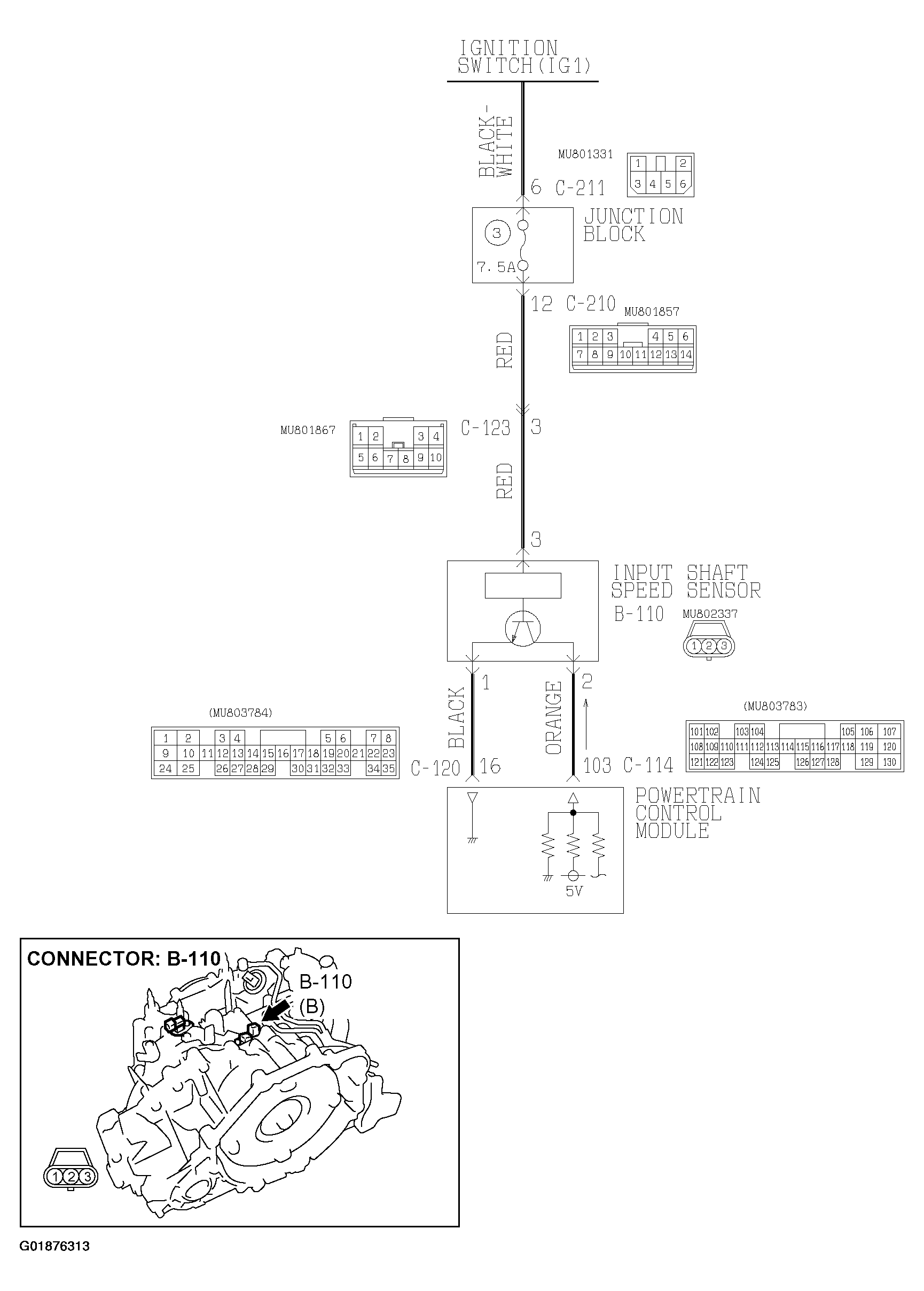

Fig 1: Input Shaft Position Sensor System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

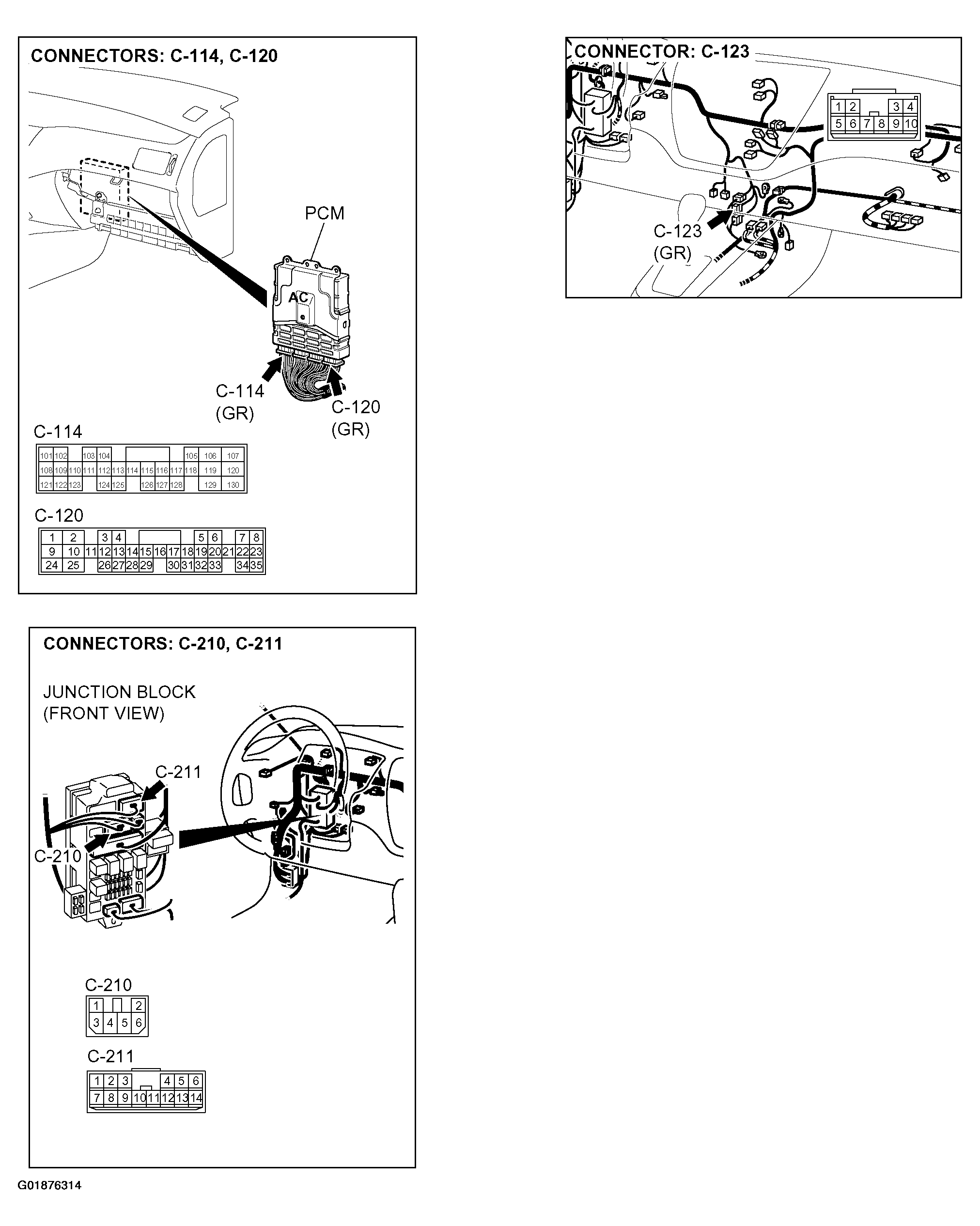

Fig 2: Input Shaft Position Sensor System Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
