DTC 26: Stoplight Switch System: Notes

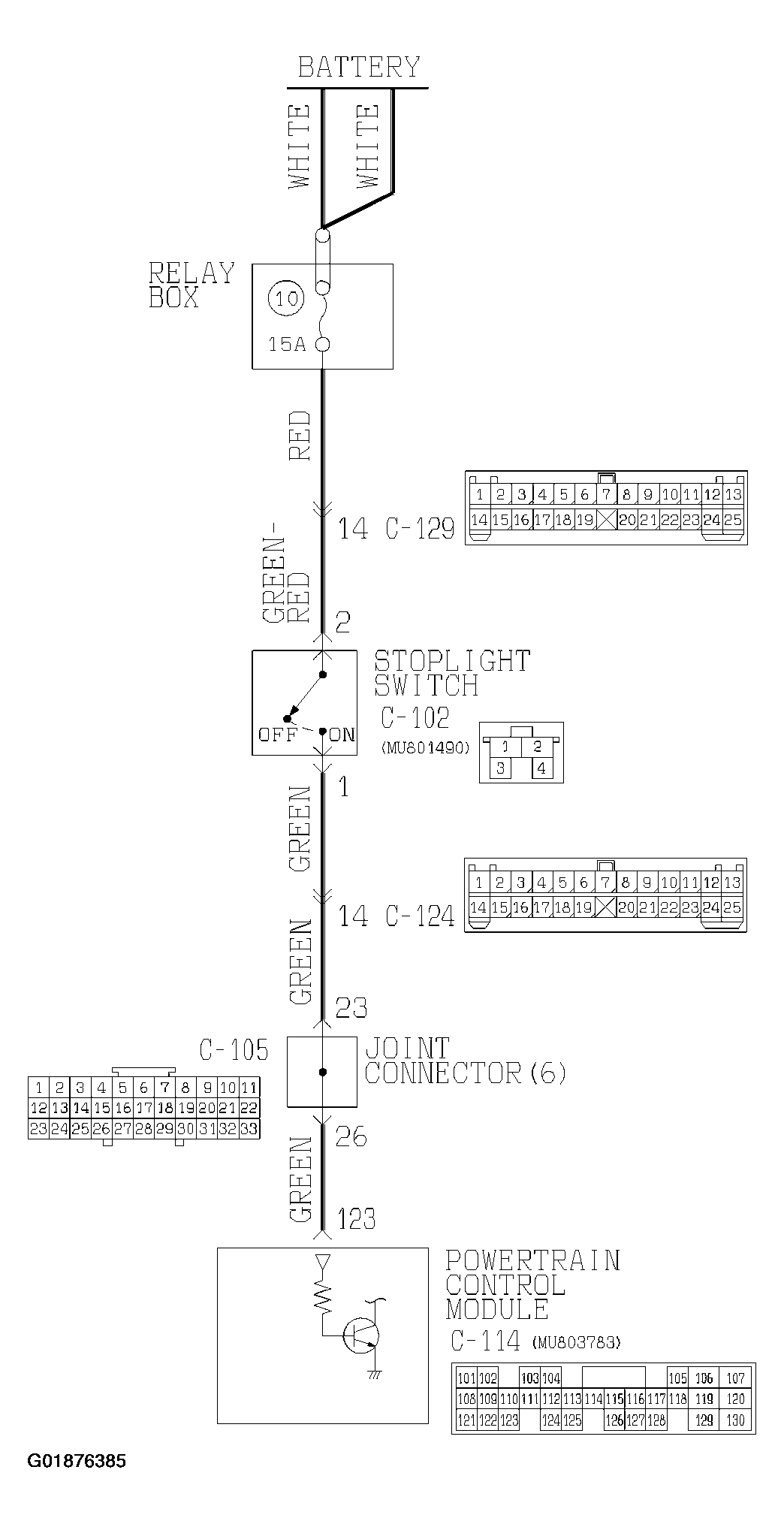

Fig 1: Stoplight Switch System Circuity Diagram
G01876385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

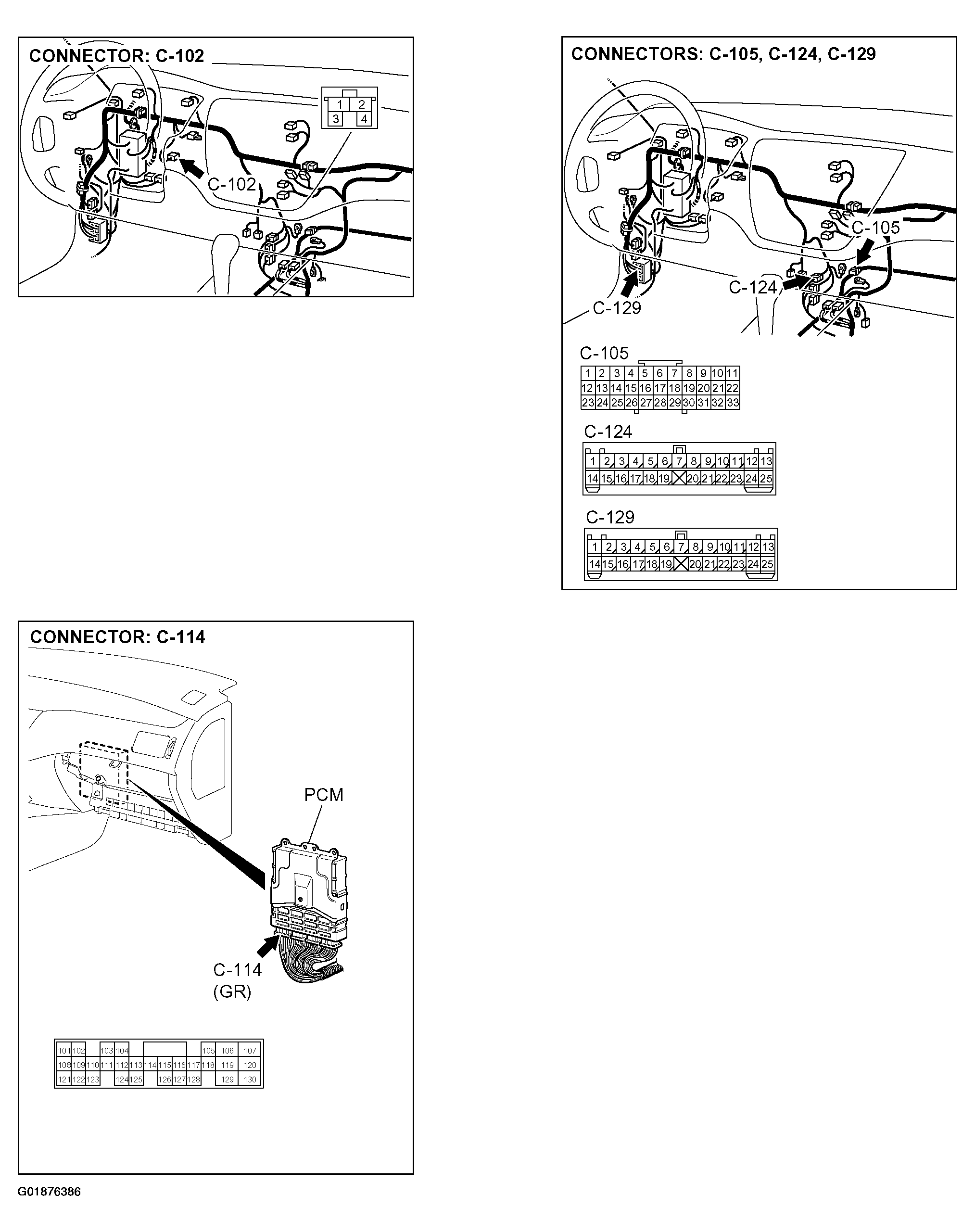

Fig 2: Stoplight Switch System Circuit Connectors
G01876386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
