DTC 31: Low-Reverse Solenoid Valve System: Notes

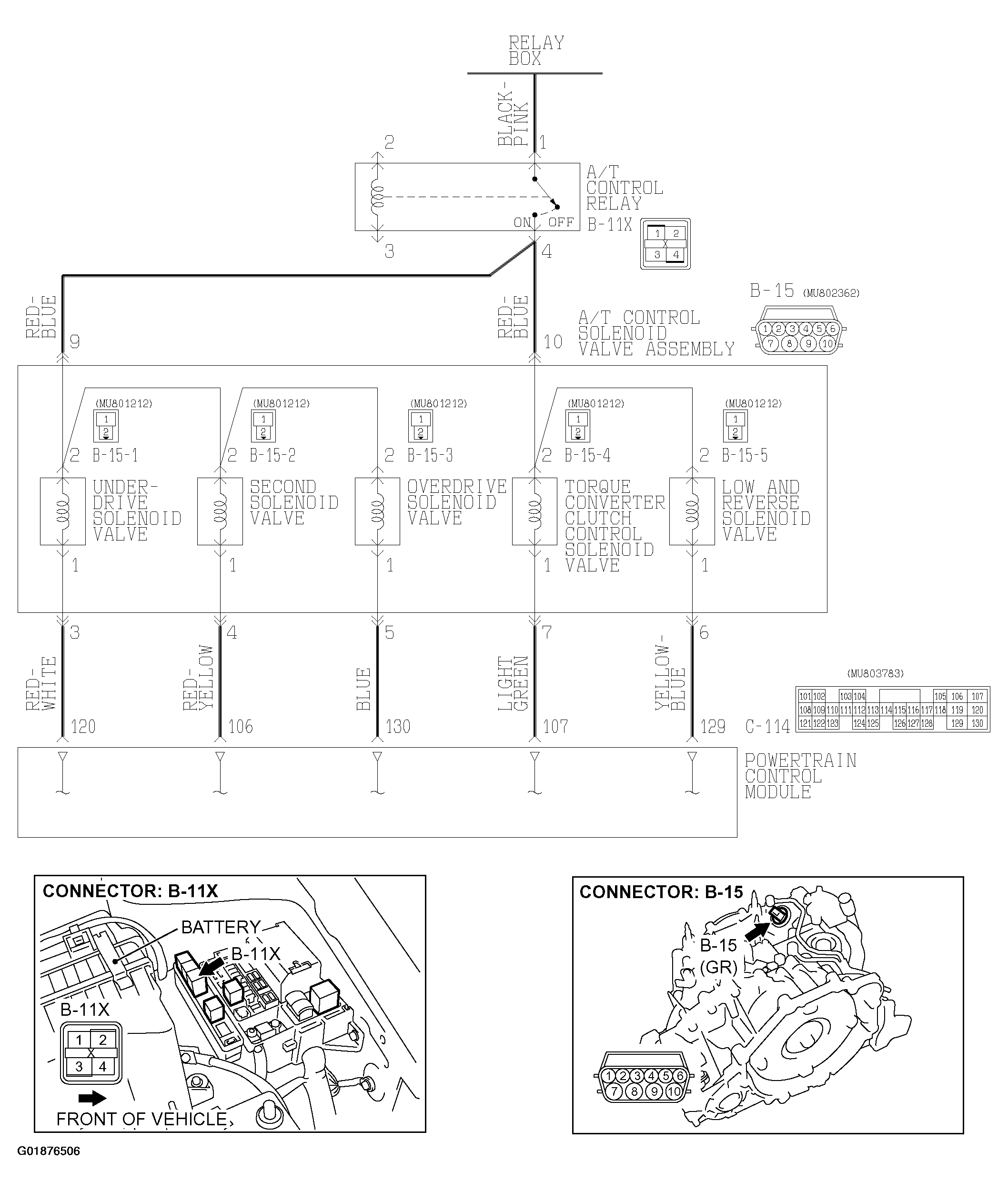

Fig 1: Solenoid Valve System Circuit Diagram
G01876506Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

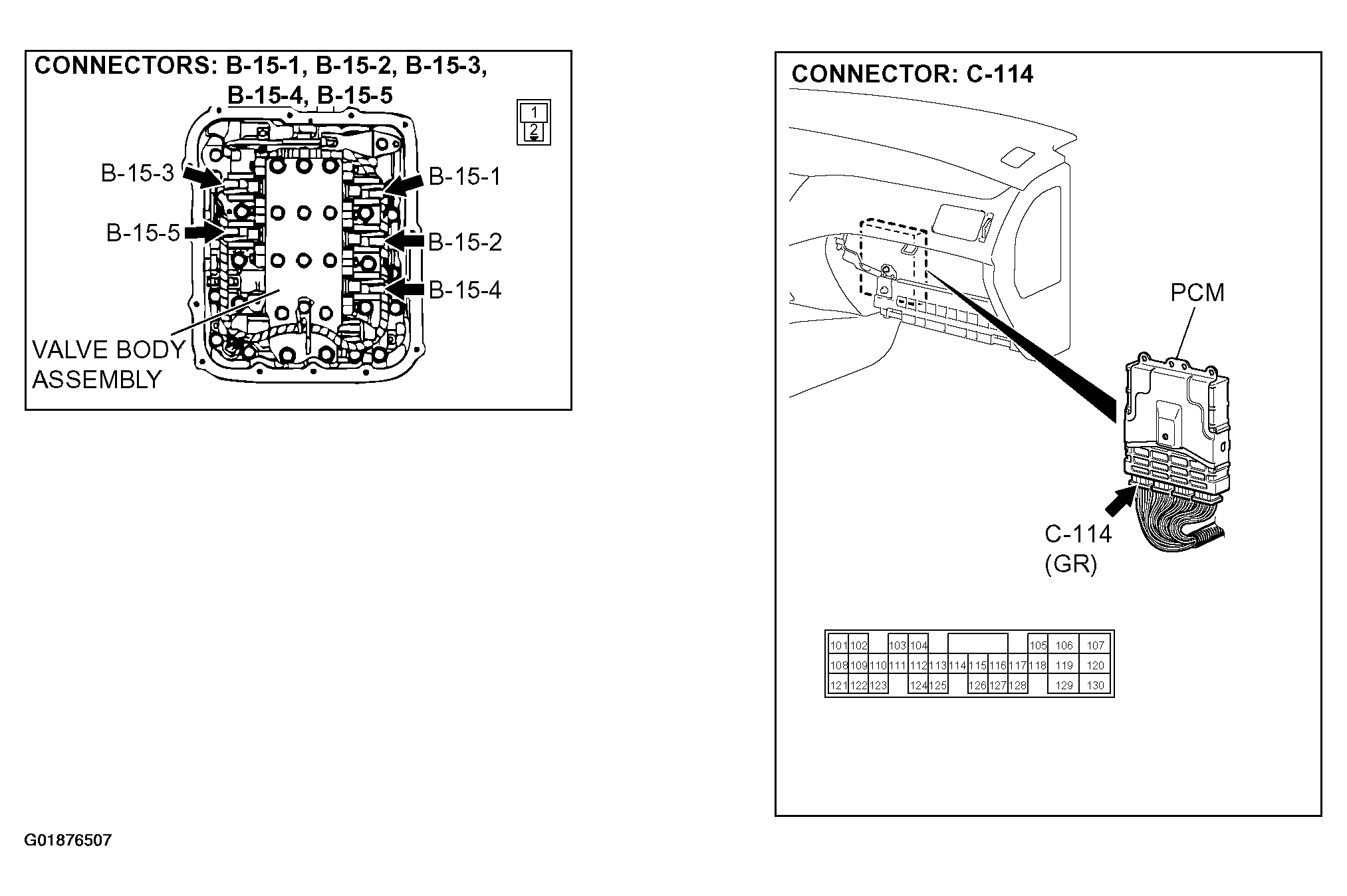

Fig 2: Solenoid Valve System Circuit Connectors
G01876507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
